Diode Dynamic HitchMount LED Pod Reverse Kit for Tundra (2022-2025)


Select Kit Configuration: C1
Price:
Sale price$139.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

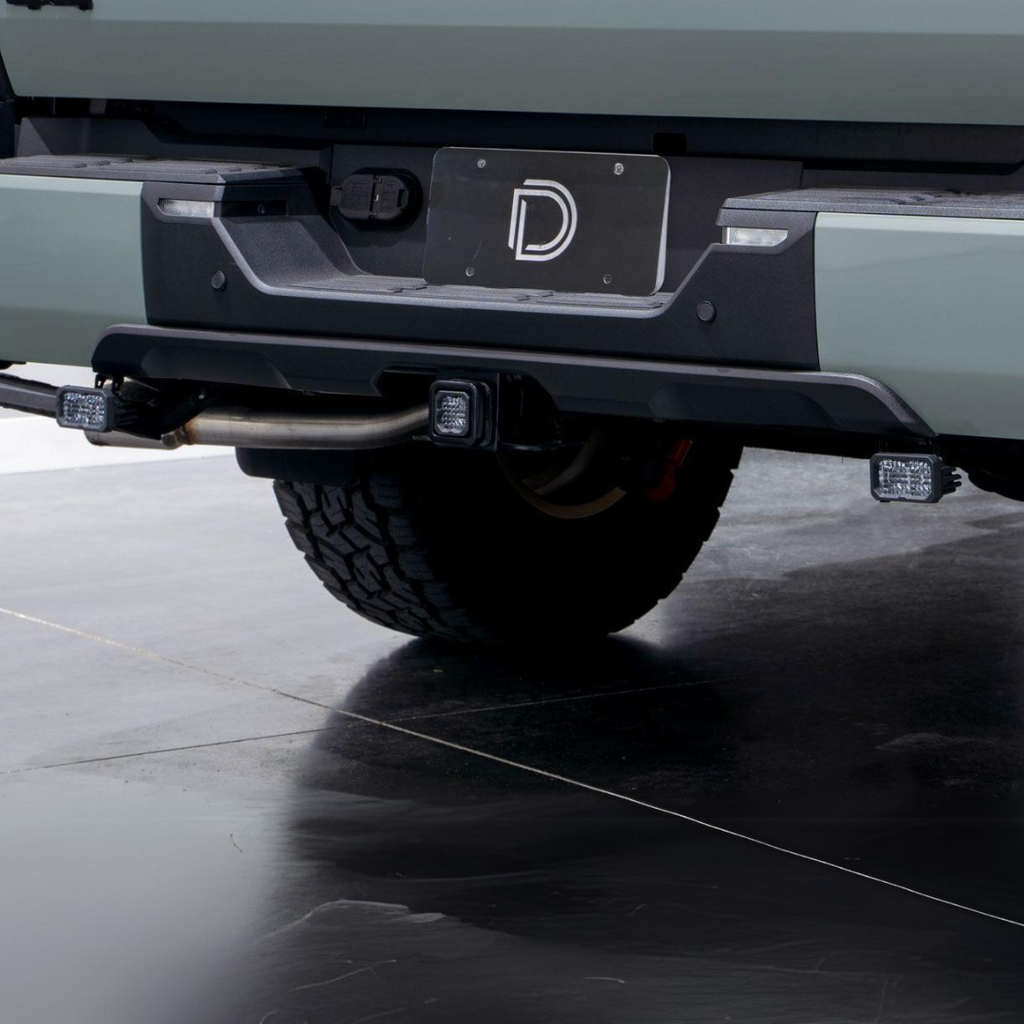

Add significantly more light output when backing up at night with the Stage Series HitchMount Reverse Light Kit! This kit allows you to mount one SSC1 or C1R LED pod in your 2-inch trailer hitch receiver, adding a high-power reverse light, additional running light, and an optional 4th brake light with the C1R option. With the included wiring harness, this kit connects to the Toyota Tundra's factory trailer hitch wiring for simple, everyday operation.

Features

  • Allows you to mount an SSC1 or C1R LED pod in the Toyota Tundra trailer hitch receiver.
  • Adds a powerful reverse light, 4th brake light, and additional running light.
  • Simple 5-minute installation, with no need for custom wiring or routing wires.
  • Optional SafetyStrobe brake light strobing.
  • Designed and assembled in USA.

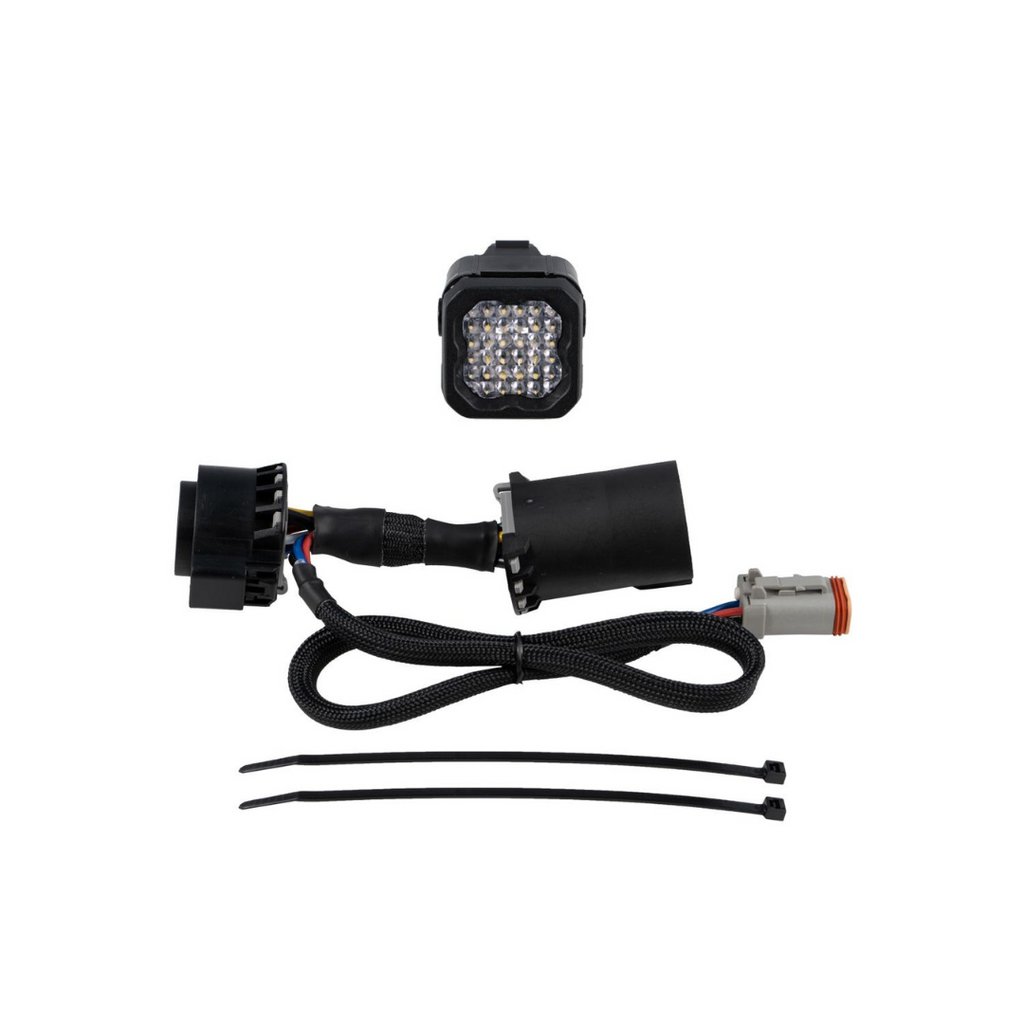

In the Box:

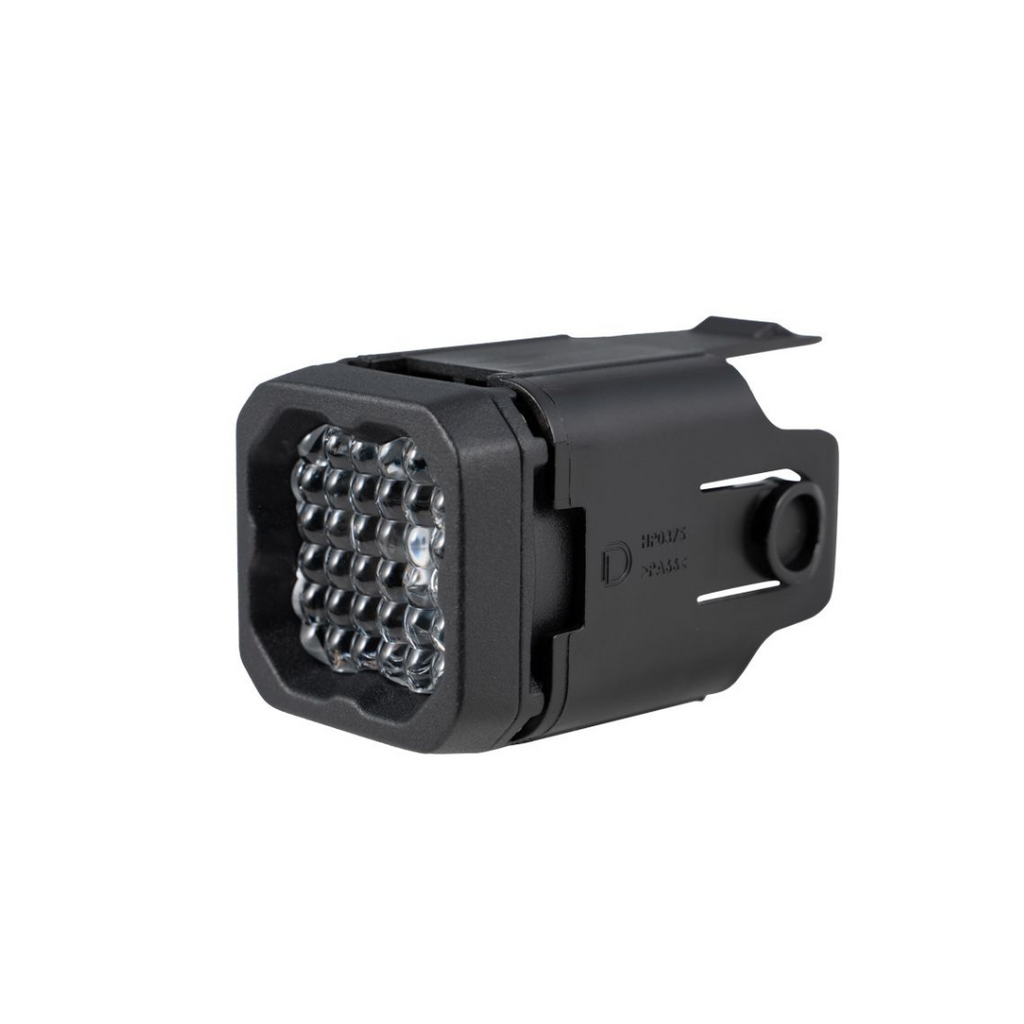

  • One (1) SSC1 Sport or C1R HitchMount LED Pod
  • One (1) 7-Pin trailer single output harness
  • Two (2) Zip ties
  • Installation guide

Fitment

NOTE: Newer trucks with trailer management systems monitor the power draw on the trailer connector in order to automatically modify vehicle settings when a trailer is connected. Depending on the year and make of your vehicle, the HitchMount LED may interact with this system if equipped.

Toyota: No trailer is detected, no warning messages.

NOTE: If you would like to use a locking trailer pin to install this kit instead of the snap-fit pins, you can do so with a quick modification. Watch the video. This product is not intended to replace original factory tail lamps. Please ensure your trailer hitch has an open back before ordering.

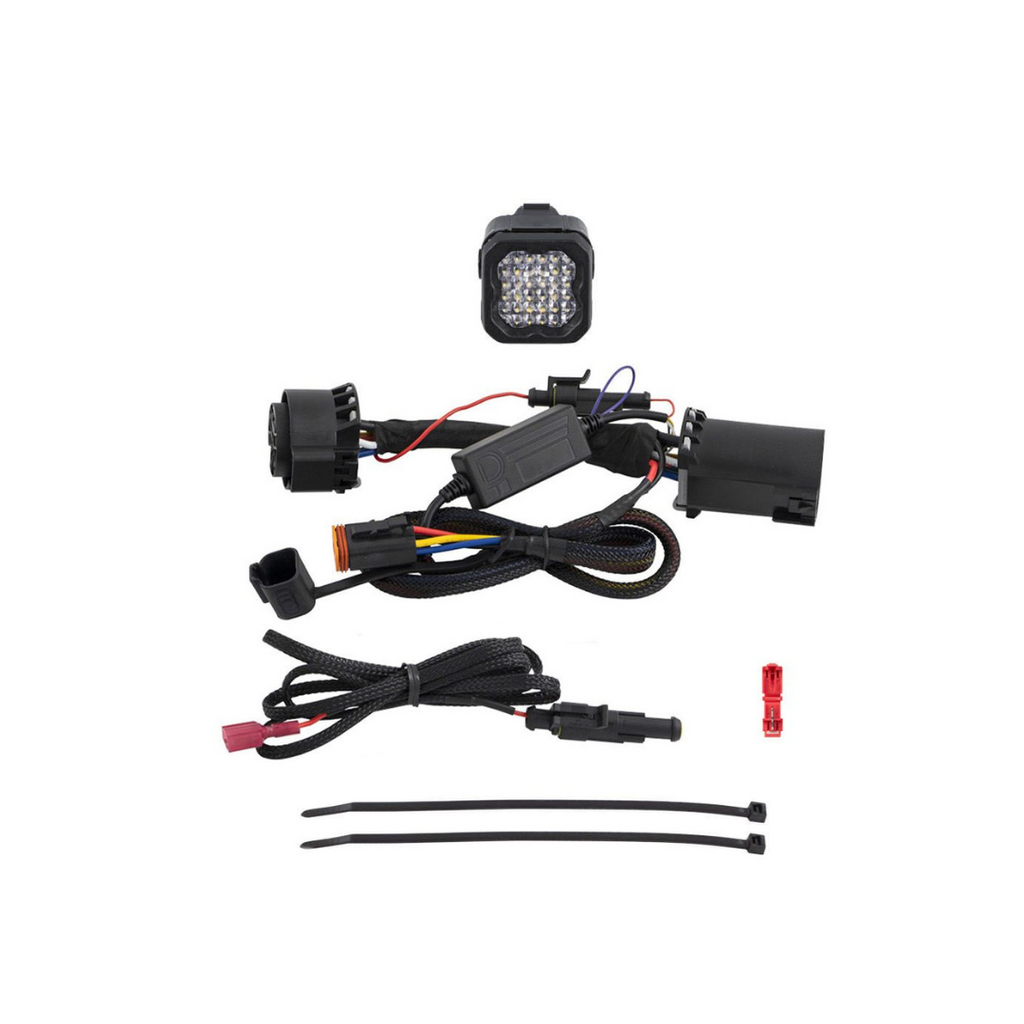

The C1R HitchMount LED Pod kit now includes a T-tap. For installation instructions, watch this video!

Application: Backup/Reverse Light Make: Toyota Model: Tundra Years: 2022, 2023, 2024, 2025
Specifications
  • Datasheet(s) (click to download): SSC1 Sport White Standard
  • Color Temp (CCT): 6000K
  • Power (watts): SSC1 Sport: 12.8
  • Operating Voltage: 9-16V
  • Current (amps @ 12.8V): SSC1 Sport: 1
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Cree XP-L HI

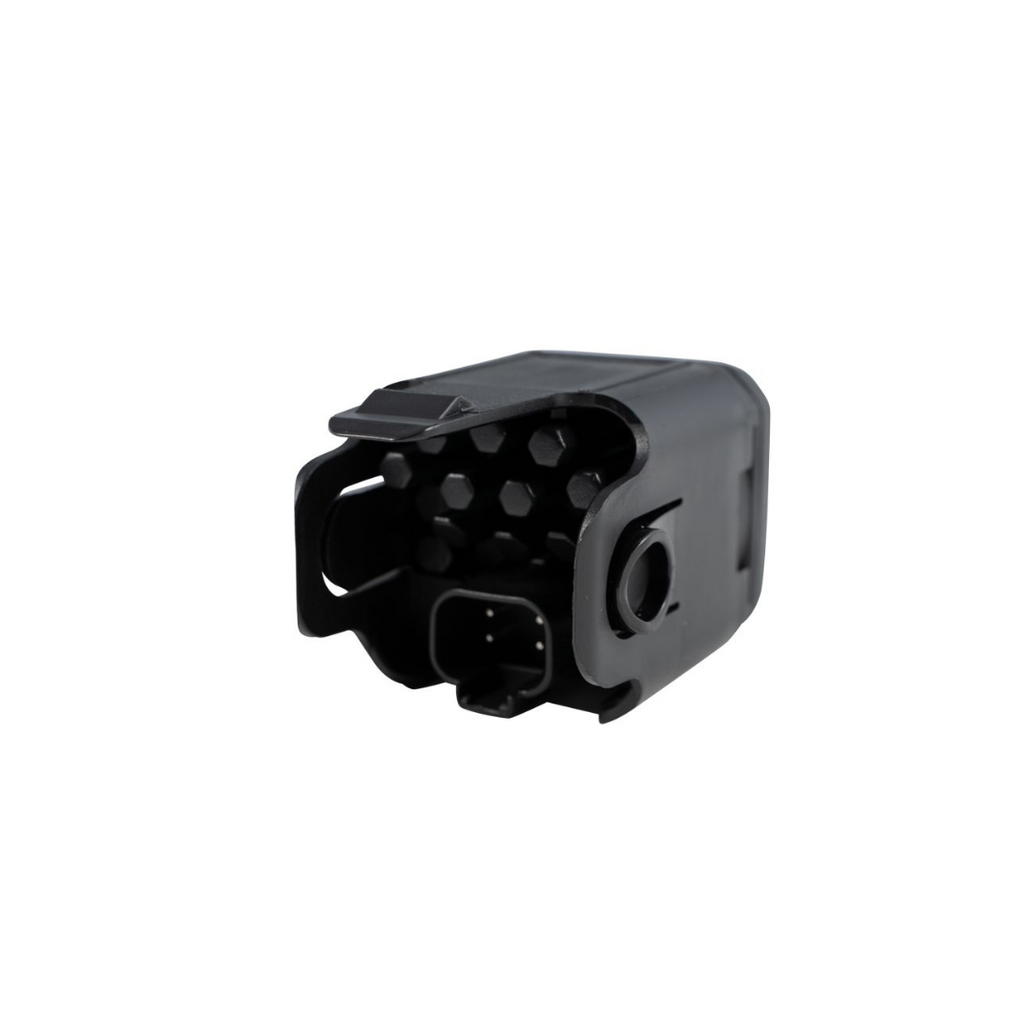

  • Connector(s): Deutsch DT Input
  • Driver Features: Constant Current
  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
  • Cooling: Passive, Pin-Fin heatsink
  • Compliance Ratings: SAE J575 Durability Test
  • Intrusion Ratings: IP67 Weatherproof
  • Unit Weight (lb): 0.35
  • Product Weight (lb): SSC1: 0.65 C1R: 0.70
  • Shipped Weight (lb): 1.75

Installation

NOTE: If you would like to use a locking trailer pin to install this kit instead of the snap-fit pins, you can do so with a quick modification. Watch the video.

  • Installation Time: 5-10 minutes
  • Tools Needed: Basic Toolset
  • Modification: None
  • Installation Guide: Click to download

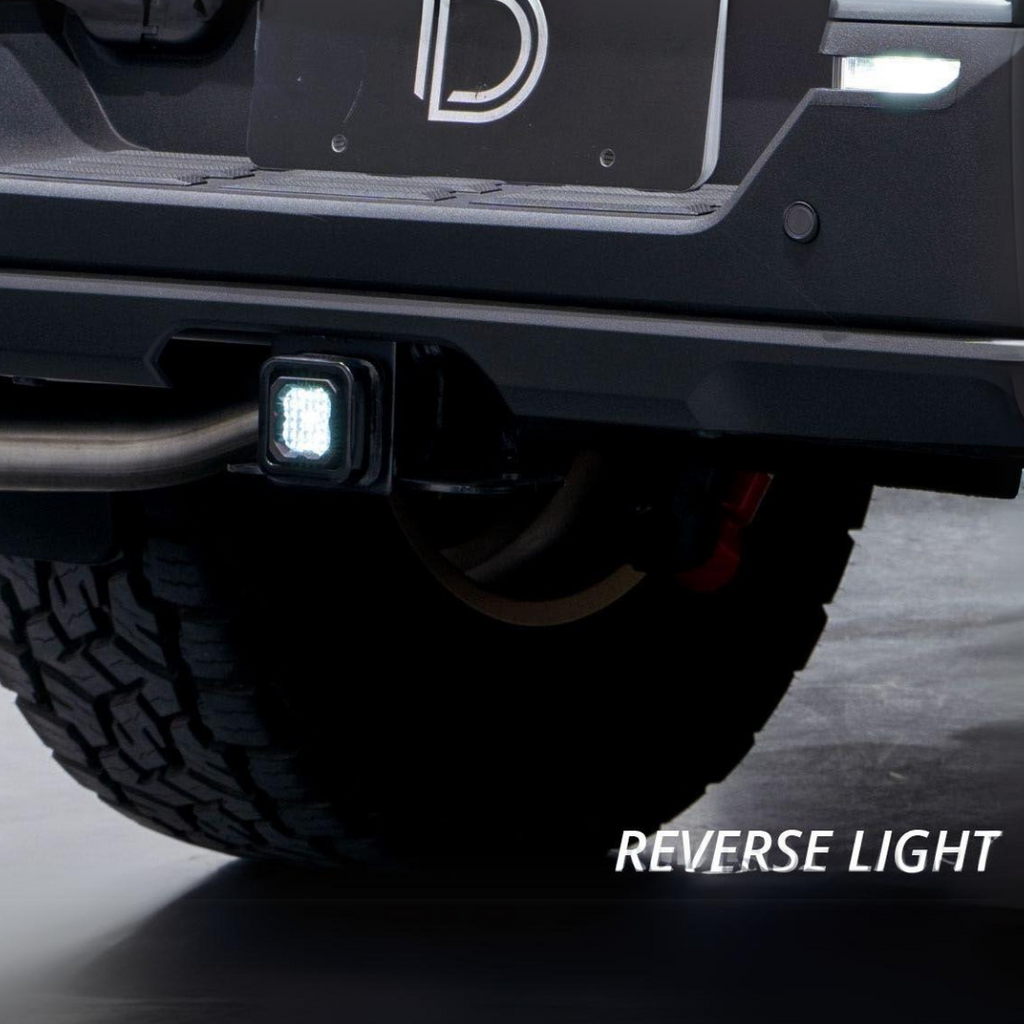

Brighter Backup. Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing our patented TIR optics with high-powered LEDs, the SSC1 and C1R included in this kit provide an additional reverse light that's several times brighter than stock bulbs alone. Plus, they automatically come on when the vehicle is put in reverse!

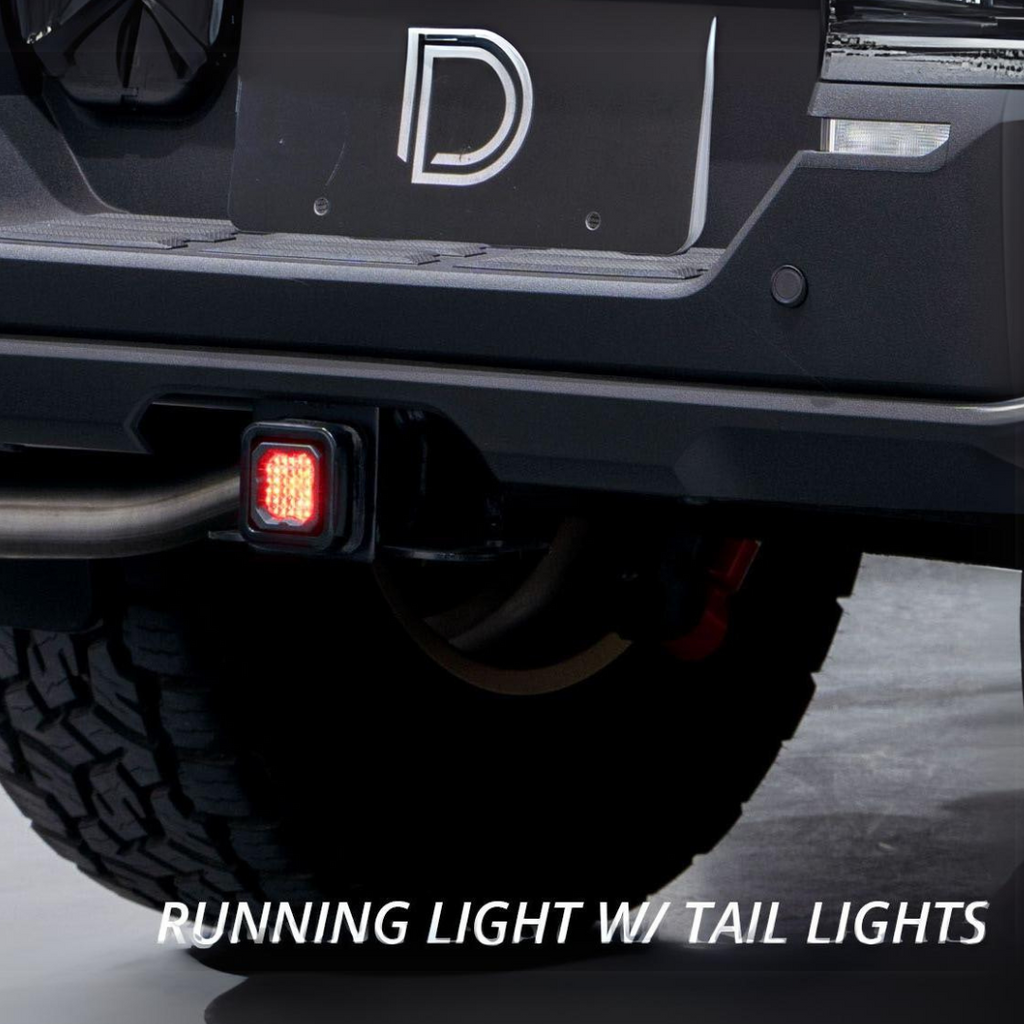

Additional Running Light. The Stage Series LED pods included with this kit feature a distinctive red backlight that can be used as an additional running light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

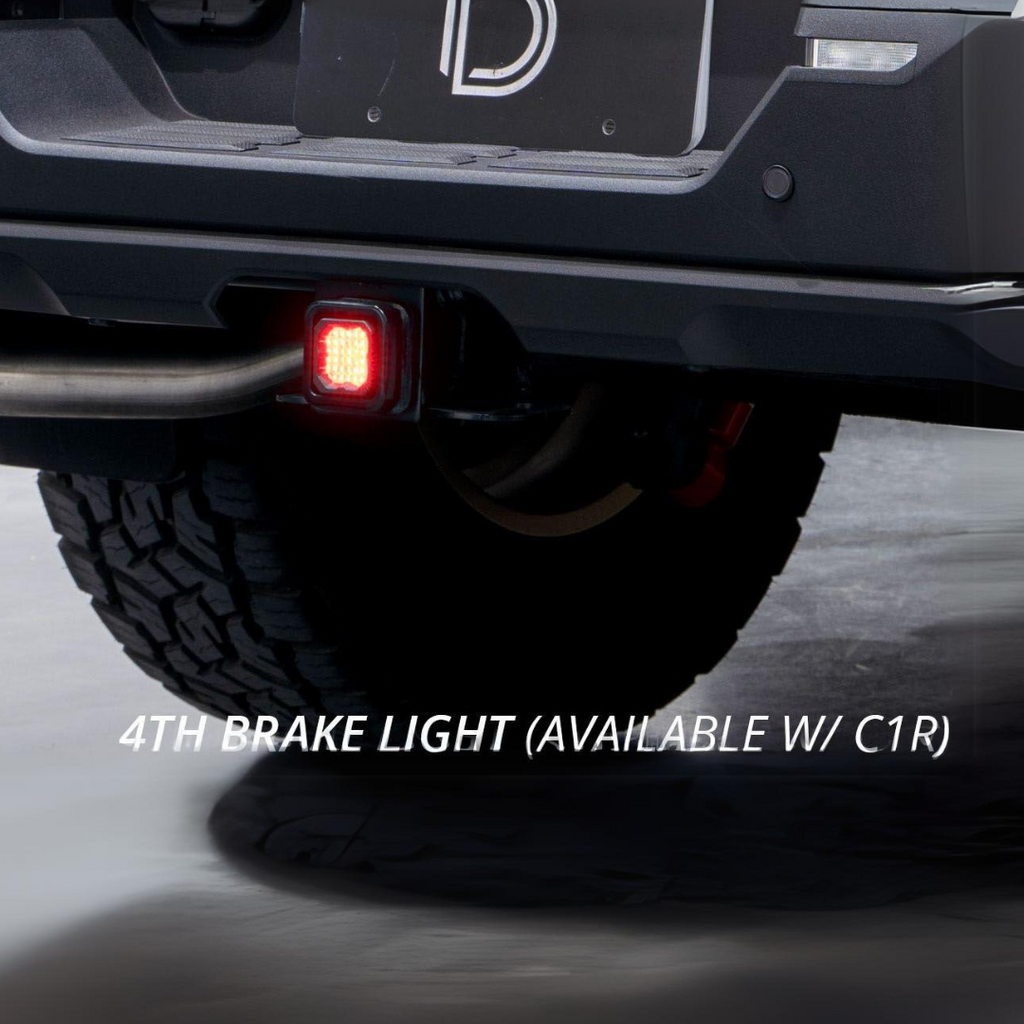

SafetyStrobe 4th Brake Light. The C1R option features a high-power red function to serve as a powerful 4th brake light, along with the low-power running light. The high-power red functionality activates anytime you apply your brakes, adding a 4th brake light to your Tundra.

The C1R also features optional brake light strobing, which can be activated in 15-second intervals. By default, the C1R will flash three times when the brake lights are initially applied, for greater visibility. The SafetyStrobe feature can be easily disabled if desired.

Everyday Operation. This kit is completely plug-and-play with all 7-pin trailer connectors. The included harness plugs right into your factory trailer hitch wiring for easy installation and operation. The kit operates as an additional red running light with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The high-power 4th brake light feature included with the C1R will activate anytime you apply your brakes. If you would like to have override functionality to manually turn on the reverse light anytime, you will need to purchase the universal backup harness.

If your trailer connector is not 7-pin, this kit will still work for you but will require slight modification to the harness.

This product is an aftermarket modification and is not affiliated with or endorsed by Toyota or any other vehicle manufacturer. The user/installer assumes all liability in using this product.
