Diode Dynamics Hood LED Lightbar Kit for Jeep JL Wrangler (2018-2025)

Save 20%

Select Kit: One 50" Light Bar + Brackets
Select Optic and Color: White Combo
Price:
Sale price$631.96 Regular price$789.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

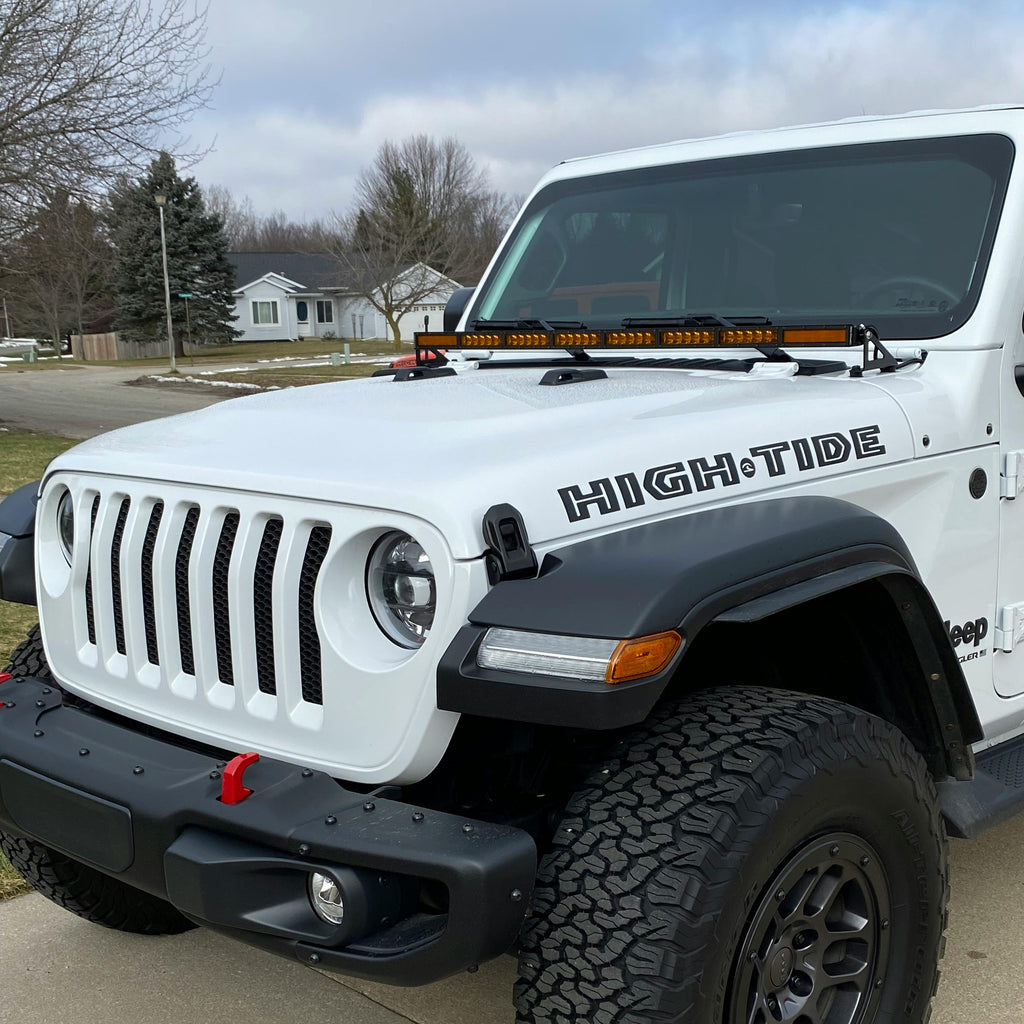

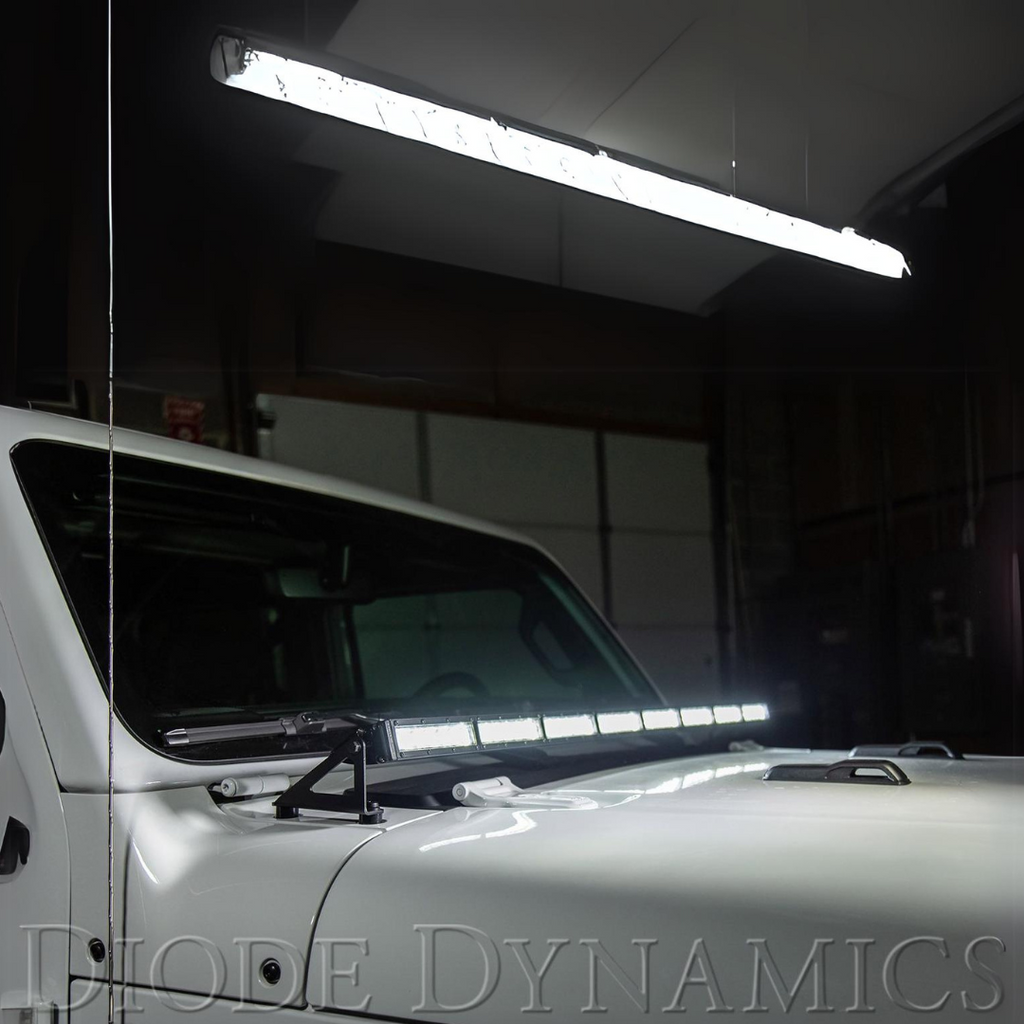

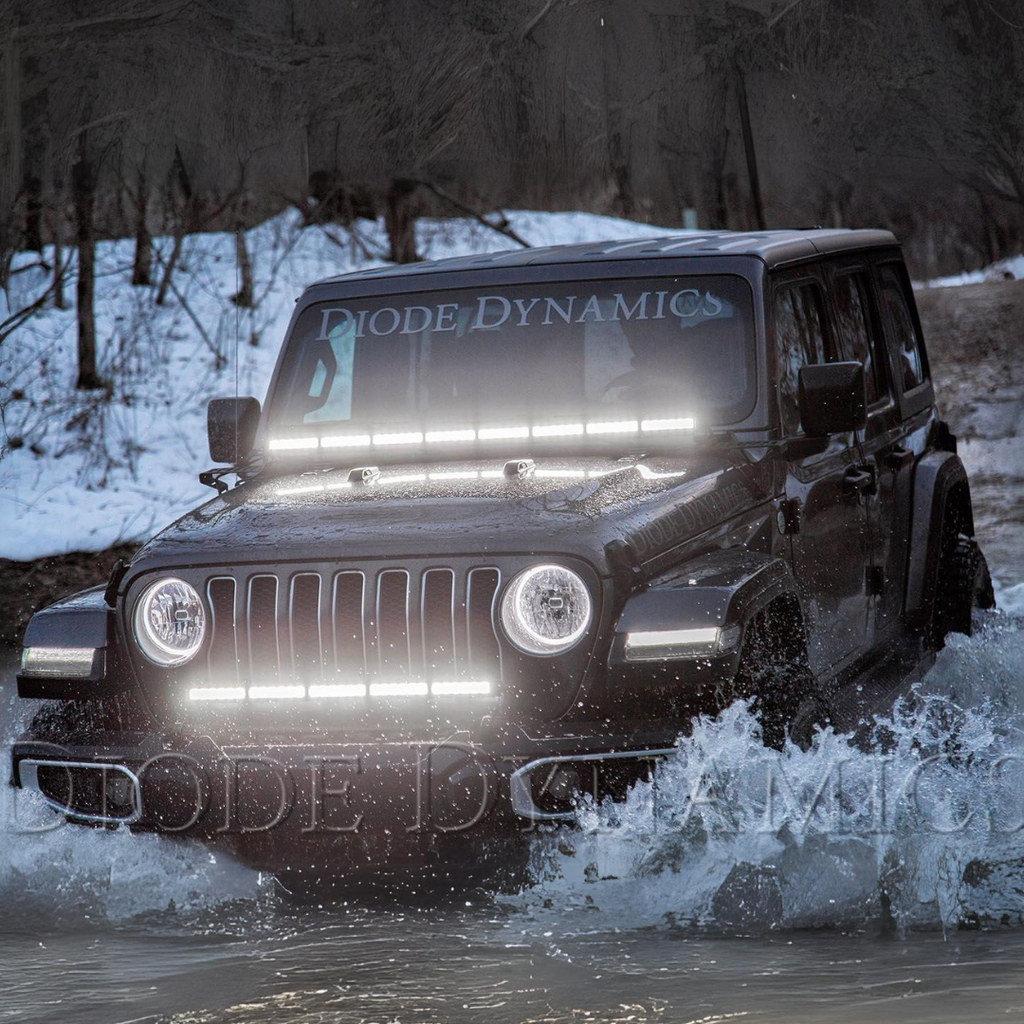

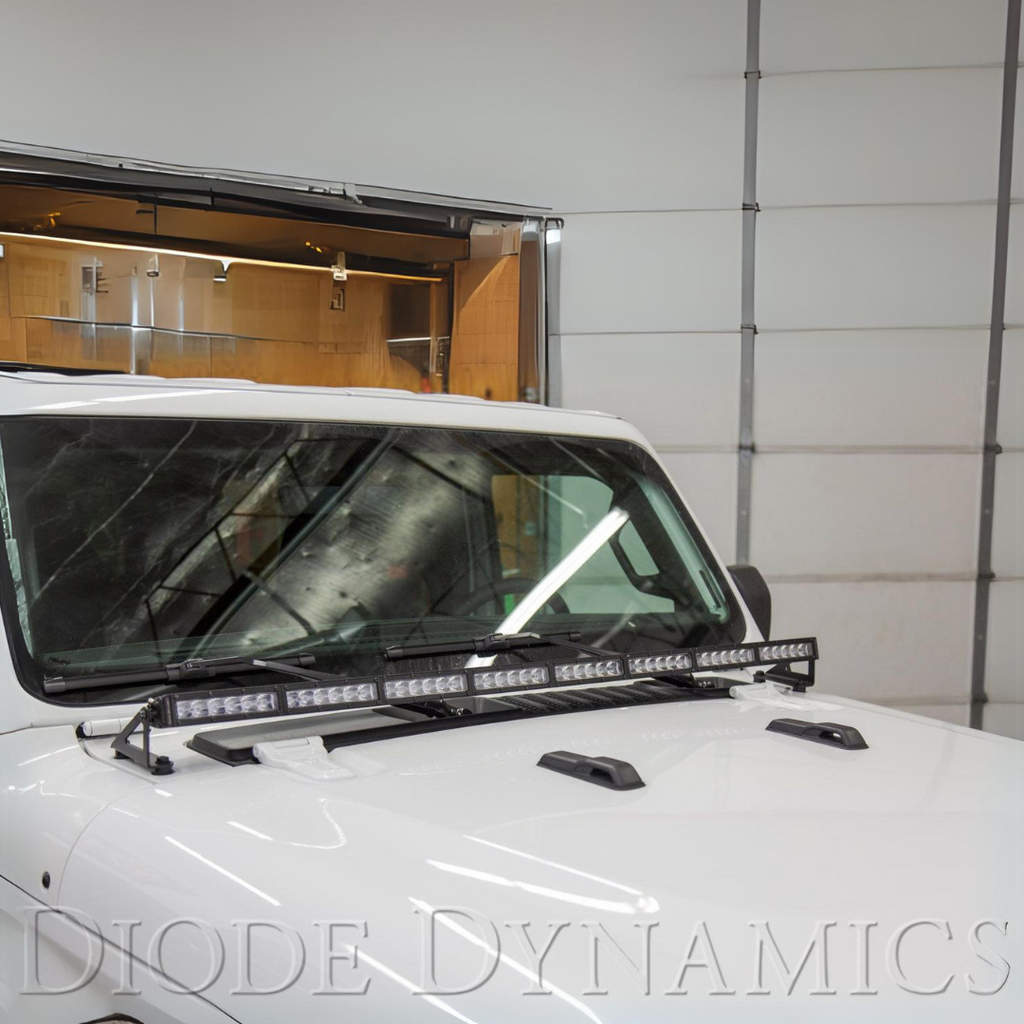

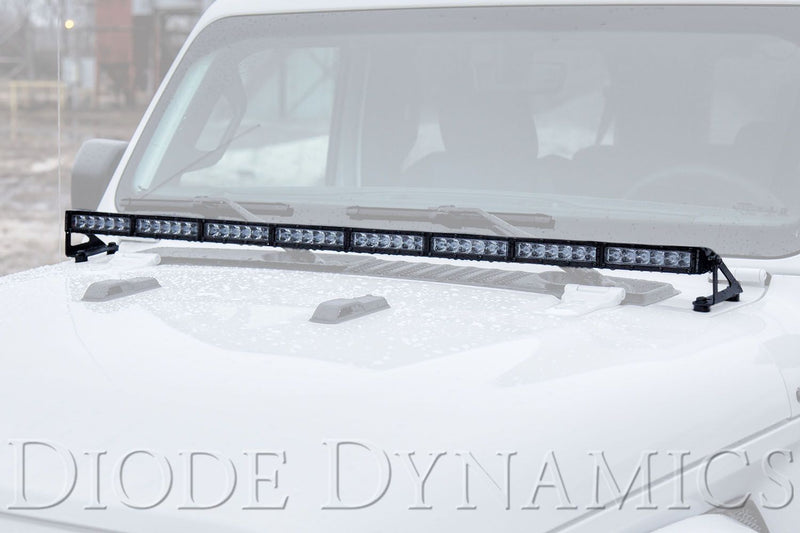

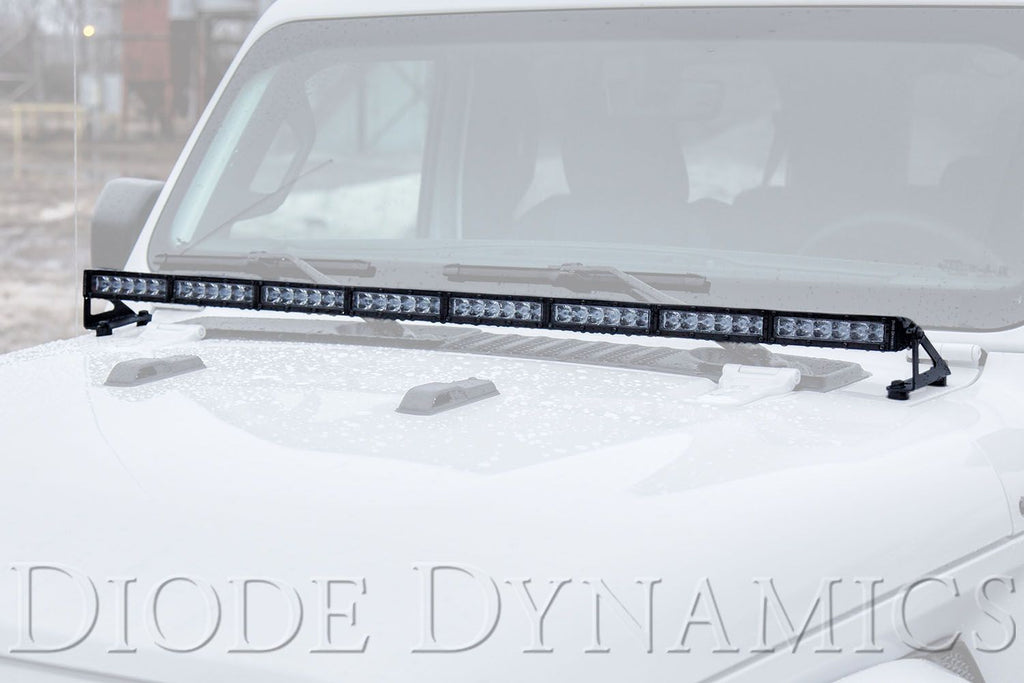

Enhance your 2018–2025 Jeep JL Wrangler's visibility with the Diode Dynamics Hood LED Lightbar Kit. This kit allows for the seamless installation of a 50-inch light bar across your vehicle's hood, utilizing factory mounting points for a straightforward, no-drill setup.

Features

  • Vehicle-Specific Design: CAD-engineered brackets ensure a perfect fit for the 2018–2025 Jeep JL Wrangler, maintaining the vehicle's aesthetic and structural integrity.

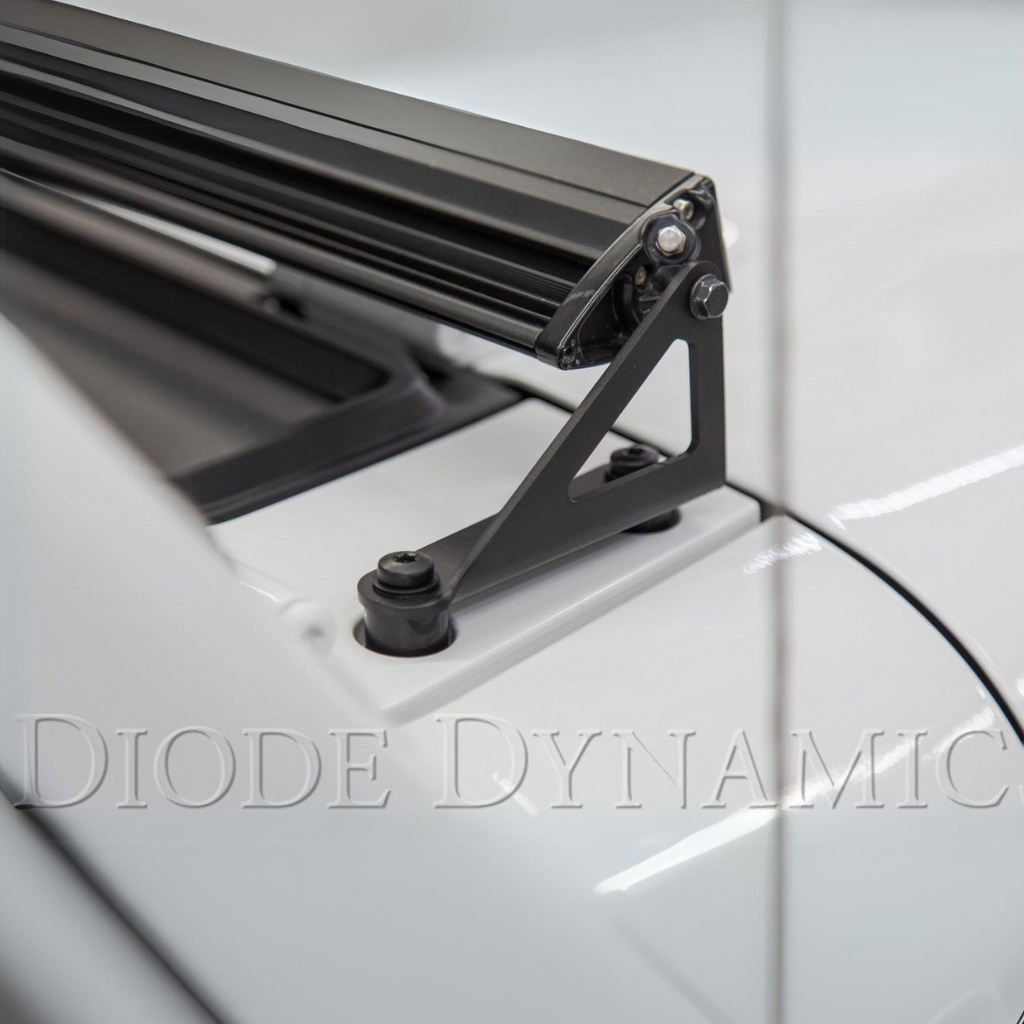

  • Low-Profile Mounting: The L-shaped brackets are designed to minimize wind noise and avoid obstructing the driver's view or windshield wiper nozzles.
  • Durable Construction: Crafted from powder-coated steel, the brackets offer robust durability and resistance to the elements.
  • OEM-Style Hardware: Includes automotive-grade hardware with integrated washers and a factory-matching finish, ensuring a secure and professional installation.
  • Auxiliary Switch Integration: The kit comes with an OEM auxiliary switch adapter wire, allowing seamless control through the factory-installed auxiliary switch bank. For vehicles without this feature, a Heavy Duty Single-Output Wiring Harness is provided for direct battery connection.
  • Optimized Lighting Performance: Designed to work with Diode Dynamics' Stage Series light bars, featuring custom-engineered TIR optics that project light in a highly functional and focused beam pattern, reducing hood glare.

Beam Pattern

  • The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 50" Combo Light Bar features six driving lenses in the middle with two flood lenses on the outer edges.

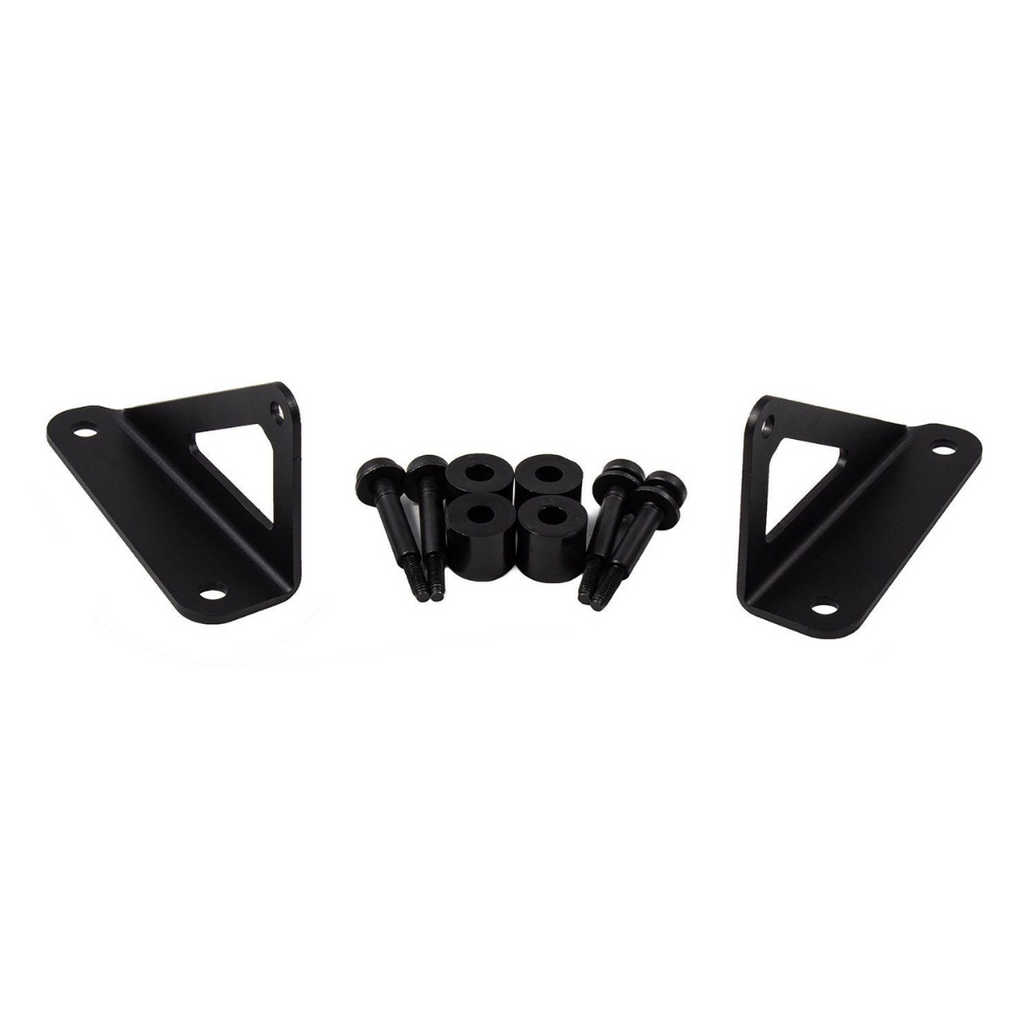

Brackets Only Includes:
  • Two (2) Application-specific hood brackets
  • Four (4) Delrin spacers
  • Four (4) OEM-style automotive grade bolts
  • Installation Guide

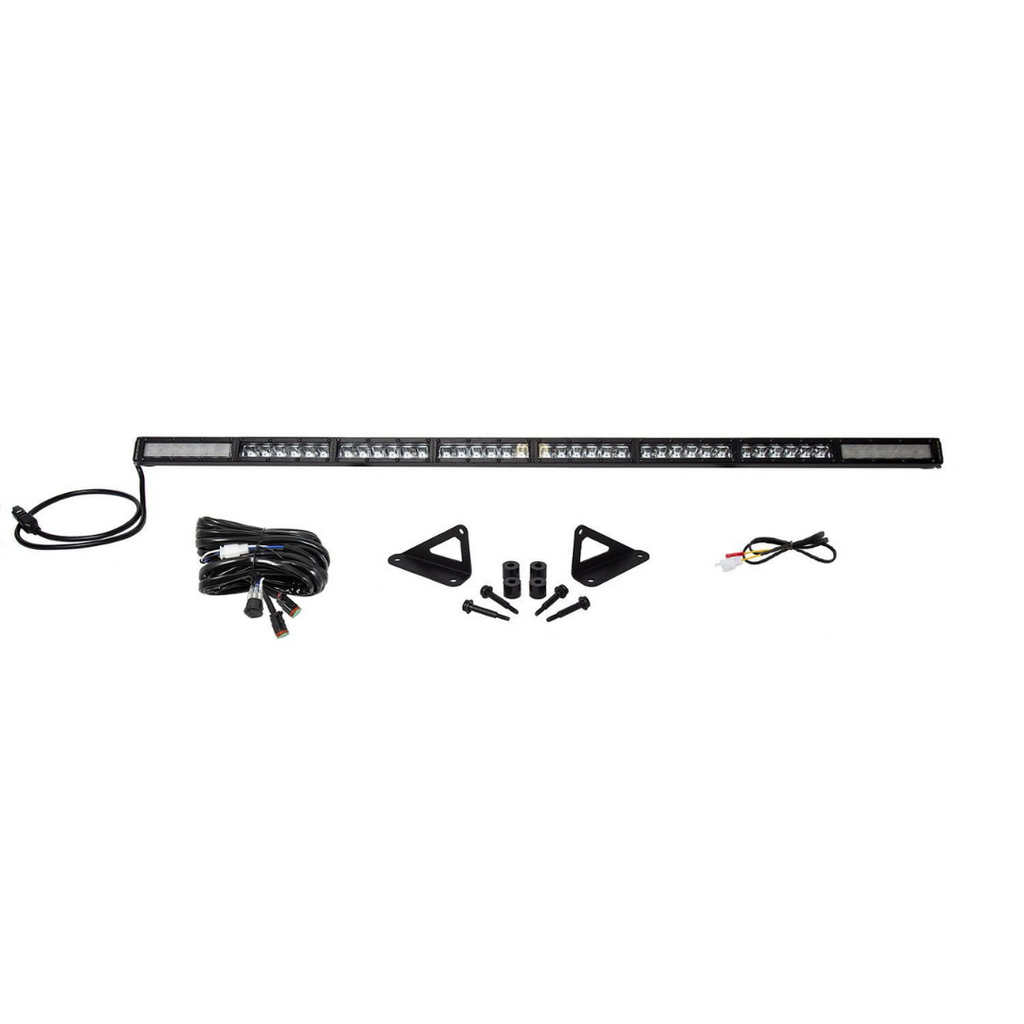

Hood Bracket Light Bar Kit Includes:
  • Two (2) Application-specific hood brackets
  • One (1) SS50 Stage Series 50" Light Bars
  • One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
  • One (1) Aux Switch Adapter Wire
  • Four (4) Delrin spacers
  • Four (4) OEM-style automotive grade bolts
  • Installation Guide

Fitment

NOTE: This kit is compatible with the Sport, Sport S, Sahara, and Rubicon trim levels, but is not compatible with the Mojave trim level or the 392.

  • Make: Jeep
  • Model: Wrangler
  • Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
  • Electrical Compatibility: No electrical issues (tested and confirmed)

Installation

  • Bracket Kit Installation Guide: Click to download
  • Installation Time: 20-30 minutes
  • Tools Needed: Basic Toolset
  • Modification: None
  • Installation Guide: Click to download

Specification

  • Color Temp (CCT): 2000K, 6000K
  • Beam Angle: Driving, 20°x8°, Combo (Driving and Flood), Flood, 80°x50°
  • Power (watts): 259
  • Operating Voltage: 9-24V
  • Current (amps @ 14V): 18.5
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Luxeon Z ES
  • Connector(s): Deutsch DT Input
  • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
  • Cooling: Passive, heatsink
  • Intrusion Ratings: IP68 Waterproof
  • Product Dimensions (in): 49x3x1.63
