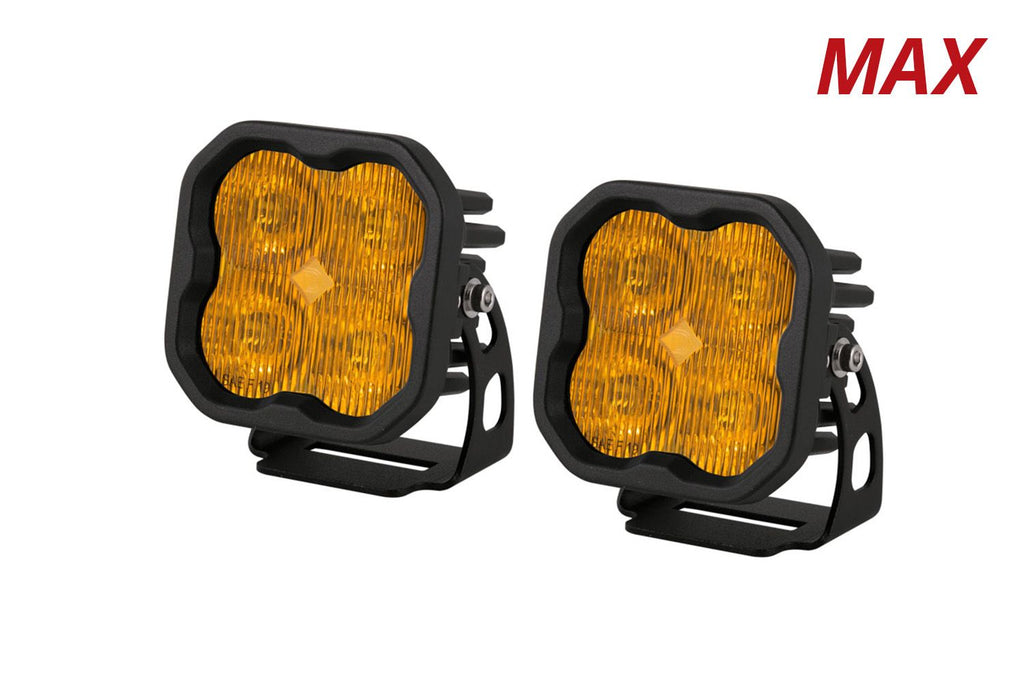

Diode Dynamics SS3 Yellow Max LED Pods (Pair)


Looking for a different color or power level? Go here

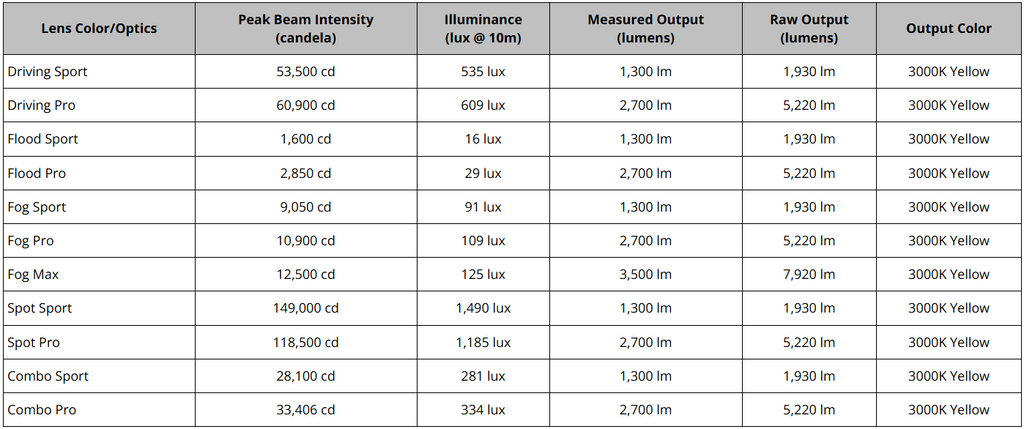

  • Measured Lumens: 3500 lm / Raw Output: 7920 lm
  • Modern TIR optics provide highest intensity on the market
  • Backlight accent feature, available in a brilliant amber color
  • Available in SAE Driving, SAE Fog, Flood, Combo/Driving, or Spot beam patterns
  • Durable powdercoated aluminum construction
  • Integrated Deutsch-style connector
  • Made in USA with global materials.
Choose Your Beam Pattern: Combo/Driving
Choose Your Backlight Color: Amber
Price:
Sale price$599.95

Shipping calculated at checkout

Subtotal: $599.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

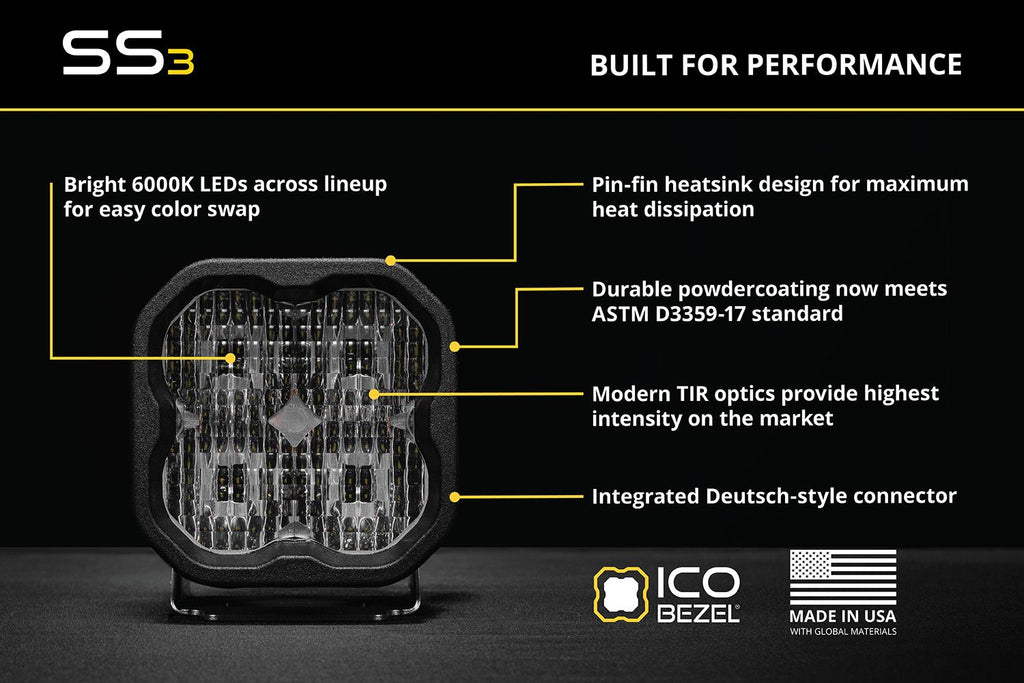

Introducing the Diode Dynamics SS3 3” LED Pod! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package.

Features

  • Modern TIR optics provide highest intensity on the market
  • Backlight accent feature, available in a brilliant amber color
  • Available in SAE Driving, SAE Fog, Flood, Combo/Driving, or Spot beam patterns
  • Durable powdercoated aluminum construction
  • Integrated Deutsch-style connector
  • Made in USA with global materials.

Focused. Traditional optics, like reflectors or simple lenses, lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

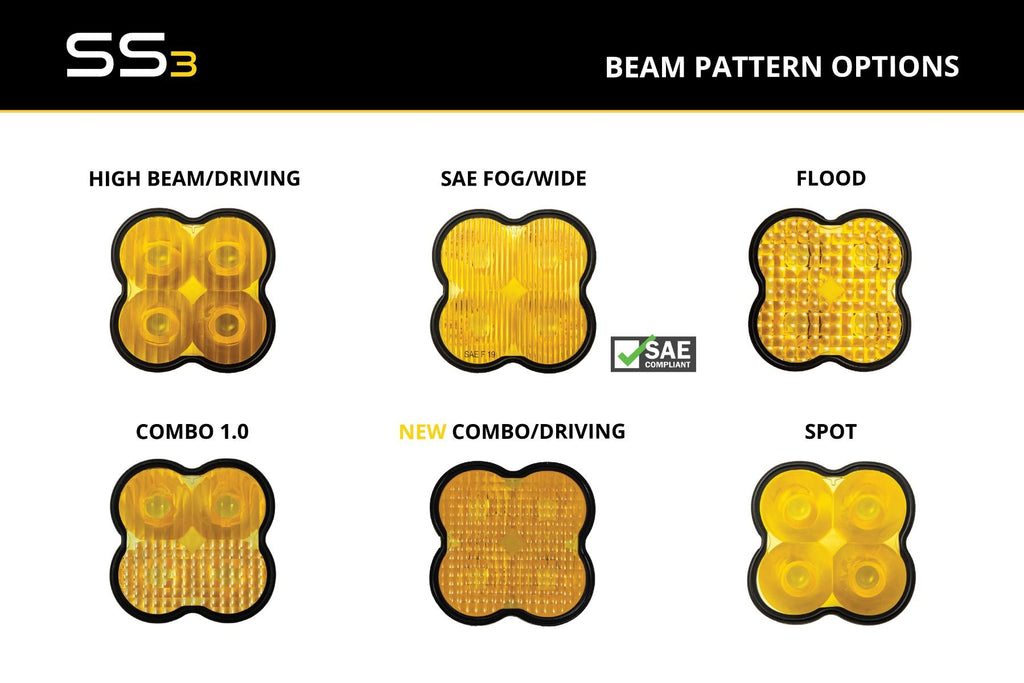

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

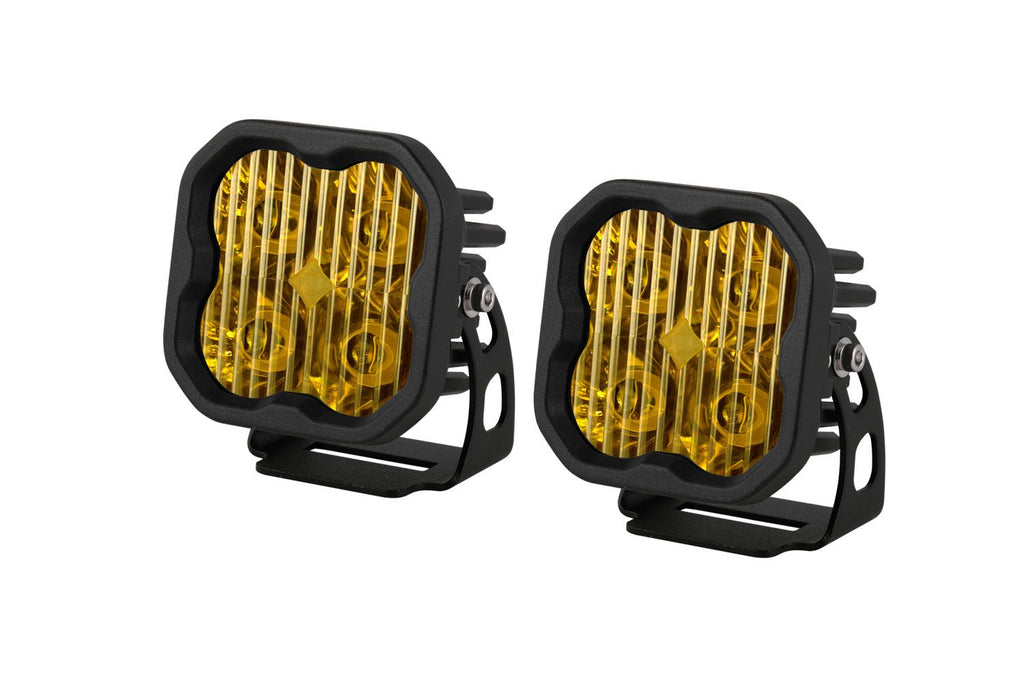

  • SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series SAE Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

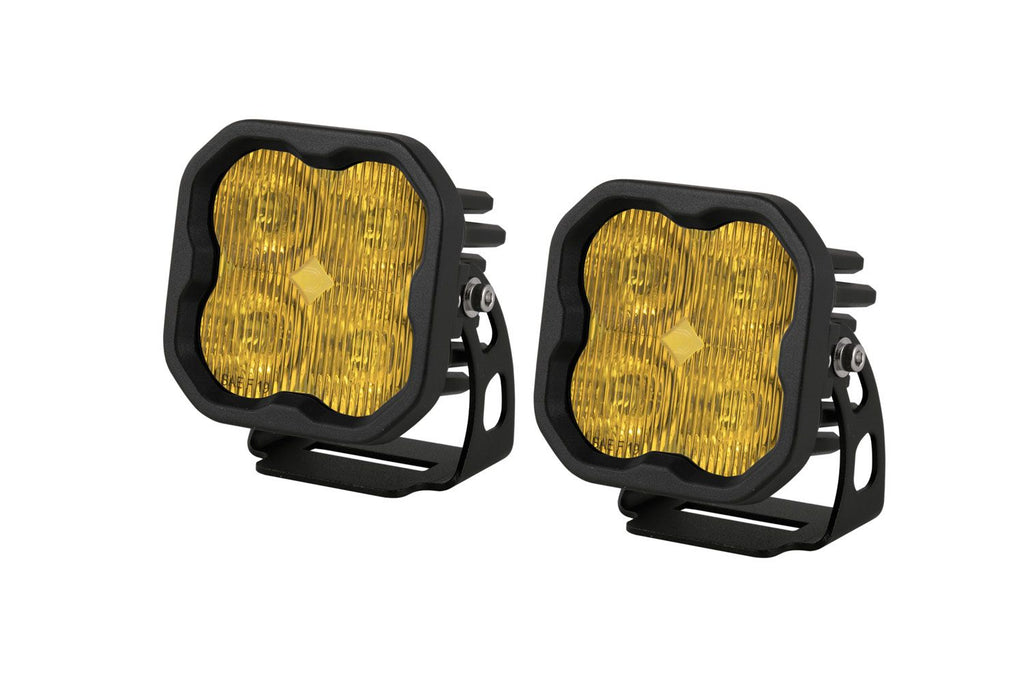

  • SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

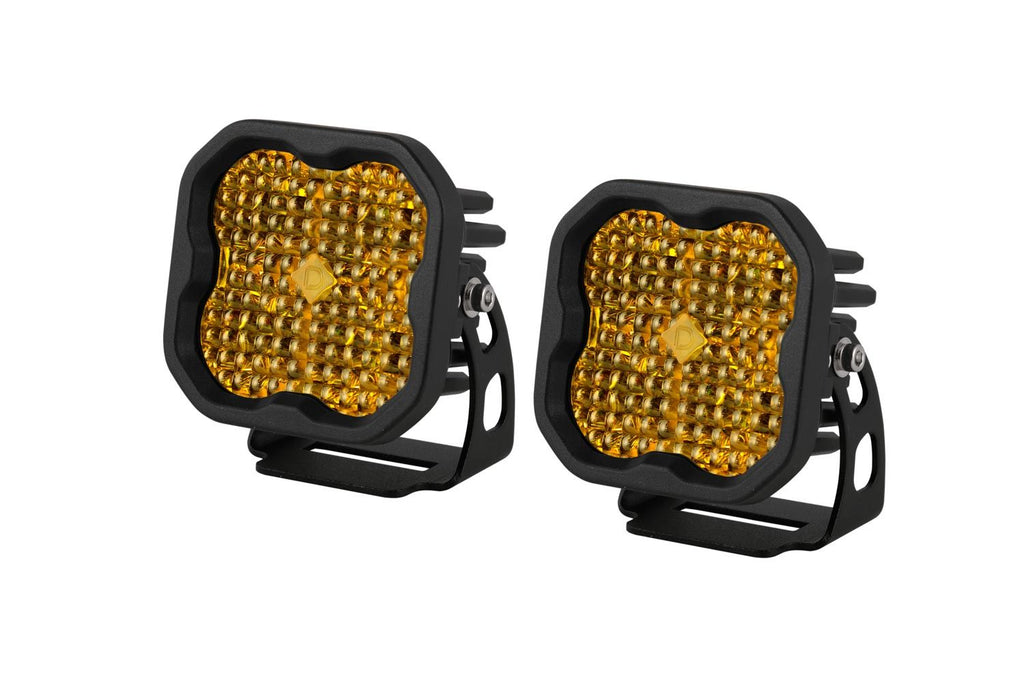

  • Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.
  • Combo/Driving provides a balanced beam pattern with strong forward illumination and a wide field of view. It shines in a smooth 80x30 degree spread, making it an excellent all-around option for a variety of speeds and terrain. Unlike other combo lights on the market that produce a distracting hotspot on rough terrain, the Combo/Driving optic produces a smooth, evenly blended pattern for a more comfortable driving experience.

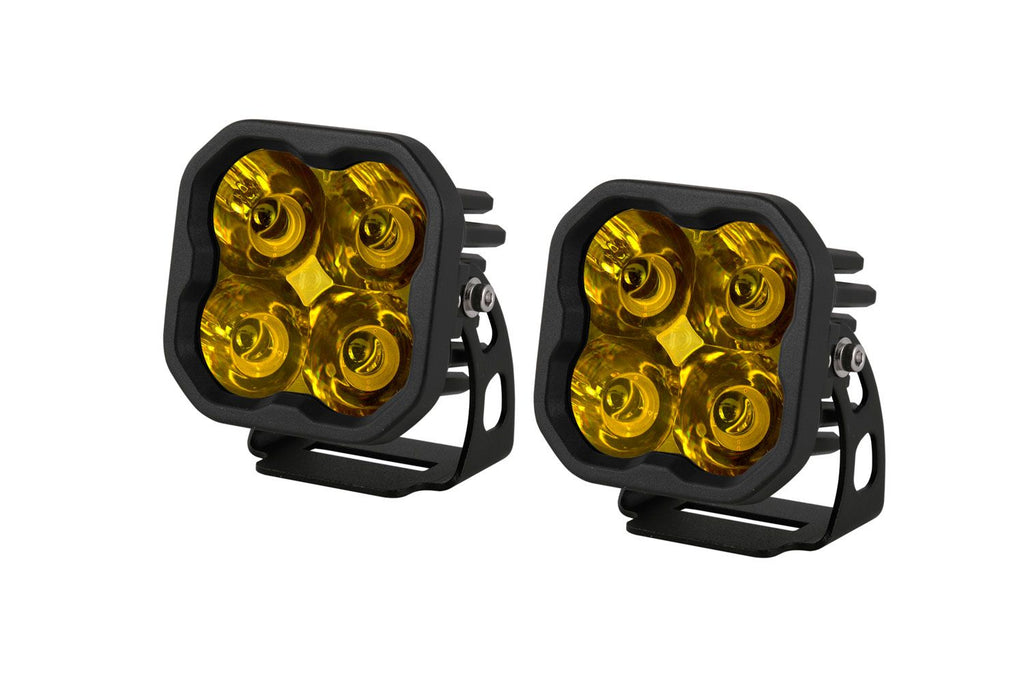

  • Spot is an unmodified pattern, shining light directly from the TIR optic. The result is a highly focused 6-degree beam of light, perfect for directing light far into the distance. With an incredible output of 151,000 candela, the SS3 Sport shines a half-mile away (¼ lux), from a compact 3-inch package. NOTE: The Pro Spot uses a slightly larger emitter, which spreads the light output more than the Sport Spot, resulting in a lower candela and lux rating even at a higher power level.

What's Included

  • Two (2) SS3 3” LED Pods
  • Two (2) Deutsch-style wire pigtails

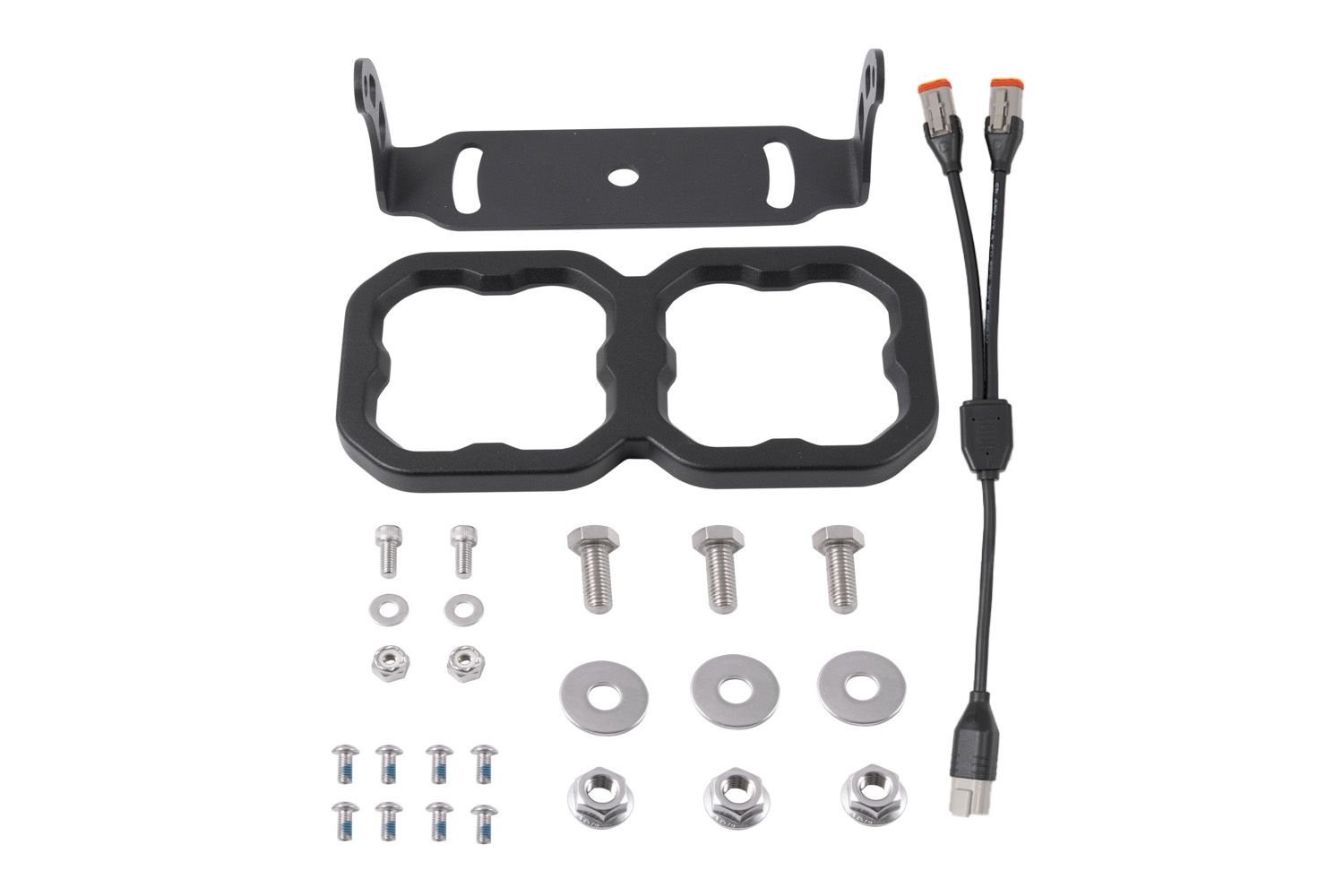

  • Two (2) Mounting brackets and hardware

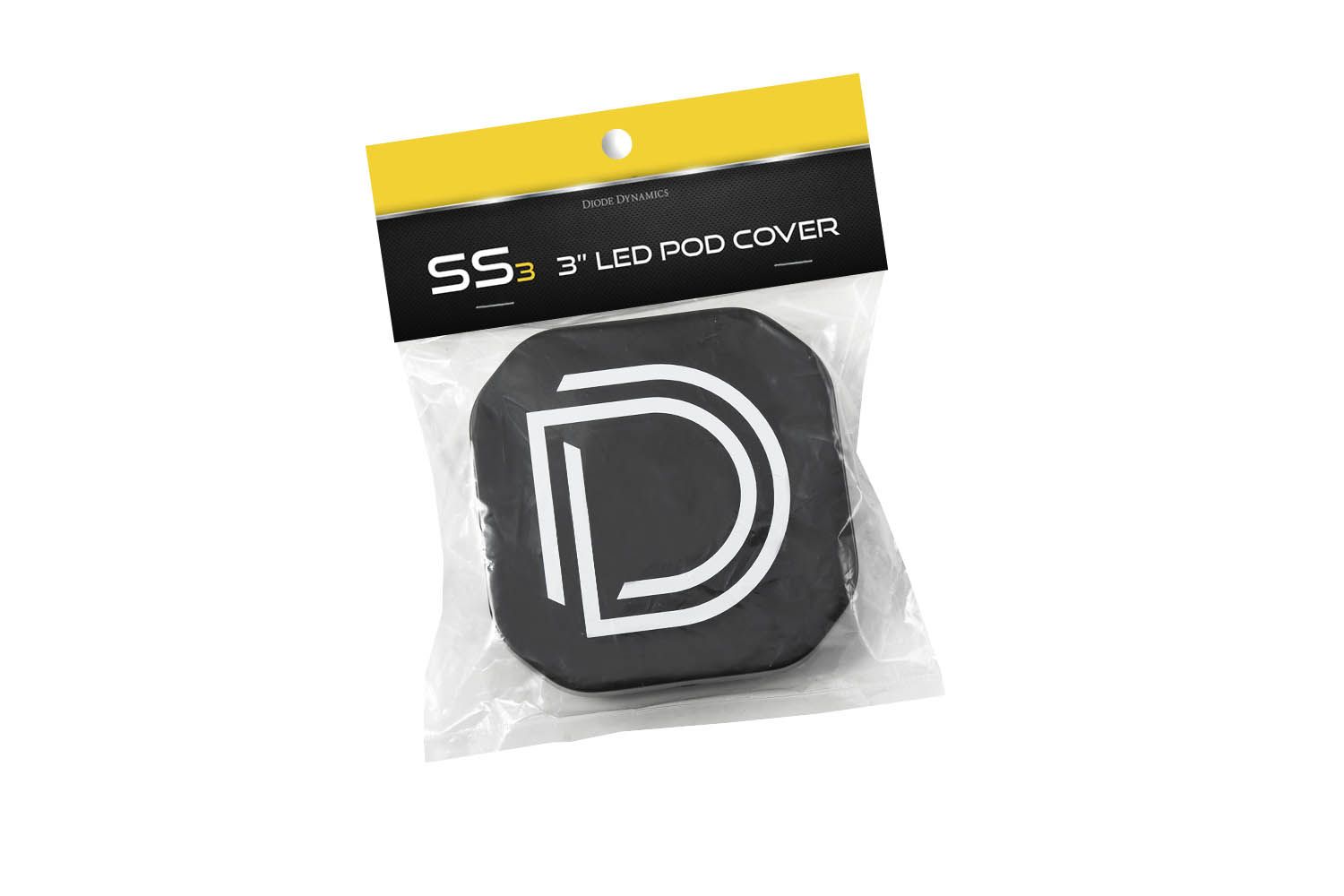

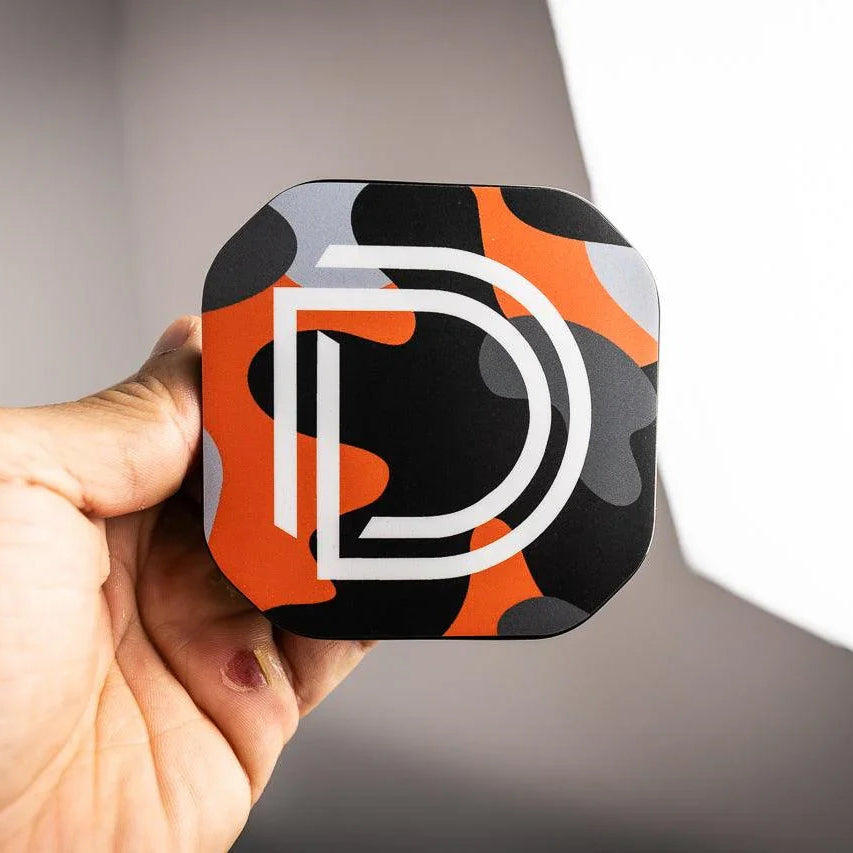

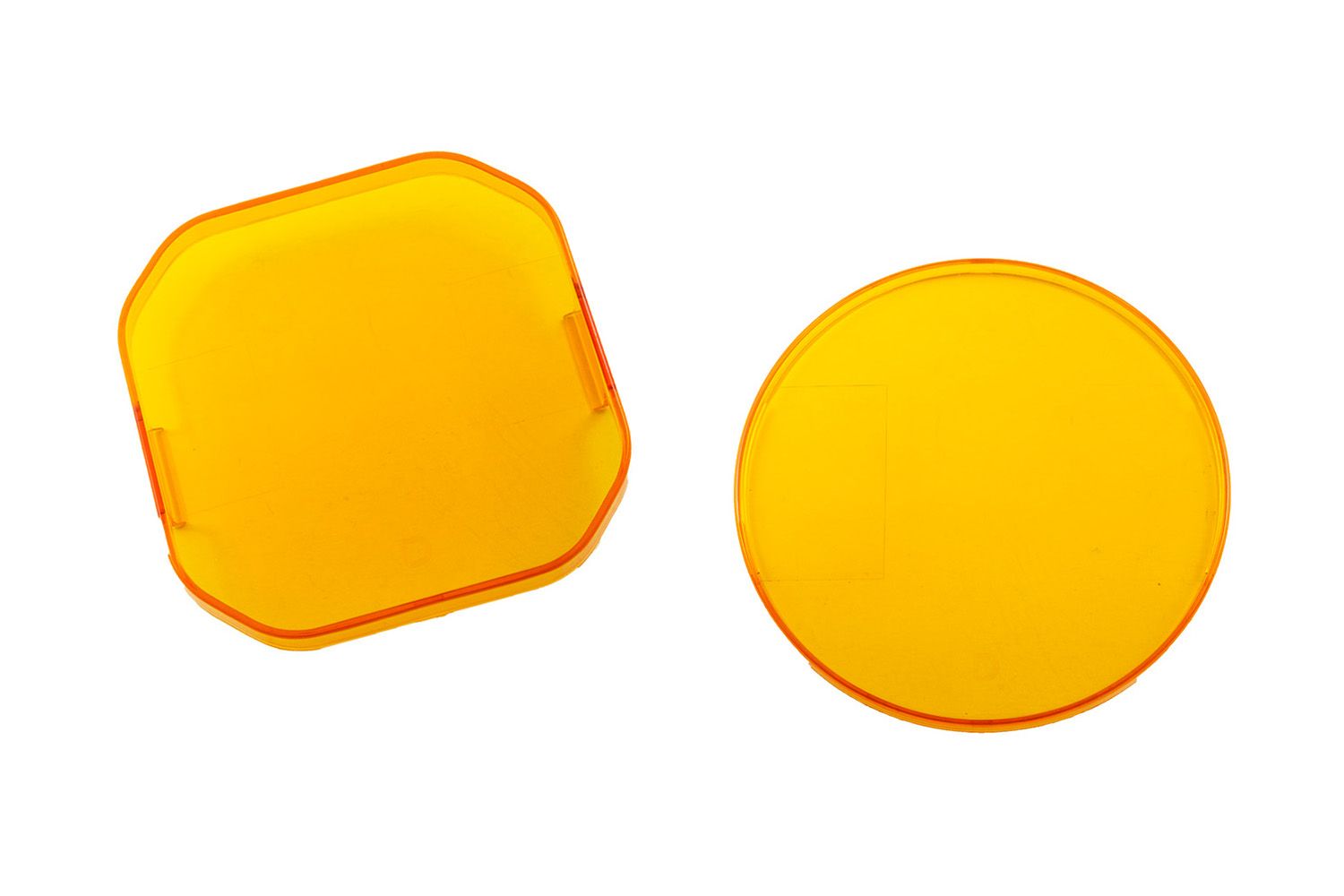

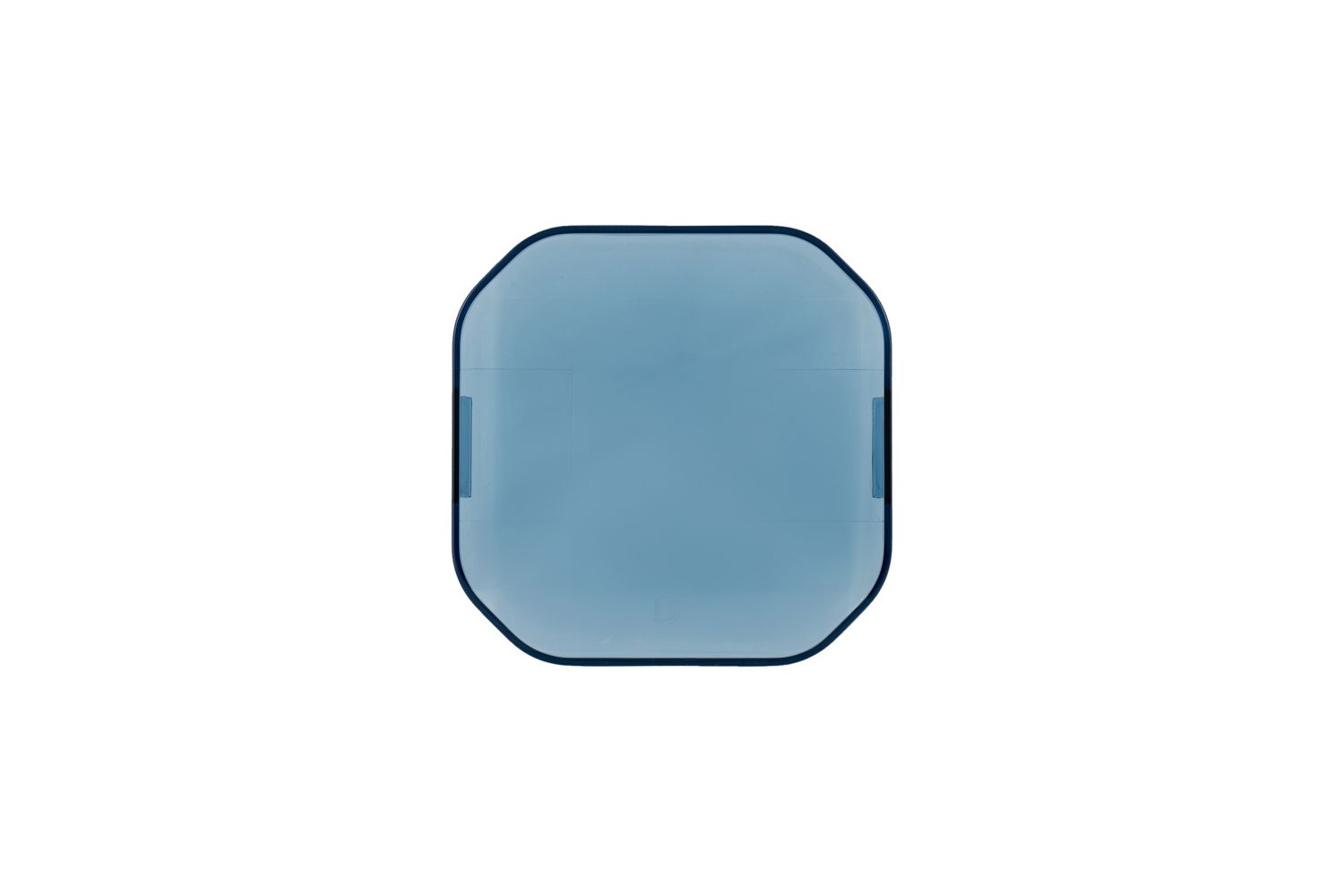

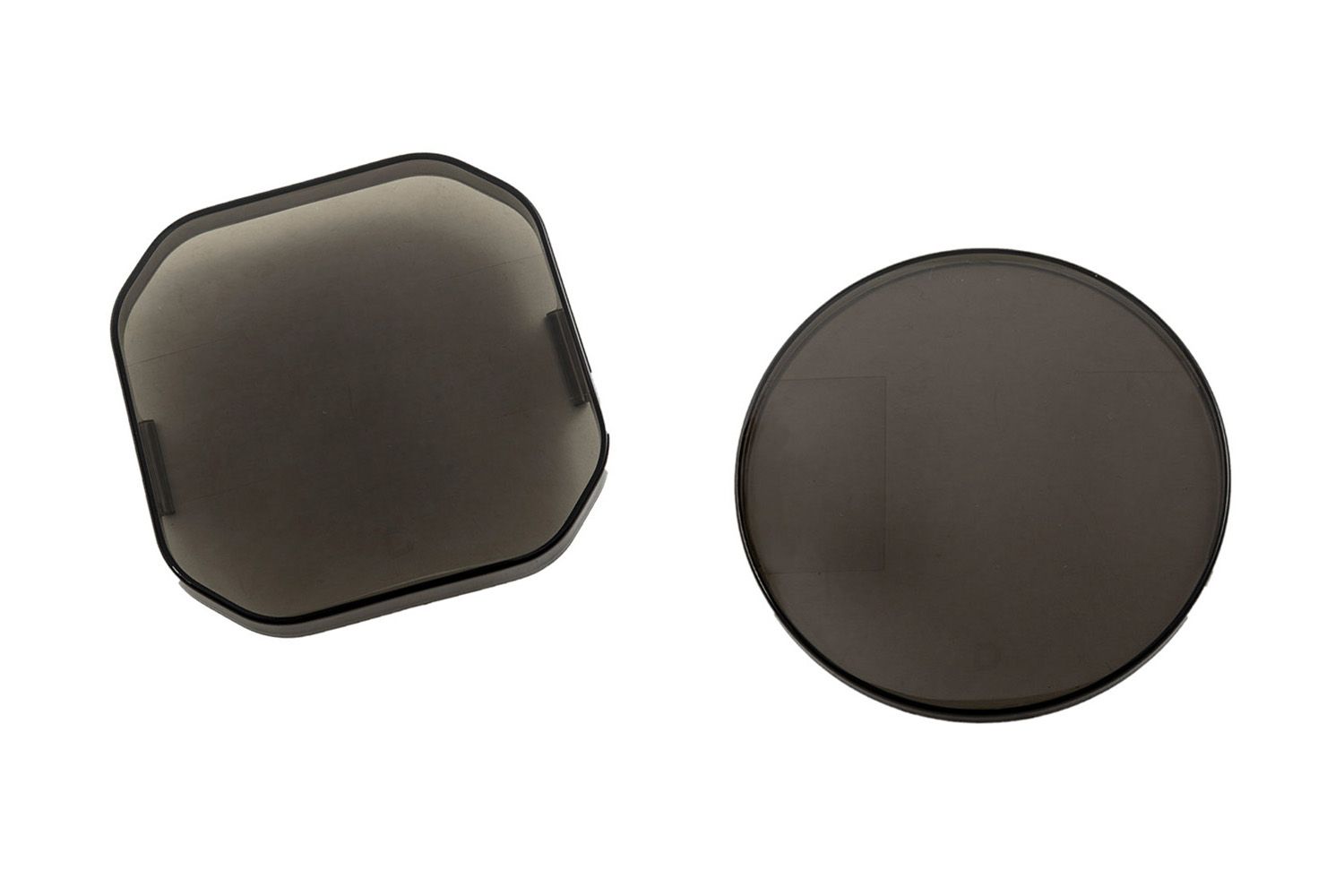

Not just off road. When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. For states that require them, we also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way! Please check your local laws and regulations for aiming, installation, and applicability.

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output that matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The SS3 Yellow LED Pod can be found here. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

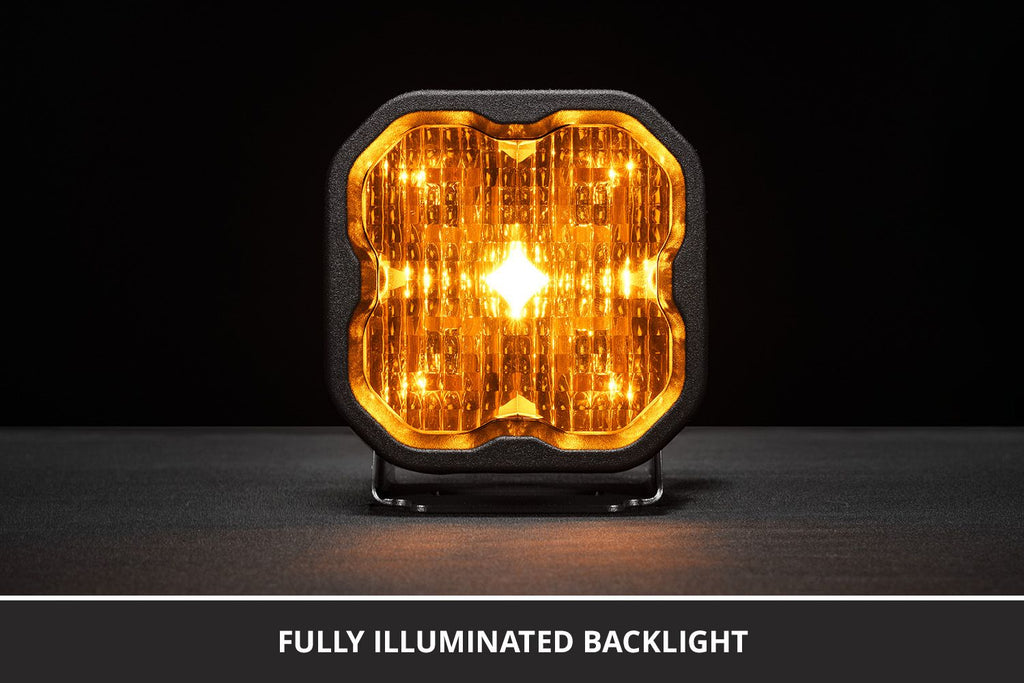

Backlight Functionality. The SS3 LED Pod features a distinctive backlight, in your choice of amber or red. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

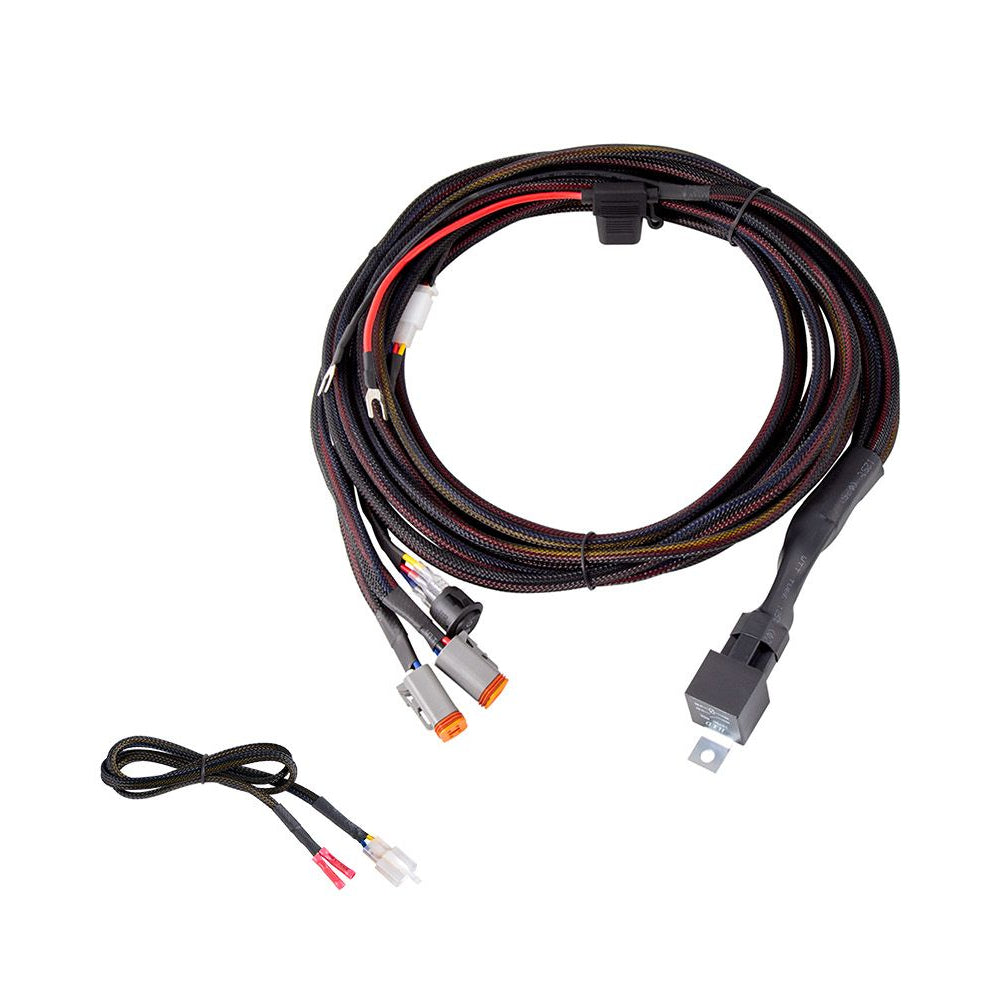

Simple connections. All SS3 LED pods feature a custom-molded DT-type Deutsch-style connector on the back and include a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT-sized wire harness, or select an optional Diode Dynamics wire harness. Diode Dynamics Light Duty Dual Output Harness can be used to power up to two SS3 pods. If you are looking to power more than two SS3 pods, we recommend using Diode Dynamics Heavy Duty Dual Output Harness along with a Deutsch DT Splitter.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
