Diode Dynamics SS6 LED Fog Light Kit for Tacoma (2024-2026)


%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Choose Your Optic and Color: White SAE Fog/Wide
Choose Your Power Level: Sport (31.5 watts)
Price:
Sale price$349.95

Shipping calculated at checkout

Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

    Upgrade your Toyota Tacoma with our SS6 LED Fog Light Kit, delivering powerful, road-legal performance and a clean, factory-style appearance. This bolt-on kit mounts a pair of 6-inch Stage Series LED Light Bars using CAD-designed brackets and factory mounting points. No cutting or drilling required! With higher light output, modern optics, and greater intensity than anything else on the market, the new Stage Series Lightbars are the most capable lightbars available today!

    Features

    • Direct fitment on 2024-2026 Toyota Tacoma.
    • Patented TIR Optics for maximum efficiency and output.
    • True amber backlight provides unique accent lighting.
    • Available in Sport, Pro, and Max power levels.
    • Utilizes existing mounting points for simple installation.
    • Limited Lifetime Warranty.
    • Made in USA with Global Materials.

    Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

    Functional Beam Patterns. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.

    SAE Fog uses our distinctive FineLine optic, which provides an exceptionally wide pattern. The SAE Fog optic shines with a 90x10 degree pattern to fully illuminate the area directly in front of your vehicle. They are legal for on-road use as fog lights.

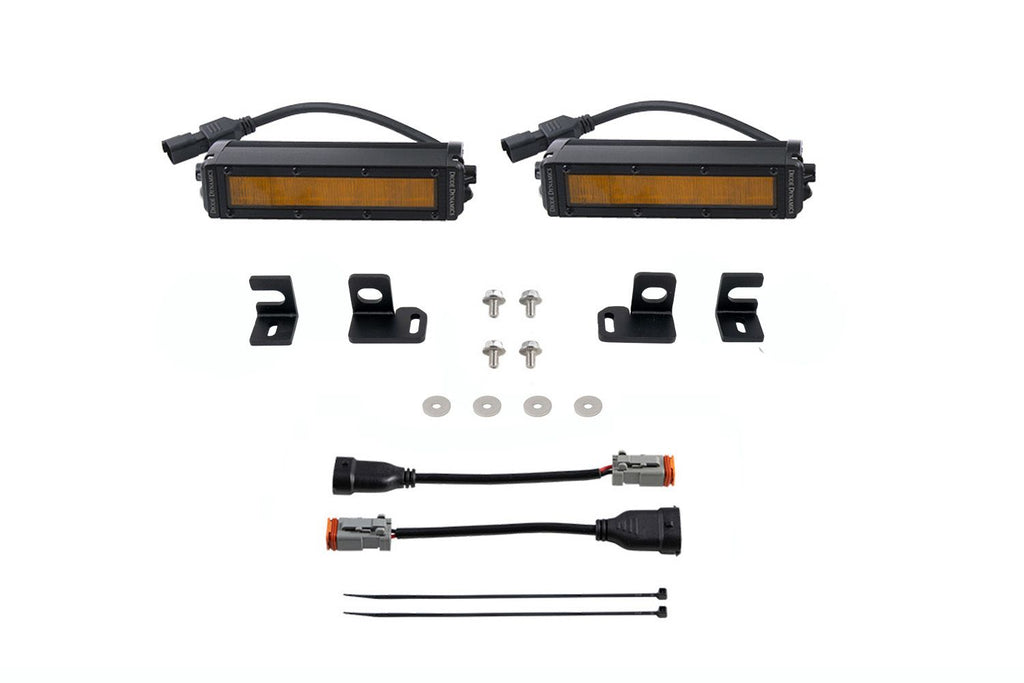

    What's Included

    • Four (4) Application-specific brackets for installation on 2024+ Toyota Tacoma
    • Two (2) 6" Classic or SS6 LED light bars
    • Two (2) H11 DT Adapters
    • Installation Guide

    Fitment

    NOTE: This kit is not compatible with the Trail Hunter trim or models equipped with Rigid Dual Color Fog Lights.

    • Make: Toyota
    • Model: Tacoma
    • Years: 2024, 2025, 2026

    Color/Optic/Power Level Peak Beam Intensity
    (candela)
    Illuminance
    (lux @ 10m)
    Raw Output
    (lumens)
    Output Color
    White SAE Fog/Wide Sport 15,000 cd 150 lux 1,844 lm 6000K White
    White SAE Fog/Wide Pro 16,000 cd 160 lux 6,272 lm 6000K White
    White SAE Fog/Wide Max 20,300 cd 203 lux 7,920 lm 6000K White
    White SAE Fog/Wide Classic 13,000 cd 130 lux 2,280 lm 6000K White
    Yellow SAE Fog/Wide Sport Coming Soon Coming Soon 1,844 lm 3000K Yellow
    Yellow SAE Fog/Wide Pro Coming Soon Coming Soon 6,272 lm 3000K Yellow
    Yellow SAE Fog/Wide Max Coming Soon Coming Soon 7,920 lm 3000K Yellow
    Yellow SAE Fog/Wide Classic 7,400 cd 74 lux 1,140 lm 2000K Yellow



    Specifications

    • Color Temp (CCT): 2000K, 3000K, 6000K
    • Beam Angle: Wide, 100°x8°, SAE Fog, 90°x10°
    • Power (watts): Sport: 31.5, Pro: 35, Max: 40.5
    • Current (amps @ 12.8V): Sport: 2.46, Pro: 2.73, Max: 3.16
    • Polarity: Polarity Specific
    • Operating Temperature: -40C to 85C (-40F to 185F)
    • LED Emitter: Luxeon Z ES, Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
    • Connector(s): Deutsch DT Input
    • Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink
    • Cooling: Passive, heatsink
    • Intrusion Ratings: IP69K Waterproof, High Pressure
    • Unit Weight (lb): 1.8
    • Product Weight (lb): 3.6
    • Shipped Weight (lb): 5
