Diode Dynamics SS6 SAE/DOT White LED Light Bar (Pair)


Select Beam Pattern: Combo/Driving
Select Power Level: Sport
Select Backlight Color: Amber
Price:
Sale price$299.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

The Diode Dynamics SS6 SAE/DOT White LED Light Bar (Pair) delivers powerful auxiliary lighting in a compact 6-inch design built for both on-road legality and off-road performance. Part of Diode Dynamics’ Stage Series lineup, the SS6 uses advanced TIR (Total Internal Reflection) optics to direct nearly all available light exactly where you need it, producing a controlled beam pattern with minimal glare.

Designed for trucks, SUVs, and off-road builds, the SS6 provides an extremely bright 6000K pure white output while maintaining SAE-compliant beam patterns when configured with the proper lenses. Whether you're installing them as ditch lights, auxiliary driving lights, fog lights, or bumper lights, the SS6 delivers impressive performance from a compact and durable housing.

With multiple beam patterns and power levels available, the SS6 can be tailored to suit a variety of driving conditions—from wide flood lighting for trails to high-intensity spot beams capable of projecting light far down dark highways or remote off-road terrain.

**Need a wiring harness? Please go here for the harness required.**

Features

  • Advanced TIR Optics: Diode Dynamics’ Total Internal Reflection optics focus nearly all available LED output into a usable beam pattern, improving efficiency and reducing glare compared to traditional reflector-style light bars.
  • SAE/DOT Compliant Driving & Fog Options: When equipped with the proper optics and installed correctly, the SS6 can meet SAE J581 driving light or SAE fog light standards, allowing for safe and legal on-road use.

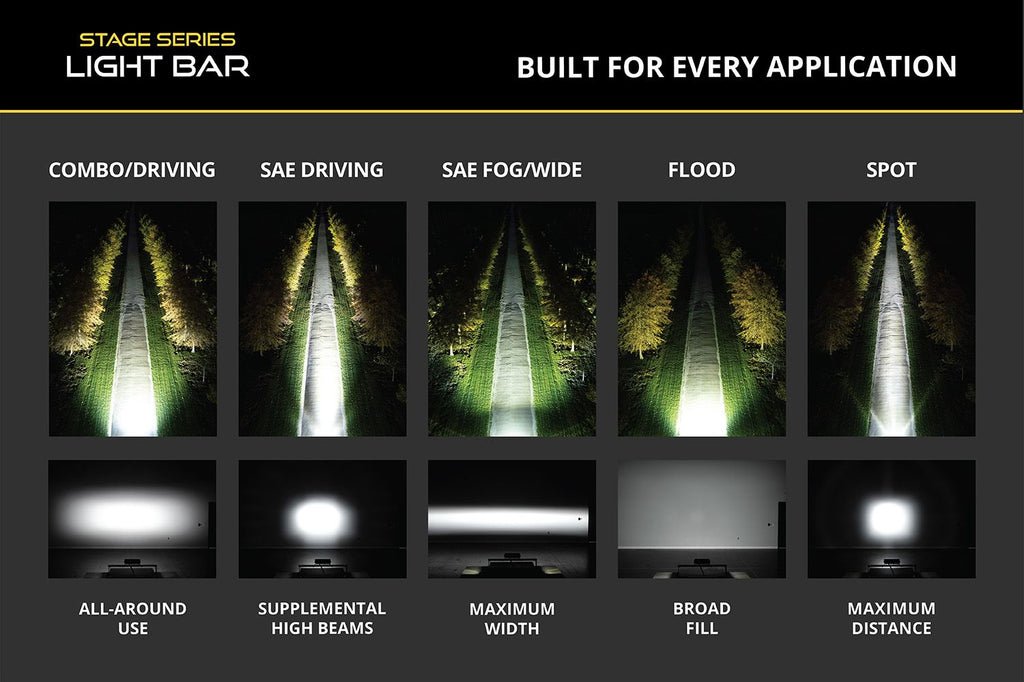

  • Multiple Beam Patterns Available: Choose from SAE Driving, SAE Fog/Wide, Flood, Spot, or Combo beam patterns depending on your lighting needs, whether for highway driving, trail visibility, or long-distance projection.
  • High-Intensity LED Output: Depending on configuration, the SS6 produces up to 7,920 lumens of raw output and 181,500 candela of peak beam intensity, delivering powerful illumination in a compact package.
  • Automotive-Grade LEDs: Premium Osram Boost HX, Osram Ostar Projection Compact, and Lumileds automotive LEDs provide consistent brightness, reliability, and long service life.

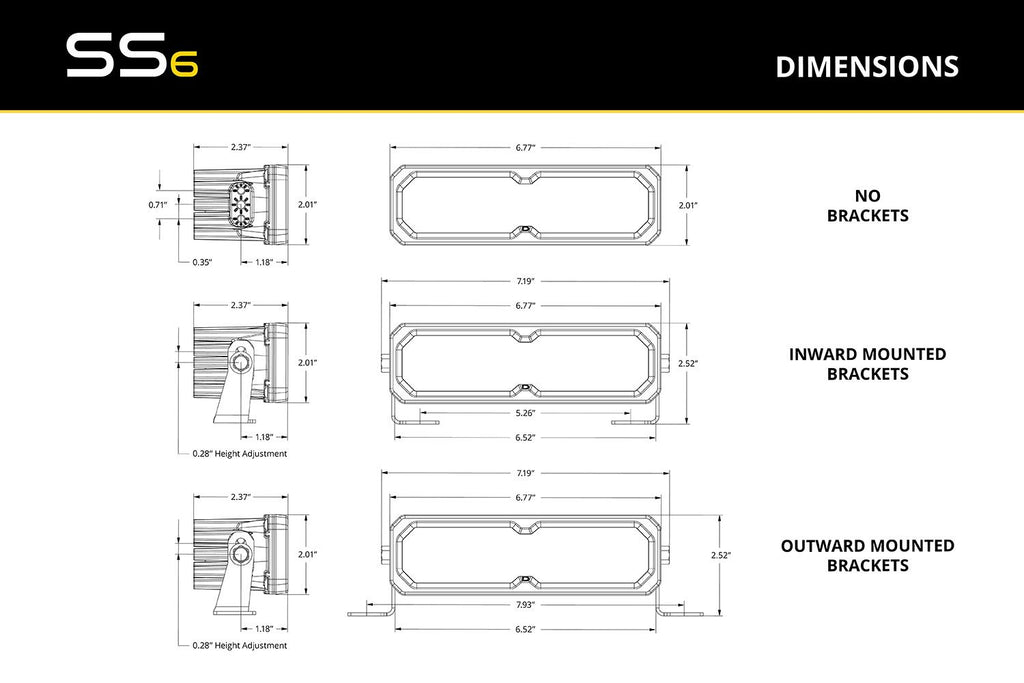

  • Compact Low-Profile Housing: The 6-inch single-row design fits easily in tight mounting locations such as ditch light brackets, bumper pockets, grille mounts, and roof rack lighting setups.
  • Durable Aluminum Construction: A powder-coated aluminum heatsink housing with stainless steel mounting brackets ensures durability and proper thermal management even in harsh environments.
  • IP69K Waterproof Rating: Built to withstand dust, water, and extreme conditions with IP69K high-pressure waterproof protection.
  • Wide Operating Range: Operates on 9–30V electrical systems with a working temperature range from -40°F to 185°F, making it ideal for extreme environments and off-road use.
  • Deutsch DT Connectors: Includes reliable Deutsch DT connectors for a secure and weather-resistant electrical connection.

Includes

  • In the Box:
    • Two (2) LED light bar
    • Two (2) wire pigtail
    • Universal brackets
  • Quantity: Two (2)
  • Warranty: Lifetime warranty
  • Return Policy: 30-day Return with no restocking fee
  • 100% Satisfaction Guarantee

Performance Specifications

The SS6 LED light bar is available in multiple optic and power configurations to match different driving conditions:

Driving Beam Performance (SAE Compliant)

  • Sport: 60,400 candela / 604 lux @10m / 1,844 lumens
  • Pro: 74,000 candela / 740 lux @10m / 6,272 lumens
  • Max: 84,500 candela / 845 lux @10m / 7,920 lumens

Spot Beam Performance (Long Distance)

  • Sport: 154,500 candela / 1,545 lux @10m
  • Pro: 161,400 candela / 1,614 lux @10m
  • Max: 181,500 candela / 1,815 lux @10m

Flood Beam Performance (Wide Area)

  • Sport: 1,550 candela / 16 lux @10m
  • Pro: 2,150 candela / 22 lux @10m
  • Max: 2,500 candela / 25 lux @10m

SAE Fog / Wide Beam

  • Sport: 15,000 candela / 150 lux @10m
  • Pro: 16,000 candela / 160 lux @10m
  • Max: 20,300 candela / 203 lux @10m

Combo Beam

  • Sport: 15,400 candela / 154 lux @10m
  • Pro: 23,700 candela / 237 lux @10m
  • Max: 27,000 candela / 270 lux @10m

Technical Specifications

Color Temperature: 6000K Pure White
Available Beam Patterns: SAE Driving, SAE Fog/Wide, Flood, Spot, Combo

Beam Angles:
Driving: 20° x 12°
Fog/Wide: 90° x 10°
Flood: 100° x 80°
Spot: 8° x 8°
Combo: 60° x 30°

Peak Output (Max Configuration): 7,920 Lumens
Maximum Beam Intensity: 181,500 Candela
Illuminance: Up to 1,815 Lux @ 10m

Power Consumption:
Sport: 31.5W
Pro: 35W
Max: 40.5W

Current Draw (12.8V):
Sport: 2.46A
Pro: 2.73A
Max: 3.16A

Operating Voltage: 9–30V DC
LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive LEDs
Connector Type: Deutsch DT
Housing Material: Aluminum Heatsink
Lens Material: Polycarbonate
Mounting Hardware: Stainless Steel Brackets
Cooling System: Passive Heatsink Cooling
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Protection Rating: IP69K Waterproof / Dustproof

If you’re looking for compact auxiliary lighting that delivers serious performance, the Diode Dynamics SS6 SAE/DOT White LED Light Bar (Pair) is an excellent choice. With precision optics, SAE-compliant beam patterns, and rugged construction, these light bars provide reliable visibility for daily driving, off-road exploration, and everything in between.

The Diode Dynamics SS6 SAE/DOT White LED Light Bars are commonly used as ditch lights, auxiliary driving lights, and fog light upgrades on trucks and SUVs. Their compact size makes them ideal for Tacoma ditch light mounts, bumper light pockets, grille lighting setups, and roof rack lighting where a small but powerful LED light bar is needed.

Many off-road enthusiasts install SS6 light bars as SAE-compliant driving lights for improved highway visibility, while others use them as trail lighting for overland and off-road adventures. With their focused beam pattern and compact design, they are a popular upgrade for Toyota Tacoma, Toyota 4Runner, Toyota Tundra, Ford Raptor, Jeep Wrangler, and other off-road builds.

This product is an aftermarket modification and is not affiliated with or endorsed by Toyota or any other vehicle manufacturer. The user/installer assumes all liability in using this product.
