Diode Dynamics Stage Series Backlit Ditch Light Kit for Tundra (2022-2026)

Save 20%

Select Optic and Color: White / Combo
Select Kit Configuration: 2" (C2 2.0 Sport)
Price:
Sale price$263.96 Regular price$329.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

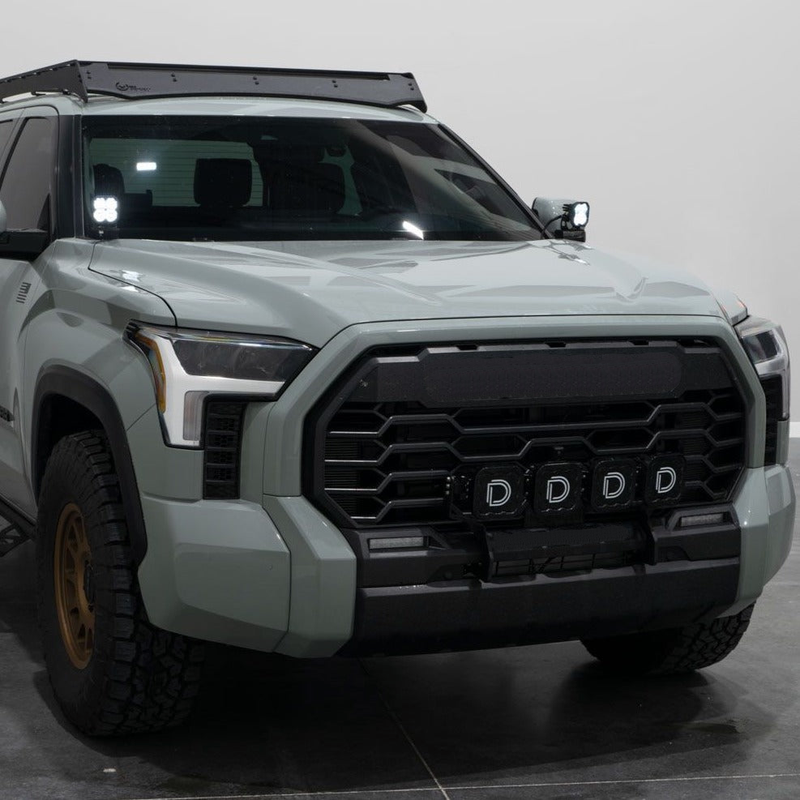

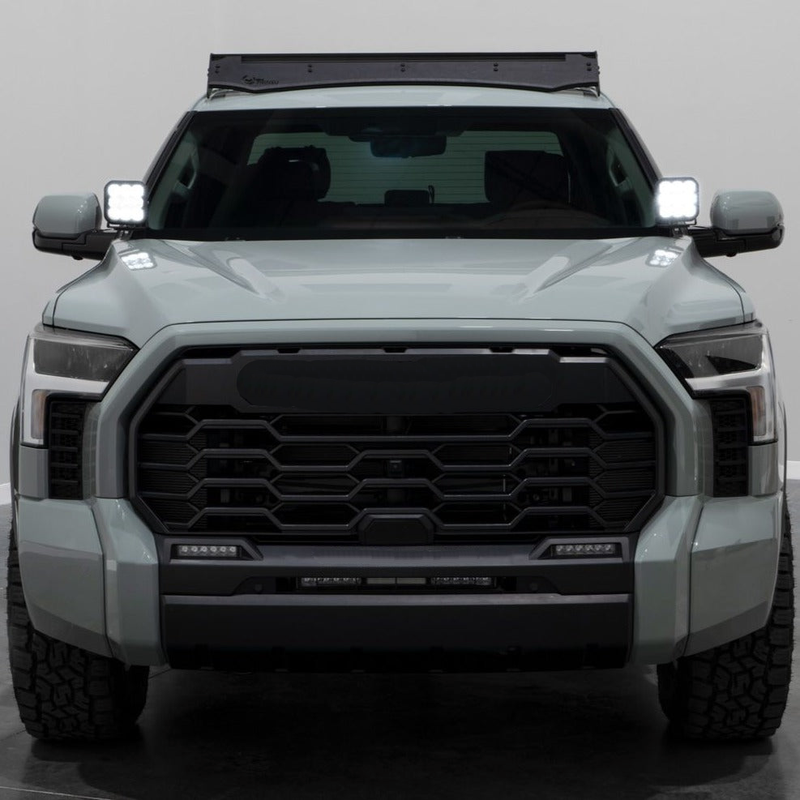

The Diode Dynamics Stage Series Backlit Ditch Light Kit for Tundra (2022-2026) allows you to easily mount SS5, SS3, or SSC2 Backlit Pods above your hood with CAD-designed, bolt-on stainless steel brackets—no cutting or drilling required. The low-profile design prevents glare and won’t interfere with hood operation.

Built from thick-gauge stainless steel, these brackets resist corrosion and vibration for long-term durability. Choose from cool white (6000K) or selective yellow (3000K) lenses, with optional replacement lenses for color or optic swaps.

Available in Sport or Pro power levels, both using high-intensity LEDs and TIR optics for superior output.

  • Beam patterns: SS5 (70x30°), SS3 (65x25°), SSC2 (40x20°)
  • Backlight options: Amber (SS3/SSC2) or 8-color selectable (SS5)

Includes wiring harness for easy backlight connection to your desired vehicle function.

Features

  • Bolt-on fitment on 2022-2026 Toyota Tundra
  • Allows you to mount two Stage Series LED Pods above the hood.
  • Utilizes existing mounting points for easy installation.
  • Thick-gauge stainless steel construction.
  • Low-profile design.
  • Assembled in USA.

Includes

  • (2) LED Light Pods
  • (1) Brackets
  • (1) Wiring Harness
  • Hardware

Fitment

  • Make: Toyota
  • Model: Tundra
  • Year: 2022, 2023, 2024, 2025, 2026

Specifications

  • SS3 Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7
  • C2 2.0 Current (amps @ 12.8V): Sport: 1.17, Pro: 1.8
  • Color Temp (CCT): 3000K, 6000K
  • Beam Angle: Combo (Driving and Flood)
  • Power (watts): SS3 Sport: 14.5, SS3 Pro: 36, C2 2.0 Sport: 15, C2 2.0 Pro: 23 SS5 Sport: 40, SS5 Pro: 90
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F
  • LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
  • Connector(s): Deutsch DT Input
  • Driver Features: Constant Current
  • Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
  • Cooling: Passive, Pin-Fin heatsink
  • Compliance Ratings: SAE J575 Durability Test
  • Intrusion Ratings: IP69K Waterproof, High Pressure
  • Unit Weight (lb): SSC2: 1.70, SS3: 2.00, SS5: 3.60
  • Product Weight (lb): SSC2: 5.40, SS3: 6.00, SS5: 9.20
SS3 LED Pods
Lens Color/Optics Measured Output
(lumens)
Raw Output
(lumens)
Output Color
Combo/Driving White Sport 1,520 lm 2,262 lm 6000K White
Combo/Driving White Pro 3,000 lm 5,796 lm 6000K White
Combo/Driving Yellow Sport 1,300 lm 1,930 lm 3000K Yellow
Combo/Driving Yellow Pro 2,700 lm 5,220 lm 3000K Yellow
C2 2.0 LED Pods
Lens Color/Optics Raw Output
(lumens)
Output Color
Combo/Driving White Sport 1,190 lm 6000K White
Combo/Driving White Pro 3,140 lm 6000K White
Combo/Driving Yellow Sport 1,190 lm 3000K Yellow
Combo/Driving Yellow Pro 3,140 lm 3000K Yellow


This product is an aftermarket modification and is not affiliated with or endorsed by Toyota or any other vehicle manufacturer. The user/installer assumes all liability in using this product.
