Diode Dynamics Wrangler Cowl Mount LED Brackets for Jeep JL Wrangler (2018-2025)

Save 20%

Select Kit Configuration: Four SS3 Sport (14.5 watts)
Select Optic and Color: White Driving/Flood
Price:
Sale price$447.96 Regular price$559.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

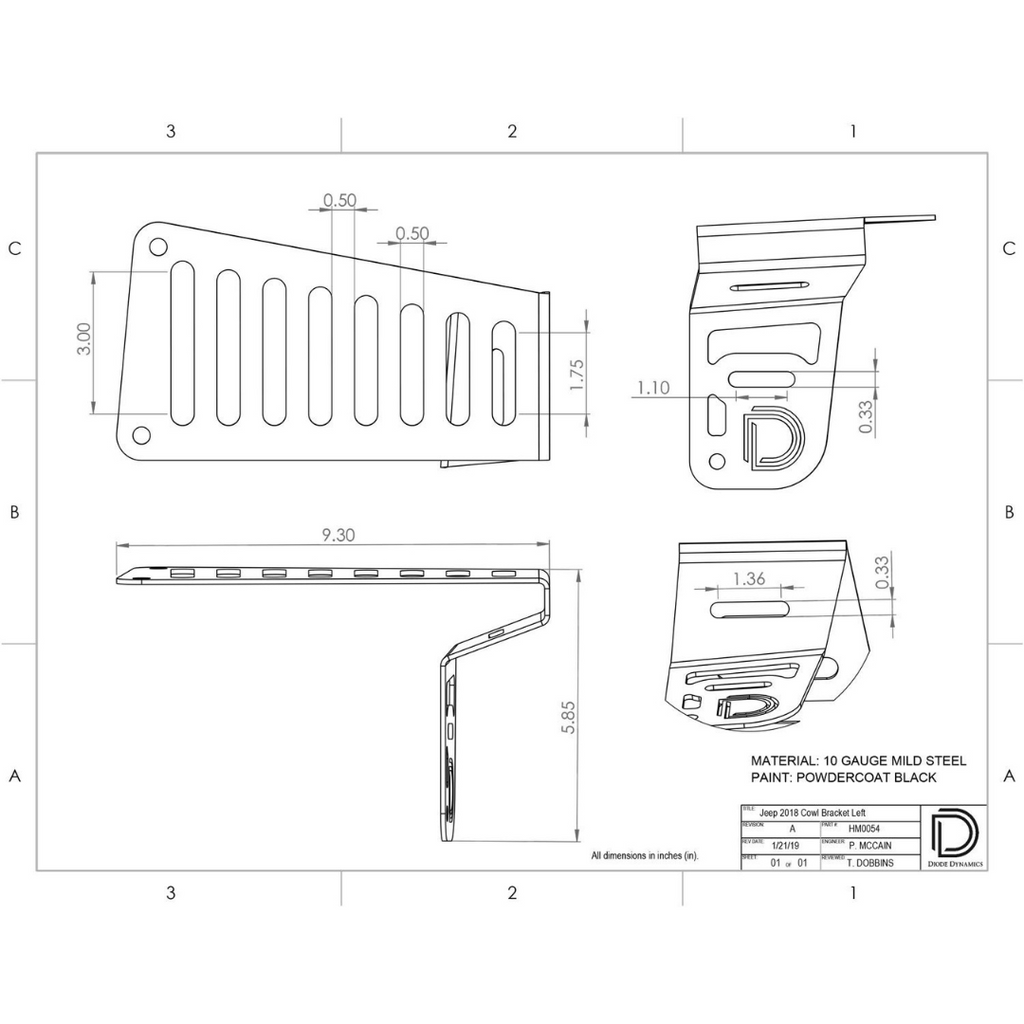

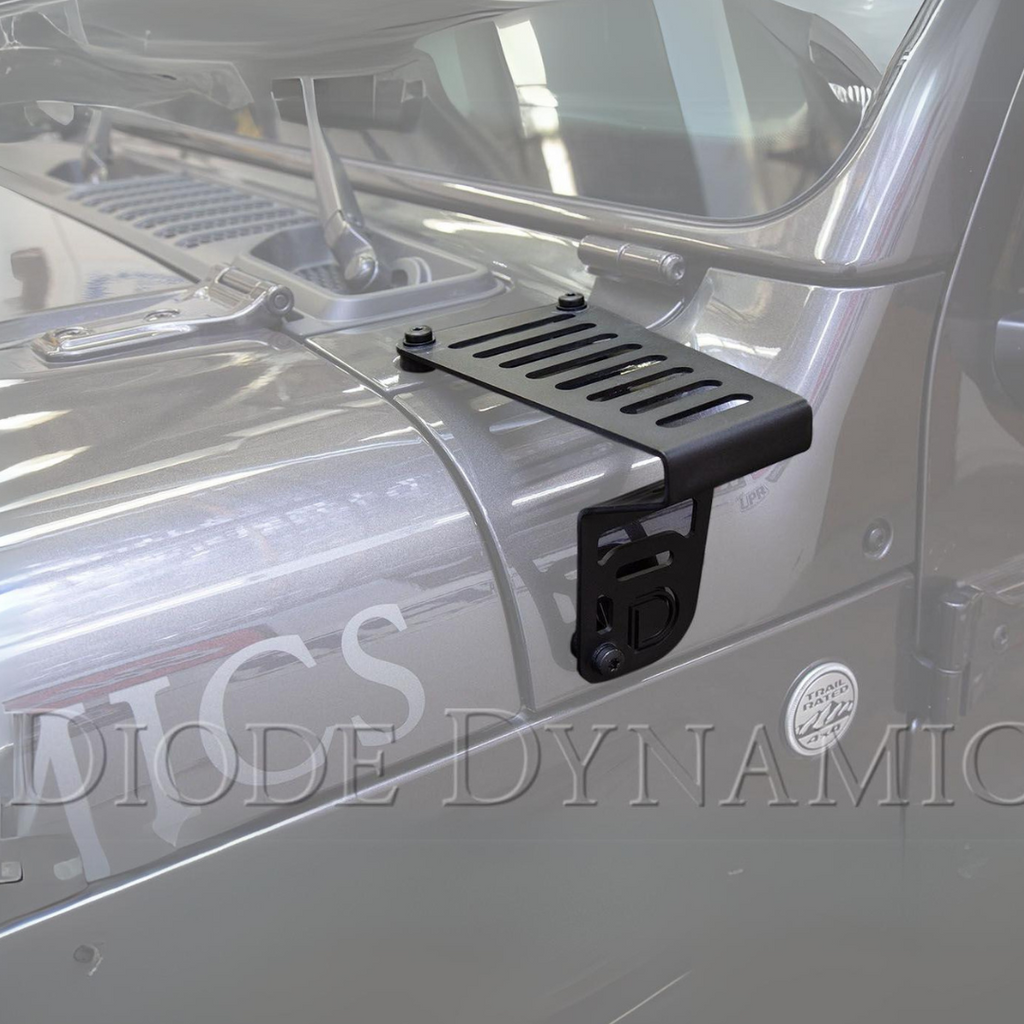

The Cowl Mount LED Light Bar Kit for the 2018-2025 Jeep Wrangler from Diode Dynamics allows you to easily mount just about any auxiliary lighting you can think of. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! They also feature a low profile design, which eliminates excess whistling or major wind noise.

Features

  • CAD-designed for perfect fitment on 2018+ Jeep JL Wrangler.
  • Features multiple mounting points for endless mounting options.
  • Compatible with any pod, worklight, or small light bar.
  • When a set of standard pods is mounted on the outer slot, they allow you to still fold down the windshield.
  • Includes OEM-style automotive grade hardware designed specifically for this kit.
  • Utilizes existing mounting points for easy installation - no cutting or drilling required.

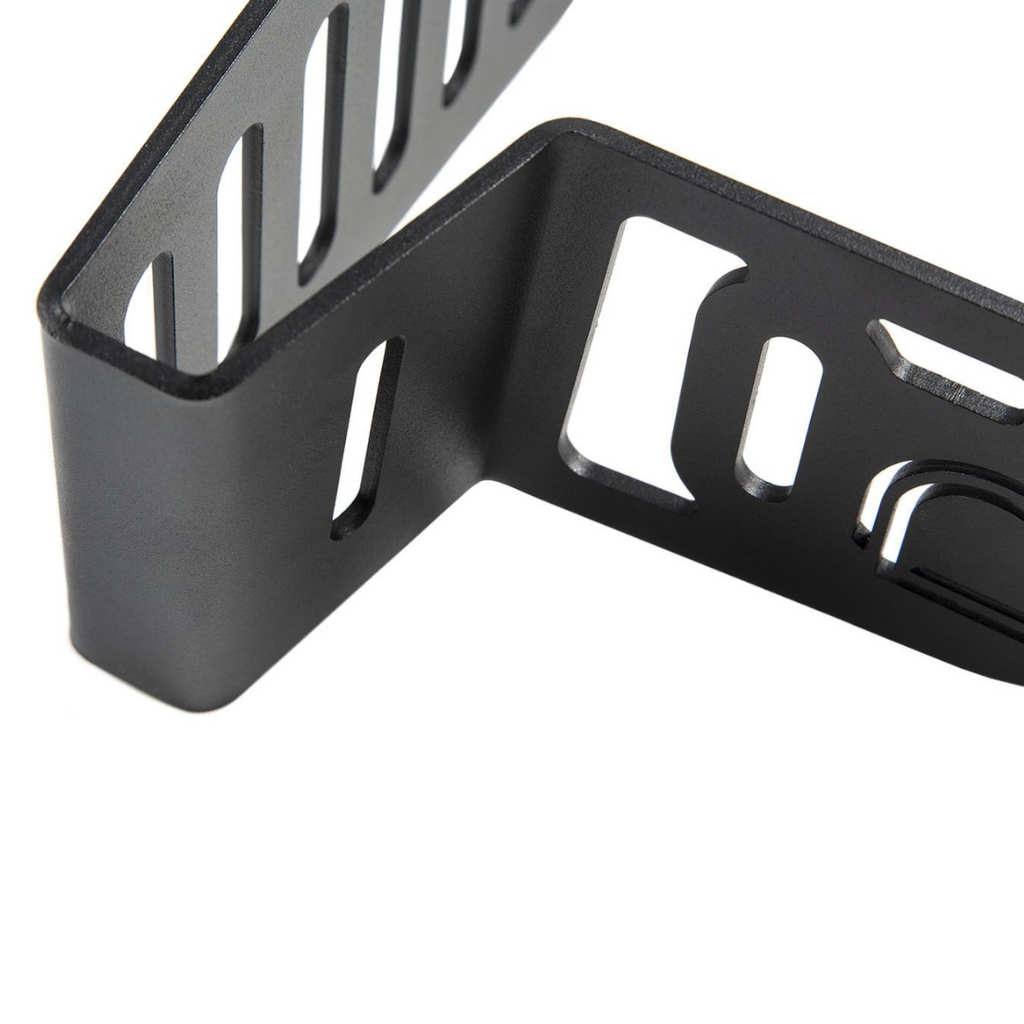

  • Highly durable powdercoated steel construction.

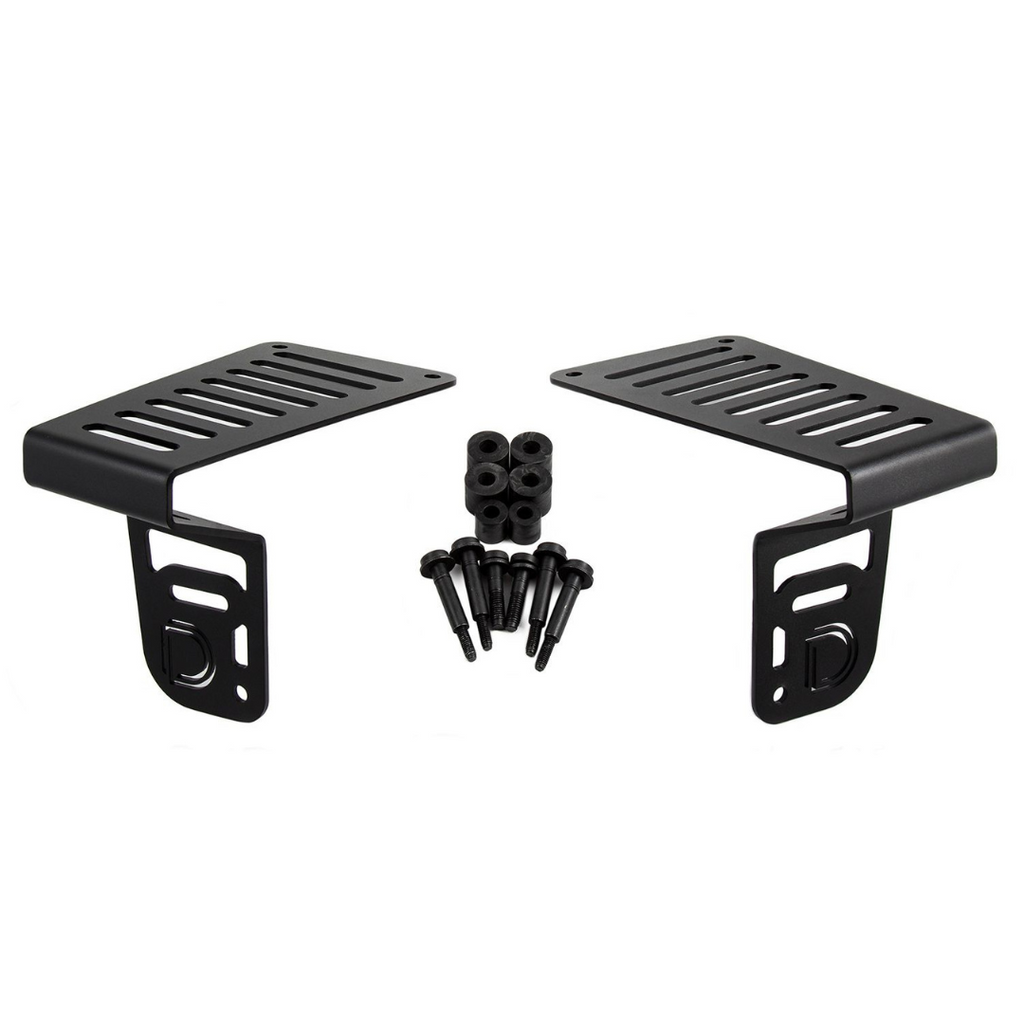

In the Box: Brackets Only:
  • Two (2) Application-specific cowl mount brackets for installation on 2018-2023 Jeep Wrangler
  • Six (6) Delrin spacers
  • Six (6) OEM-style automotive-grade bolts
  • Installation Guide

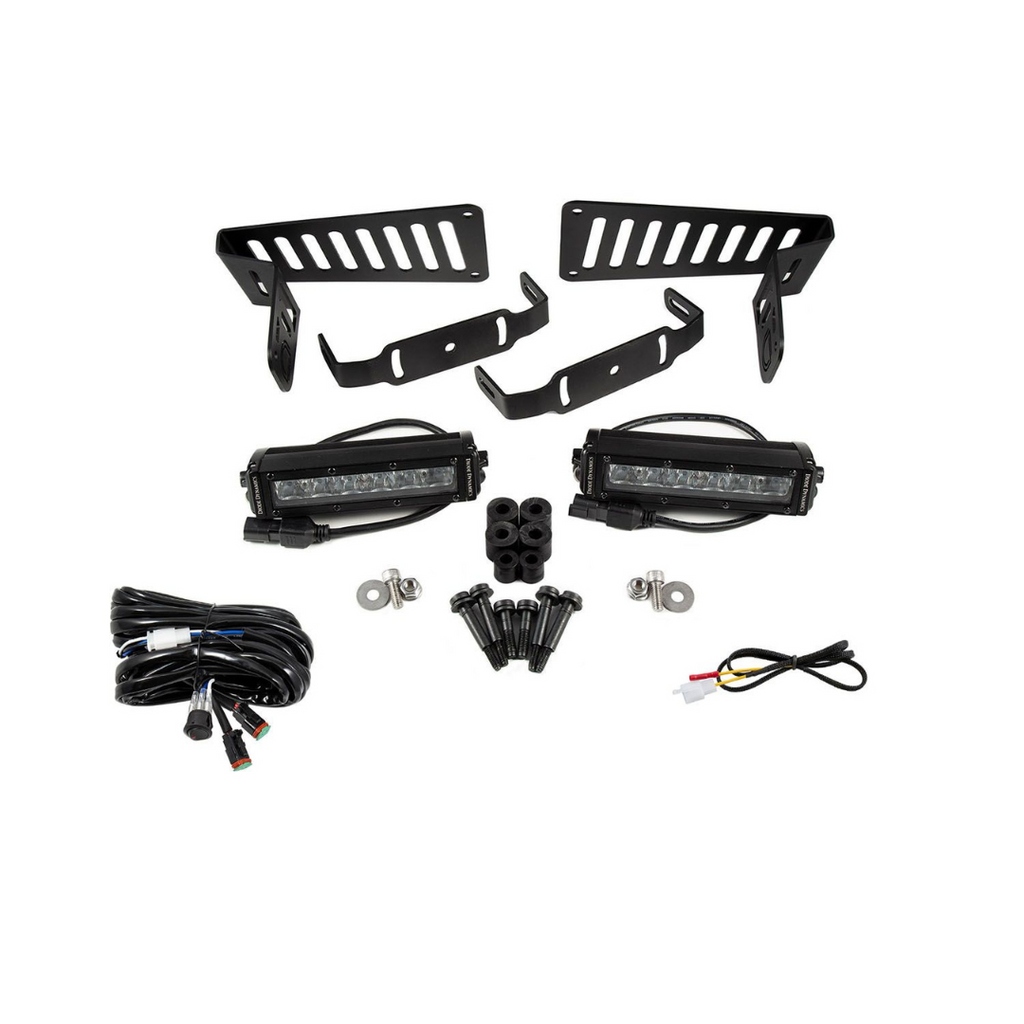

Cowl Mount Bracket Light Bar Kit:
  • Two (2) Application-specific cowl mount brackets for installation on 2018-2023 Jeep Wrangler
  • Two (2) U-brackets
  • Two (2) SS6 Stage Series 6" Light Bars
  • One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
  • One (1) Aux Switch Adapter Wire
  • One (1) Light-Duty Dual Output Harness
  • Six (6) Delrin spacers
  • Six (6) OEM-style automotive-grade bolts
  • Installation Guide

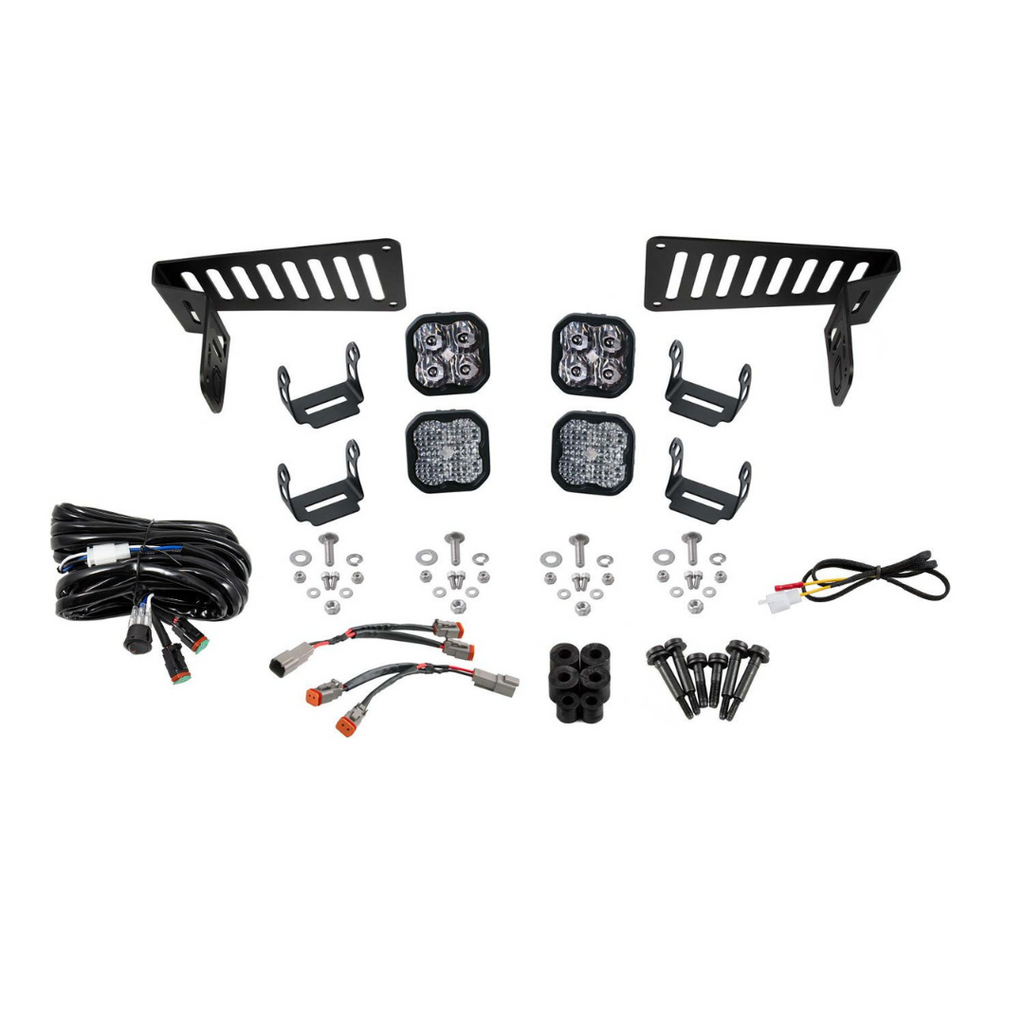

Cowl Mount Bracket SS3 Pod Kit:
  • Two (2) Application-specific cowl mount brackets for installation on 2018-2023 Jeep Wrangler
  • Four (4) Universal SS3 Mounting Brackets
  • Two (2) SS3 LED Pods, Driving Optic
  • Two (2) SS3 LED Pods, Flood Optic
  • One (1) Heavy-Duty Dual Output 2-Pin Offroad Wiring Harness
  • One (1) Aux Switch Adapter Wire
  • Two (2) 2-Way DT Splitters
  • Six (6) Delrin spacers
  • Six (6) OEM-style automotive-grade bolts
  • Universal SS3 mounting hardware
  • Installation Guide

Fitment

NOTE: This kit is compatible with all Sport, Sport S, and Sahara trim levels. This kit IS NOT compatible with the Unlimited 4XE model or the 392 XR Rubicon, Mojave trim levels.

  • Make: Jeep
  • Model: Wrangler
  • Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
  • Electrical Compatibility: No electrical issues (tested and confirmed)

Installation

  • Bracket Kit Installation Guide: Click to download
  • Installation Time: 20-30 minutes
  • Tools Needed: Basic Toolset
  • Modification: None
Specification
  • Datasheet(s) (click to download): SS3 Sport White StandardSS3 Sport Yellow StandardSS3 Pro White StandardSS3 Pro Yellow Standard
  • Color Temp (CCT): 2000K, 3000K, 6000K
  • Beam Angle: Driving, 20°x8°, Flood, 80°x50°
  • Power (watts): Sport: 14.5, Pro: 36, Bar: 26.6
  • Operating Voltage: 9-16V
  • Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7, Bar: 1.9
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Luxeon Z ES, Cree XP-L HI
  • Connector(s): Deutsch DT Input
  • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Rubber Gasket
  • Cooling: Passive, heatsink
  • Compliance Ratings: SAE J575 Durability Test
  • Intrusion Ratings: IP67 Weatherproof, IP68 Waterproof
  • Product Dimensions (in): 7x3x1.63

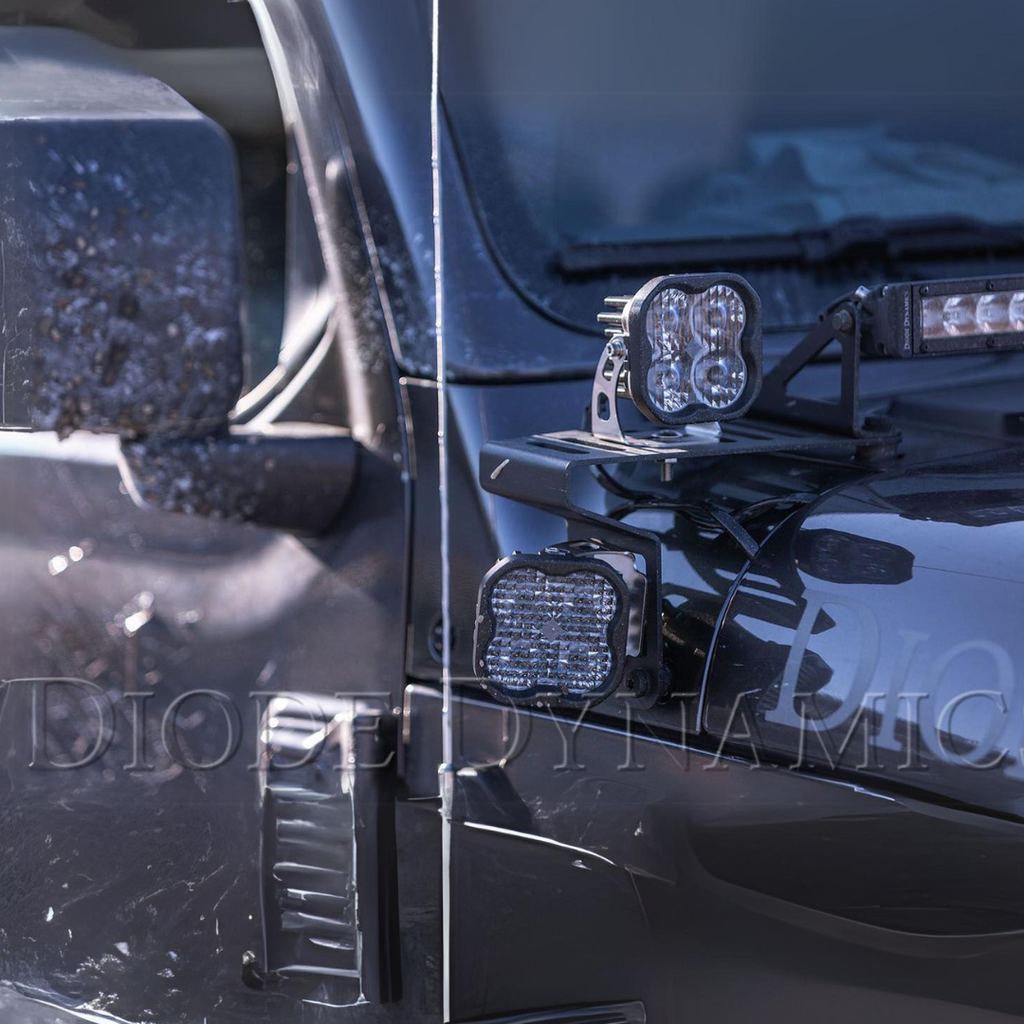

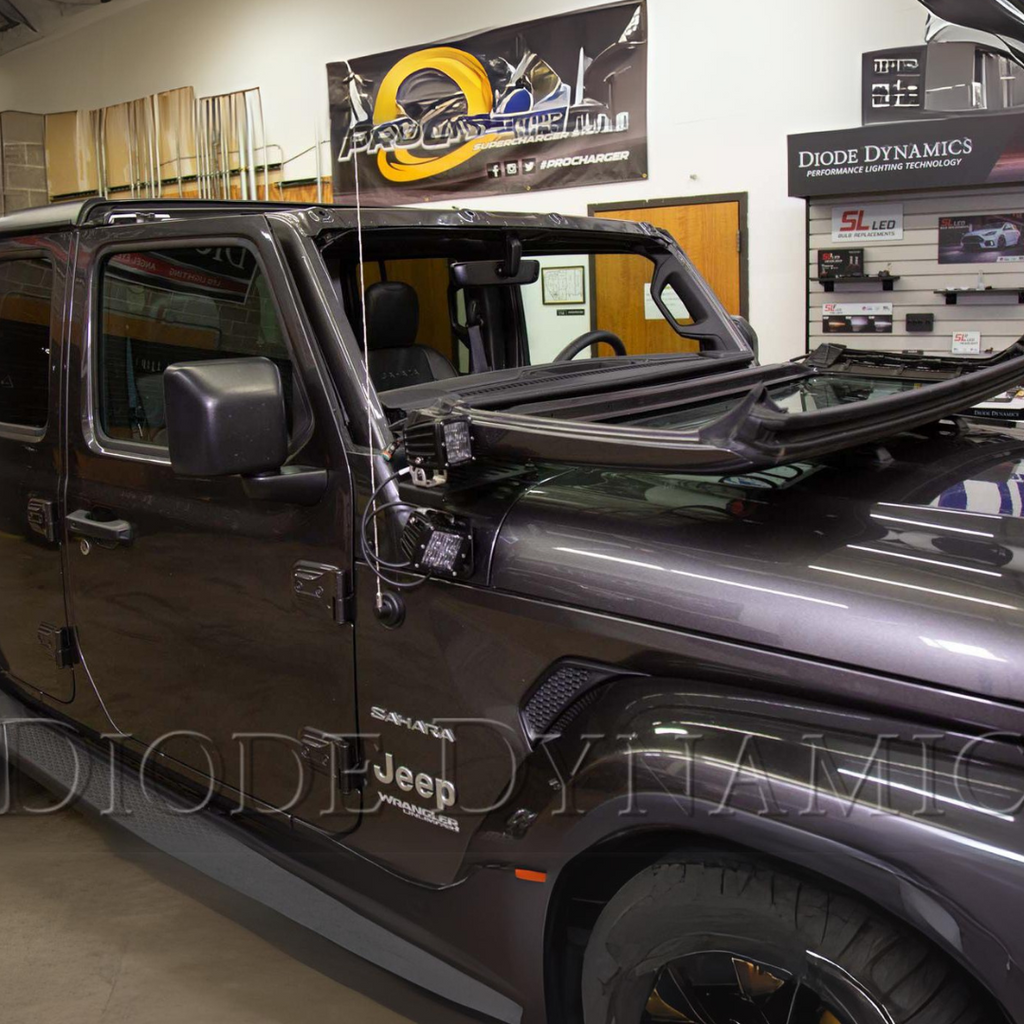

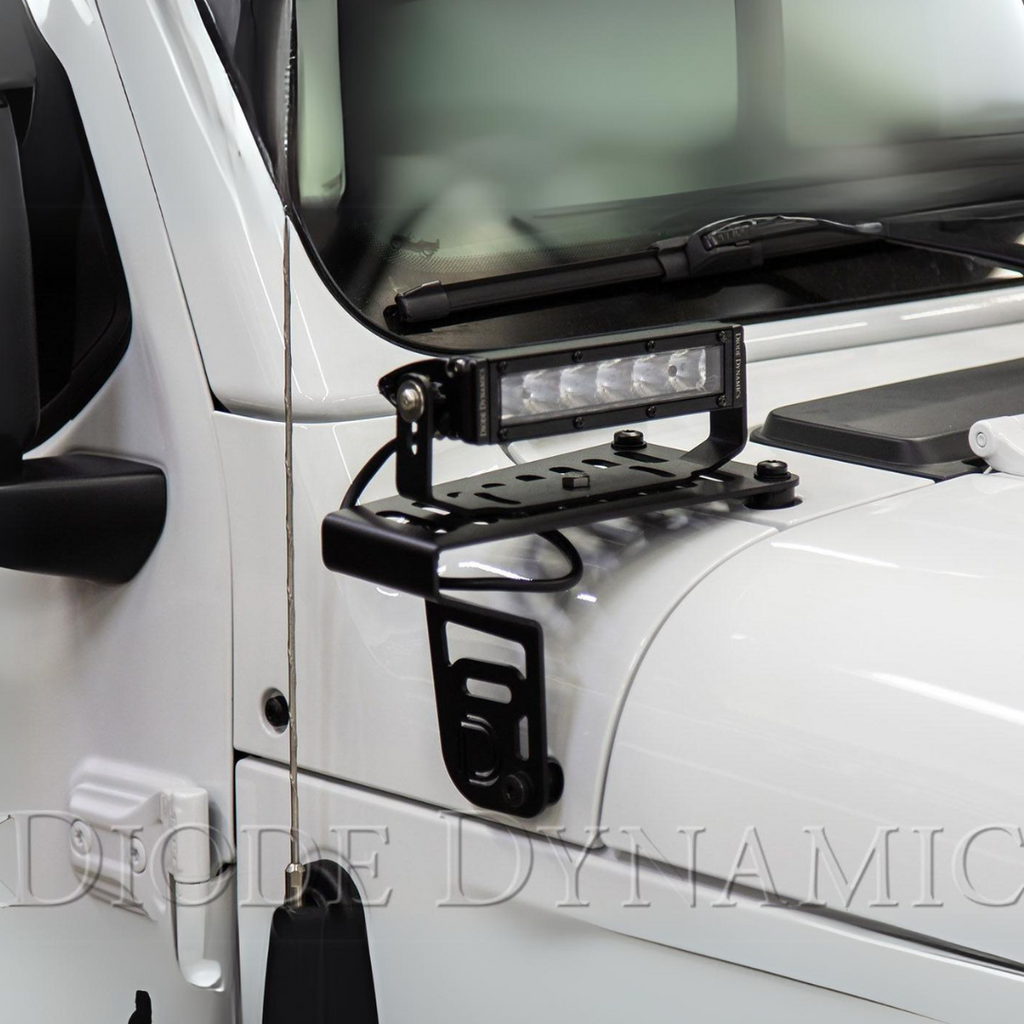

Endless mounting options. These brackets were designed with a variety of different mounting points for endless mounting options. You can mount multiple pods, a larger worklight, or even a small light bar to achieve the look you're after! There are even slots on the side of the bracket to mount ditch lights. When standard pods are installed on the outer slot, you can fold the windshield down without removing your auxiliary lighting.

Not your average hardware. The hardware included with this kit is OEM-style, automotive grade hardware. This hardware isn't from the hardware store - it was custom designed for this kit with integrated washers and the same OEM finish as the factory hardware. The Delrin spacers are long-lasting and won't wear over time.

Control through aux switch bank. Included with the full light bar kit is our new OEM aux switch adapter wire. This wire allows you to control your auxiliary lighting using the factory-installed aux switch bank. For those who don't have the aux switch bank, our Heavy Duty Dual-Output Wiring Harness is also included to mount a switch and connect directly to the battery.

Designed for performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. The light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.

This product is an aftermarket modification and is not affiliated with or endorsed by Toyota or any other vehicle manufacturer. The user/installer assumes all liability in using this product.
