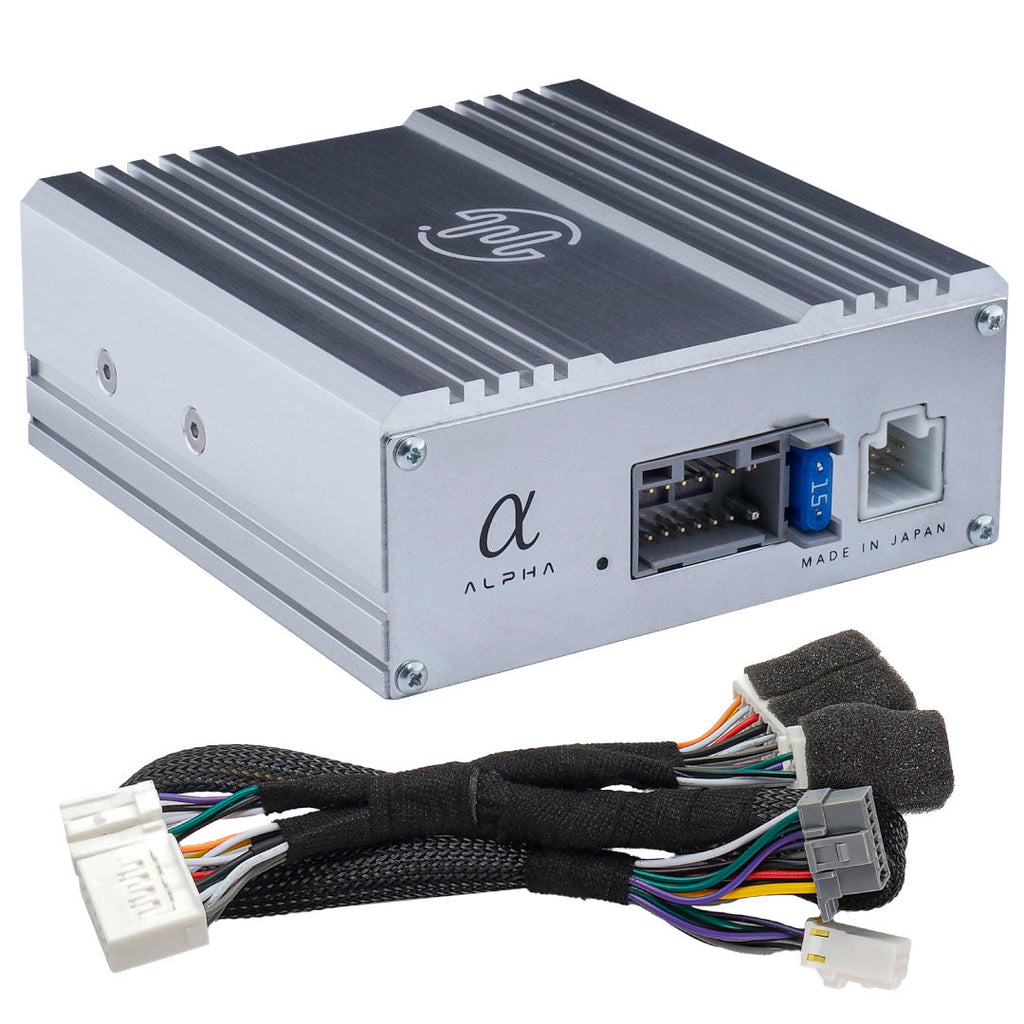

Transform your factory audio system with the Beat-Sonic ENA-3S1 Plug & Play Amplifier Kit, designed for select Subaru vehicles and the Toyota GR86. Delivering improved sound clarity, enhanced bass response, and more powerful audio performance, this compact amplifier allows you to get more out of your factory stereo without replacing your head unit or speakers.
Upgrade Your Factory Audio Without Replacing Your Stereo
Featuring 50W x 4-channel peak output and a dedicated RCA subwoofer output, the ENA-3S1 enhances your listening experience with clearer vocals, richer mids, and more detailed sound reproduction. Its plug-and-play design integrates seamlessly with your factory audio system while retaining your original display, steering wheel controls, and factory features.
Best of all, installation requires no cutting, splicing, or permanent wiring modifications, making it an excellent solution for drivers looking to upgrade their sound system while maintaining a factory appearance.
Features
-
Plug-and-Play Installation: Vehicle-specific wiring connections eliminate cutting, splicing, and factory harness modifications.
-
50W x 4-Channel Peak Output: Provides increased amplification for improved audio performance.
-
Dedicated RCA Subwoofer Output: Easily connect a compatible powered subwoofer for enhanced bass on supported non-Harman Kardon systems.
-
Harman Kardon Compatibility: Supports select factory Harman Kardon and non-Harman Kardon audio configurations.
-
Premium FET Operational Amplifiers: High-quality audio circuitry helps reproduce vocals, instruments, and subtle musical details with greater accuracy.
-
Enhanced Frequency Response: Premium low-impedance capacitors and 70μ copper construction help improve sound reproduction across low, mid, and high frequencies.
-
Retains Factory Audio Features: Preserves your original head unit, display, steering wheel controls, and factory functionality.
-
Compact Amplifier Design: Space-saving housing allows flexible installation behind the dashboard.
-
Aftermarket Speaker Compatible: Supports 4Ω to 8Ω aftermarket speakers on applicable non-amplified systems.
-
Made in Japan: Precision-engineered with high-quality components for reliable audio performance.
Enhanced Sound Quality With Your Factory Stereo
Factory Subaru and Toyota GR86 audio systems can lack the power and clarity needed to fully reproduce your favorite music. The Beat-Sonic ENA-3S1 addresses these limitations by improving audio amplification while maintaining seamless integration with your existing stereo equipment.
Its high-quality internal components help deliver cleaner vocals, improved instrument separation, and a fuller, more dynamic listening experience.
Whether you're listening to music, podcasts, or your favorite playlists, the ENA-3S1 helps bring out the potential of your factory audio system without requiring an expensive stereo replacement.

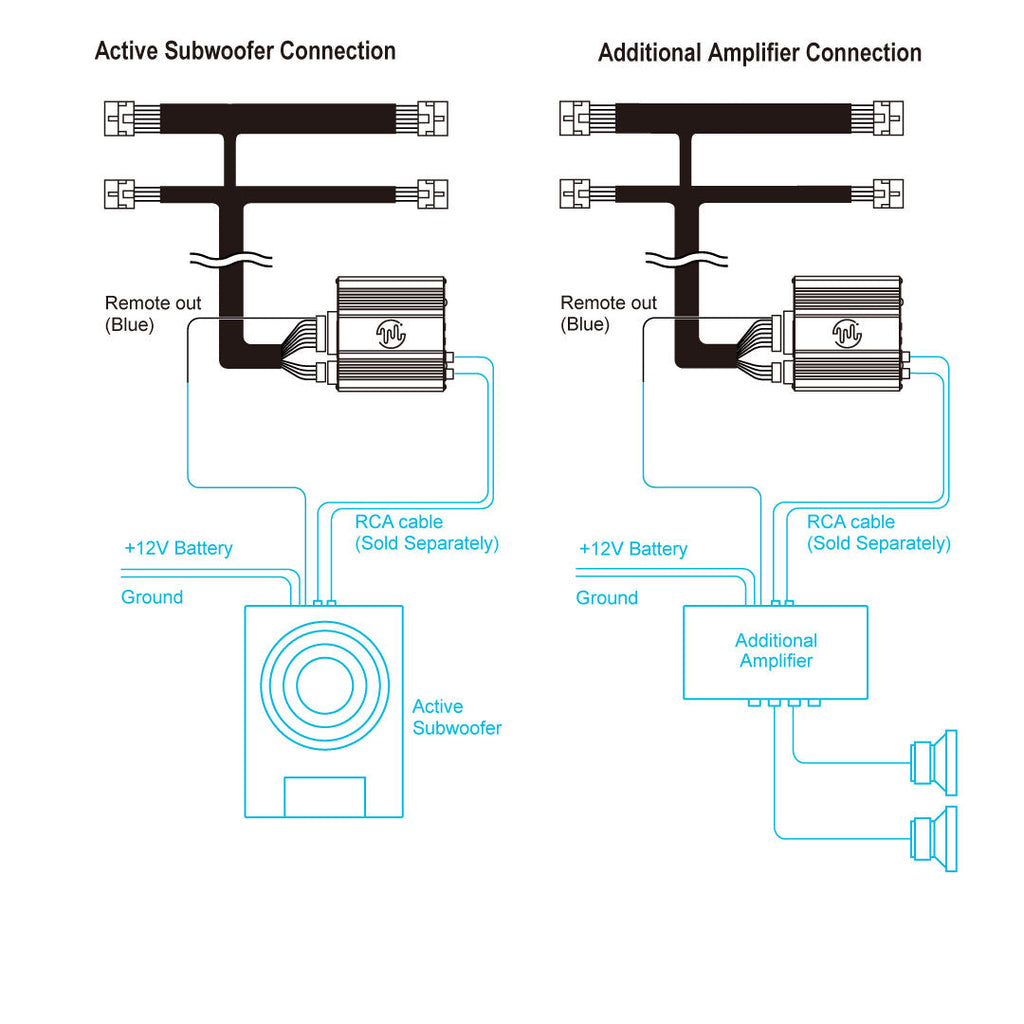

Easily Add a Powered Subwoofer
Looking for deeper bass without completely rebuilding your audio system? The ENA-3S1 features a dedicated RCA subwoofer output, allowing compatible non-Harman Kardon systems to connect to a powered subwoofer without requiring a separate line output converter.
This makes it an excellent choice for drivers looking to improve their overall sound quality while leaving room for additional bass upgrades.
Important: RCA subwoofer output functionality is intended for non-Harman Kardon systems. On Harman Kardon-equipped vehicles, the factory volume control does not properly regulate an aftermarket subwoofer connected through the ENA-3S1 RCA outputs. Refer to the Harman Kardon compatibility notes below.
Vehicle Compatibility
The Beat-Sonic ENA-3S1 is compatible with select Subaru and Toyota GR86 vehicles.
Toyota
| Model |
Compatible Years |
| GR86 |
2022–2026 |
Subaru
| Model |
Compatible Years |
Audio Configuration |
| BRZ |
2013–2026 |
Compatible factory audio systems |
| Forester |
2013–2017 |
Compatible factory audio systems |
| Forester |
2018–2026 |
Non-Harman Kardon requires VAZ-A02K |
| Impreza |
2015–2020 |
Compatible factory audio systems |
| Impreza |
2021–2026 |
Non-Harman Kardon requires VAZ-A02K |
| Legacy |
2015–2020 |
Compatible factory audio systems |
| Legacy |
2021–2025 |
Non-Harman Kardon requires VAZ-A02K |
| Outback |
2016–2019 |
Compatible factory audio systems |
| Outback |
2020–2025 |
Non-Harman Kardon requires VAZ-A02K |
| WRX |
2016–2021 |
Compatible factory audio systems |
| WRX |
2022–2026 |
Non-Harman Kardon requires VAZ-A02K |
| Crosstrek |
2016–2023 |
Compatible factory audio systems |
| Crosstrek |
2024–2027 |
Non-Harman Kardon requires VAZ-A02K |
Important Fitment Notes:
-
Compatibility varies by vehicle year, model, trim, and factory audio configuration.
-
Select newer Subaru models without Harman Kardon require the additional VAZ-A02K adapter module.
-
When ordering for an applicable non-Harman Kardon vehicle, select the "Without Harman Kardon (Includes Required Module)" option to receive the necessary adapter.
-
Harman Kardon-equipped vehicles are supported where applicable, but RCA subwoofer output functionality has limitations.
-
Please verify your vehicle's factory audio system before purchasing.
Important Harman Kardon Subwoofer Compatibility Notice
Although the ENA-3S1 supports select factory Harman Kardon audio systems, its RCA subwoofer outputs have a known limitation when used with an aftermarket powered subwoofer.
On Harman Kardon-equipped vehicles, the factory radio's volume control does not regulate the aftermarket subwoofer connected through the RCA outputs. This means the subwoofer may continue playing even when the factory stereo volume is turned down to zero.
A powered subwoofer with a separate bass volume control can provide independent adjustment, but it does not restore factory volume synchronization.
If you do not plan to connect an aftermarket subwoofer through the RCA outputs, this limitation does not affect normal amplifier operation on compatible Harman Kardon systems.
Technical Specifications
| Specification |
Details |
| Maximum Power Output |
50W x 4 Channels (Peak, 4Ω) |
| Compatible Speaker Impedance |
4Ω–8Ω |
| Input Sensitivity |
0.5V–5V |
| Frequency Response |
15Hz–80kHz (+0 / -1dB) |
| Total Harmonic Distortion |
0.01% (1kHz / 4Ω) |
| Operating Voltage |
DC 11V–15V |
| Nominal Power Supply |
DC 12V, Negative Ground |
| Current Consumption |
0.2A (No Signal) |
| Fuse Rating |
15A |
| Audio Connections |
RCA Subwoofer Output / Speaker-Level Input |
| Dimensions |
96mm W x 40mm D x 113.5mm H |
| Weight |
420g |
| Country of Origin |
Japan |

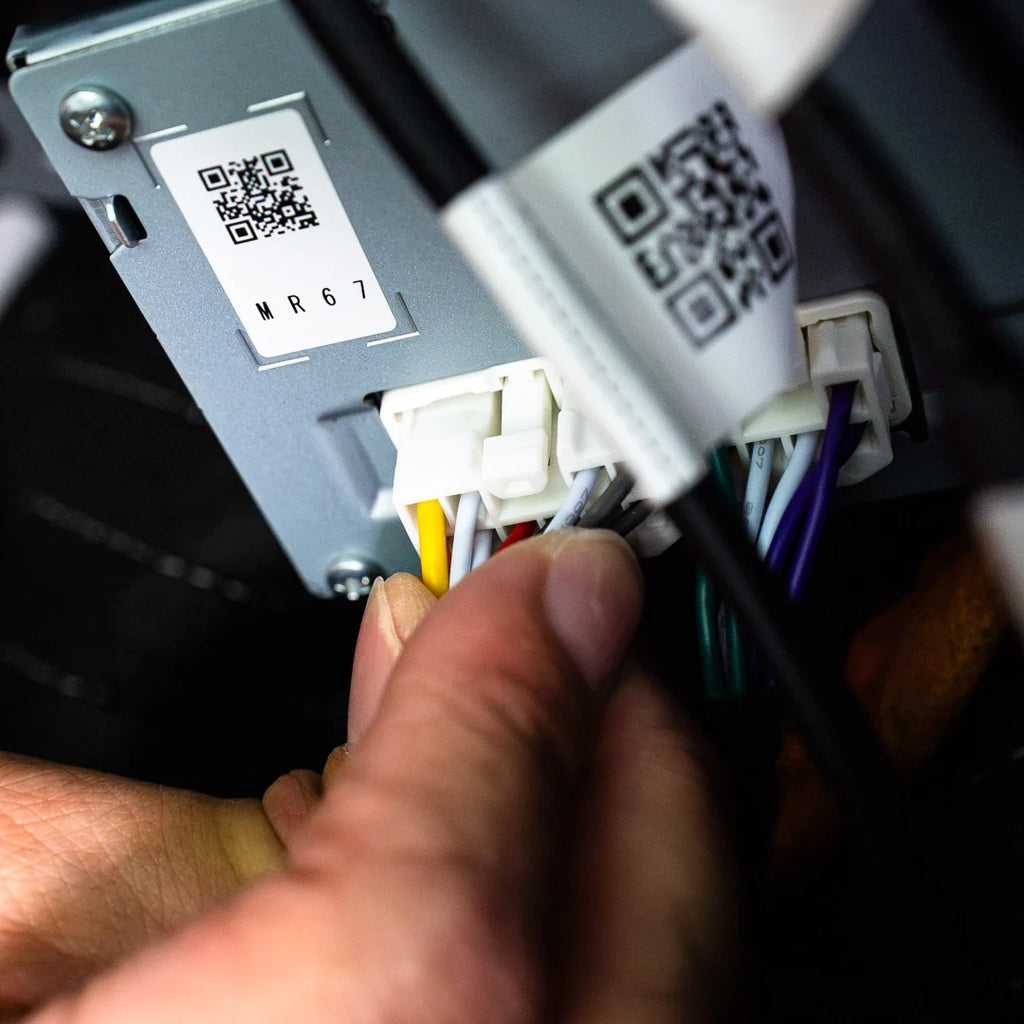

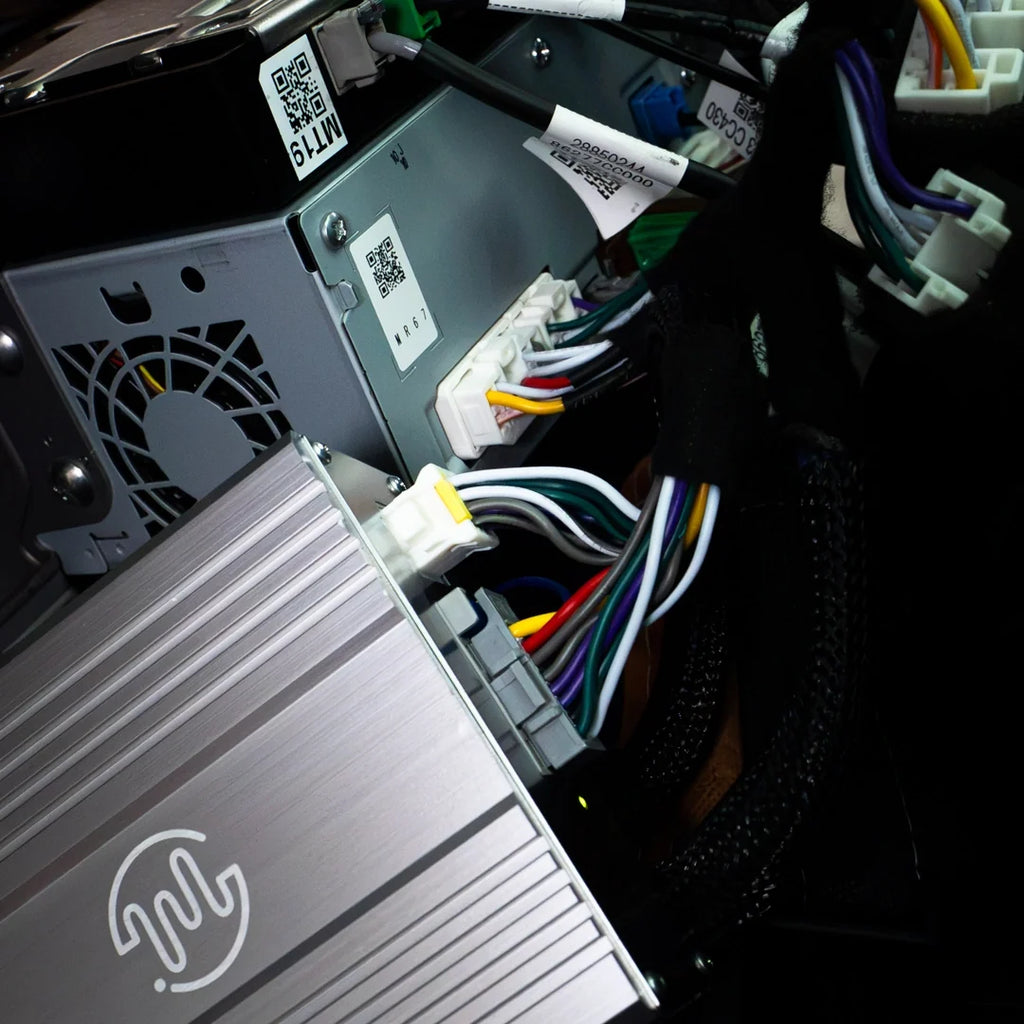

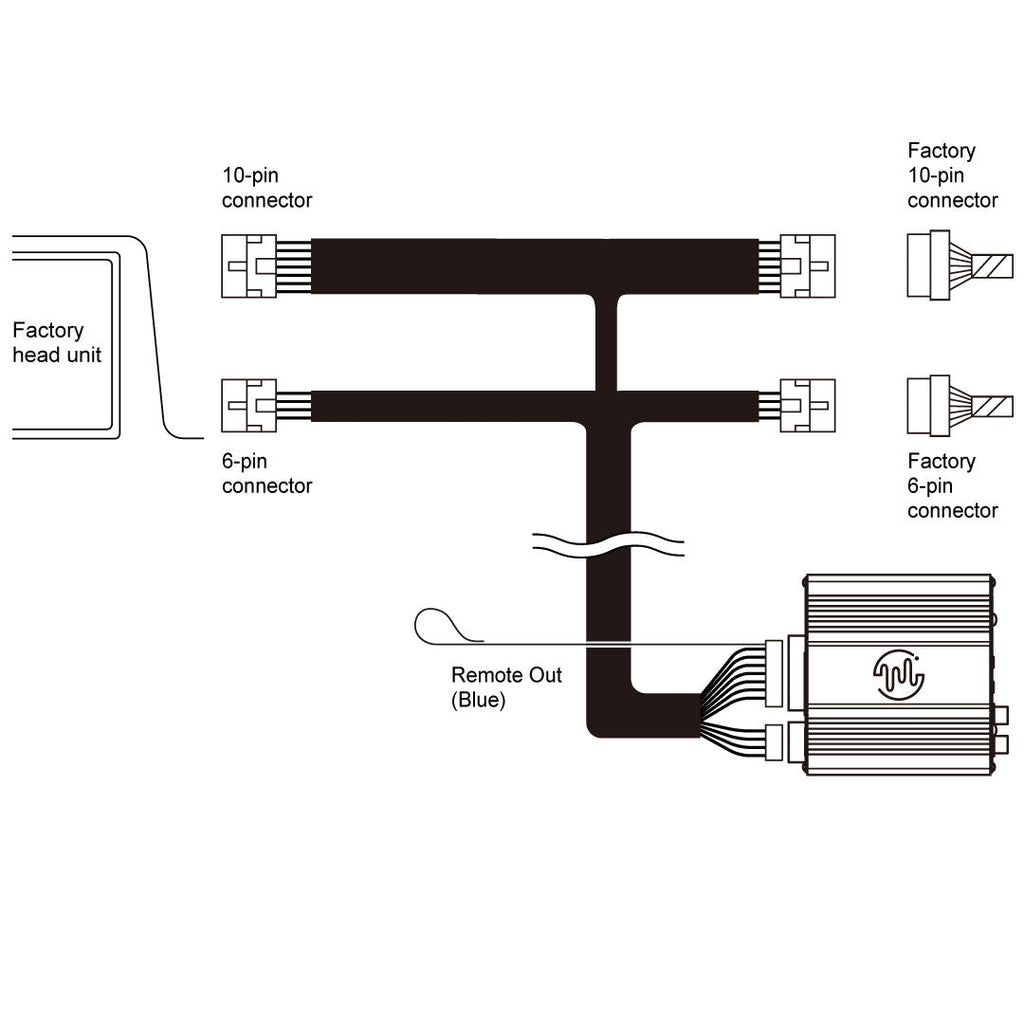

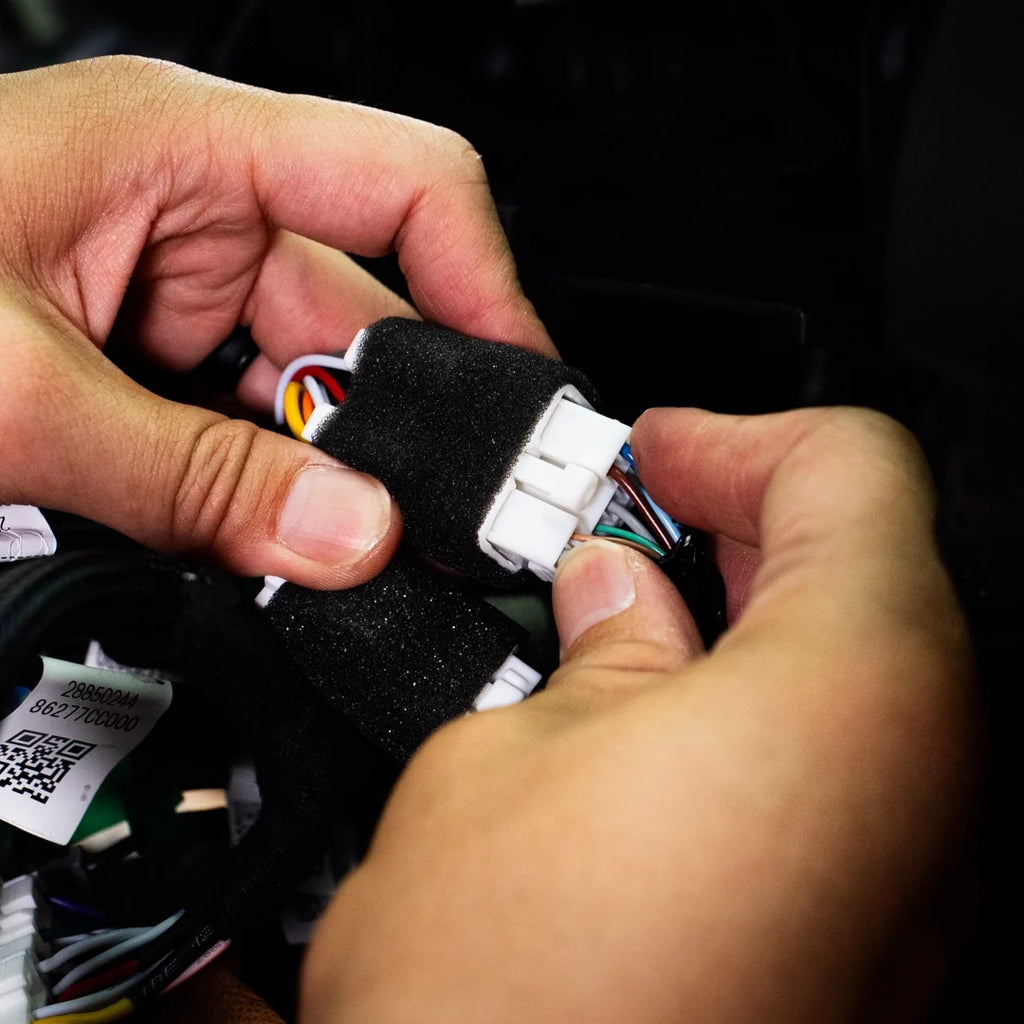

Simple Plug-and-Play Installation
The Beat-Sonic ENA-3S1 is designed for straightforward installation using vehicle-specific plug-and-play connections. No cutting, splicing, or permanent modifications to your factory wiring harness are required.
Its compact design allows the amplifier to be installed discreetly behind the dashboard while preserving your vehicle's original interior appearance.
Most installations can be completed in approximately two hours, depending on vehicle configuration and installer experience.
Frequently Asked Questions
Do I need to replace my factory speakers or stereo?
No. The ENA-3S1 works with your existing factory head unit and speakers, providing improved audio performance without replacing original components.
Is this compatible with Harman Kardon audio systems?
Yes, select Harman Kardon-equipped Subaru vehicles are compatible. Be sure to select the correct factory audio configuration when ordering.
What is the VAZ-A02K module?
The VAZ-A02K is an additional adapter module required for select newer Subaru vehicles without Harman Kardon audio. Choose the appropriate non-Harman Kardon option when ordering to receive the required module.
Can I add a powered subwoofer?
Yes. The ENA-3S1 features a dedicated RCA subwoofer output for compatible non-Harman Kardon systems. Harman Kardon-equipped vehicles have a factory volume control limitation when using these outputs.
Will my steering wheel controls still work?
Yes. Your factory steering wheel controls, display, and original audio functions remain operational.
Can I use aftermarket speakers?
Yes. Compatible aftermarket speakers should have an impedance between 4Ω and 8Ω on applicable non-amplified systems.
Is the 50W x 4-channel rating RMS or peak power?
The advertised 50W x 4-channel output is a peak power rating, not continuous RMS output.
Will this work with an aftermarket head unit?
It may work with aftermarket head units provided the necessary factory connectors for the ENA-3S1 plug-and-play harness are retained.
How long does installation take?
Most installations take approximately two hours using the appropriate installation instructions.
Why Choose the Beat-Sonic ENA-3S1?
If you're looking to improve your Subaru or Toyota GR86 factory audio without replacing your stereo, speakers, or interior components, the Beat-Sonic ENA-3S1 offers an excellent combination of sound quality, convenience, and factory integration.
With its compact design, plug-and-play installation, premium Japanese engineering, and dedicated RCA subwoofer output for compatible systems, the ENA-3S1 provides a straightforward way to enjoy clearer, more powerful sound while preserving your vehicle's original features.
