See Further and Go Faster with all-new SS10 LED Light Bar! With higher light output, modern optics, and greater intensity than anything else on the market — plus advanced control and unmatched configurability — the new Stage Series Lightbars are the most capable lightbars available today.
Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.
- Modern welcome sequence and selectable backlight with SmartSelect technology.
- Now available in Sport, Pro, and Max power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
- Limited Lifetime Warranty.
- Made in USA with Global Materials.
Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.
Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.
Built for Every Application. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before. No matter the application, there is a Stage Series Lightbar for you!

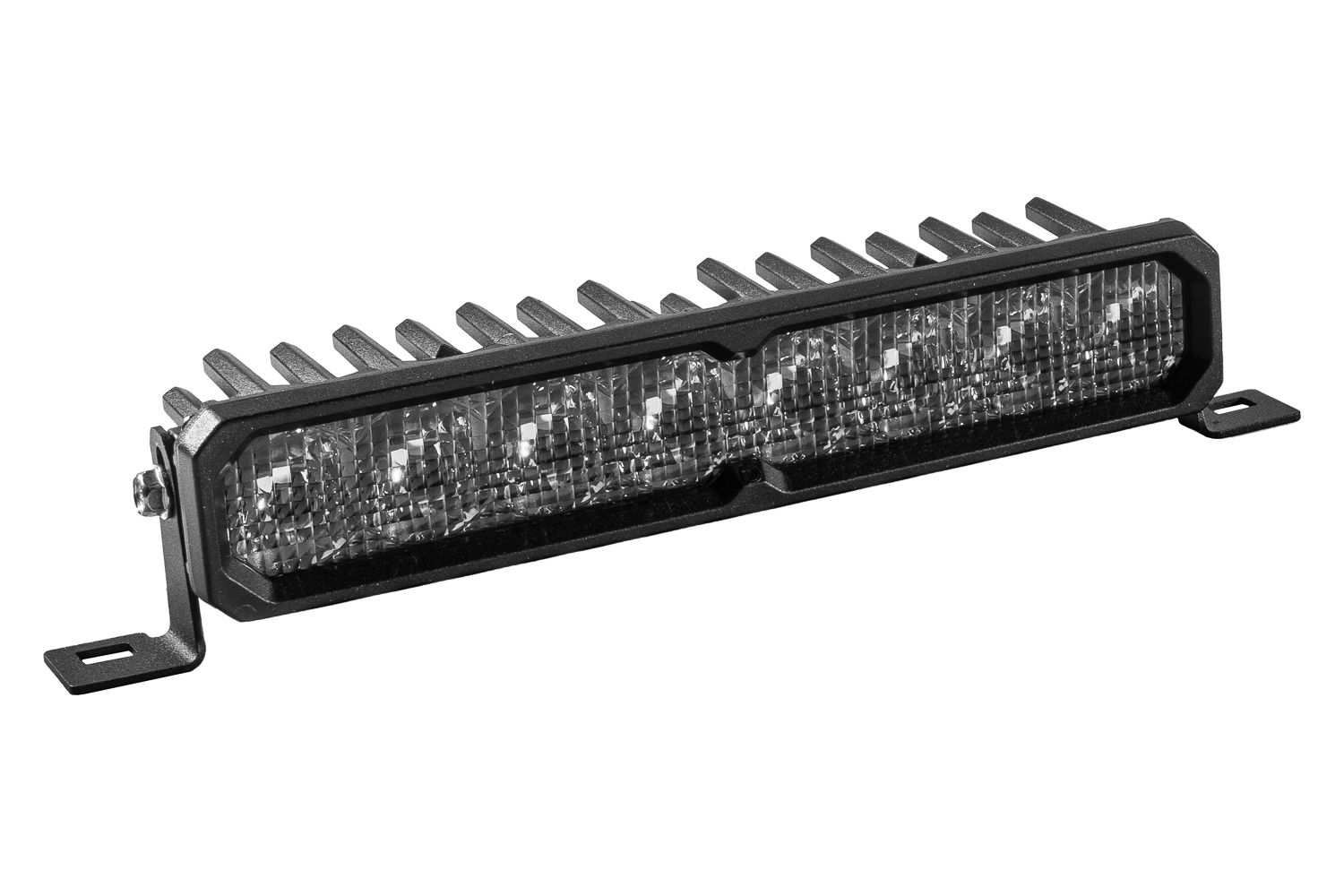

- The all-new Combo/Driving pattern has been engineered to blend distance and width into one balanced beam pattern. Everyone wants a great all-around light, and while other options on the market try to tackle this by combining two patterns, the resulting output is less than desirable–spot gives you a harsh hotspot, while a flood or wide pattern produces unwanted glare and wasted light. Our new Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees and gives you throw downrange while still providing ample foreground illumination. It’s the ideal choice when you want one bar that can handle just about any situation, and it elevates the standard for what a Combo light should be.
- SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra punch and distance ahead, without being a tight spot pattern. The SAE Driving pattern is a slightly broad-spot that balances reach and width with a spread of 20x12 degrees. If you’re looking to add extra distance and output to your setup, this is the perfect option.

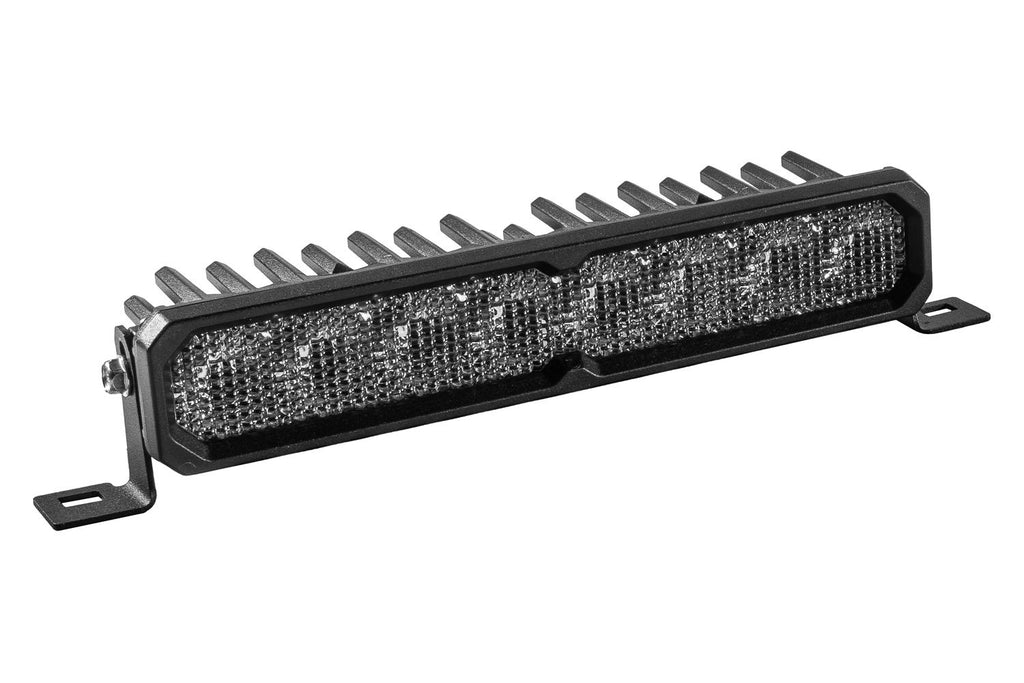

- Flood pattern provides a uniform, even illumination with a broad 100x80 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses advanced pillow optics on the outer lens surface, to provide a true optically-designed spread, for smooth, even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers, campsites, and work areas.
- Spot shines light directly from the unmodified TIR optic in a tight, long-distance beam, resulting in a highly focused 8x8 degree beam of light. The Spot pattern is ideal for high-speed desert racing, rally stages with big straightaways, or anytime you need to see far ahead with precision.
Fully Illuminated Backlight. Stage Series LED Light Bars now include a backlight that fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED light bars.

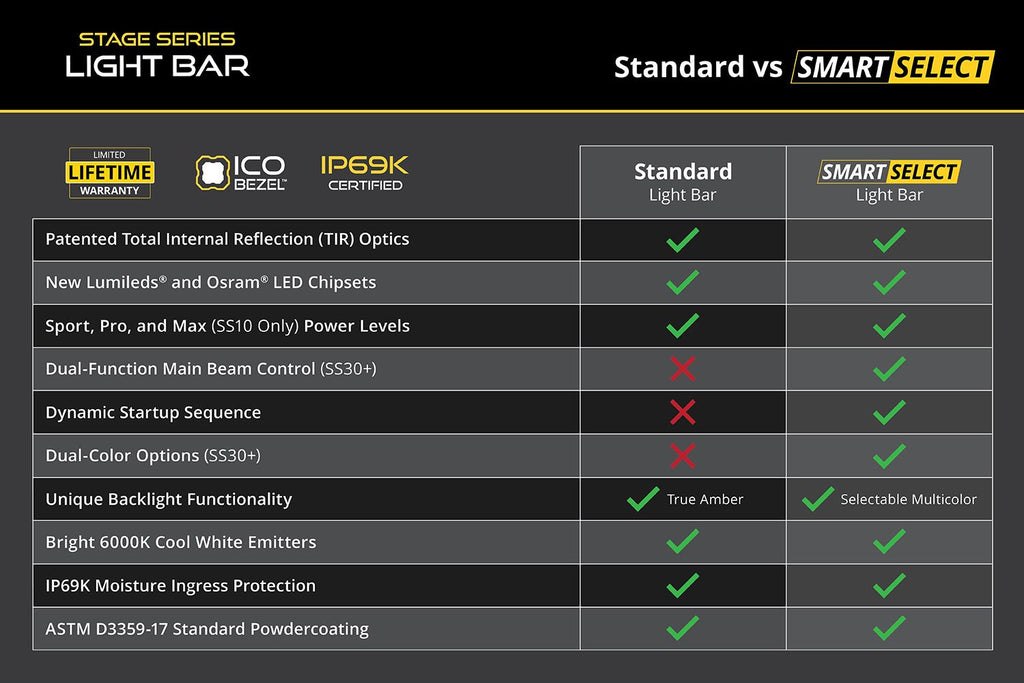

- SmartSelect models feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence. Anytime the backlight on your SmartSelect light bar powers on, the selected backlight color, with the exception of amber, will sequence back and forth across the entire bar before fully illuminating, for a truly premium appearance. The amber backlight color selection has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs, which perfectly matches the color of our smaller LED pods. This elevates the appearance far above other RGB or RGBW backlights on the market. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller!
- Standard models feature an amber-only backlight with no startup sequence. It provides a unique look and is perfect for forward-facing applications to provide extra visibility to others when stopped on the trail.

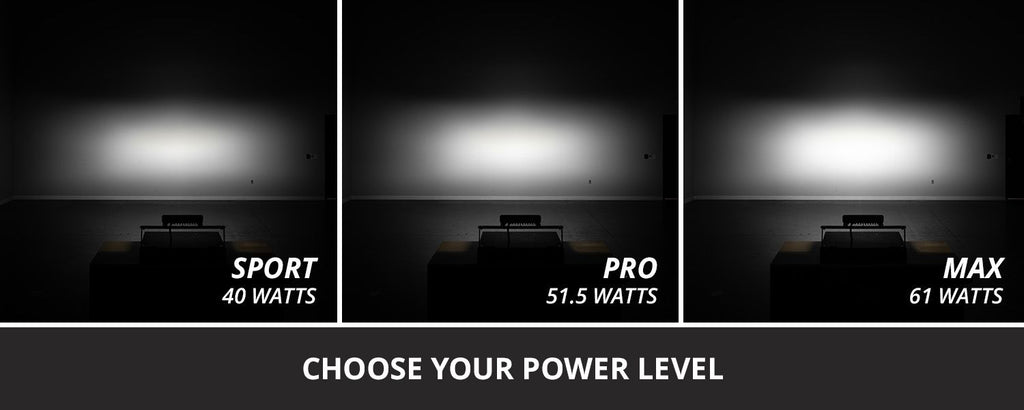

Choose Your Power Level. The SS10 LED Light Bar is available in three different power levels. All options use high-intensity, automotive-grade LED emitters and TIR optics for unmatched focus and output. The Sport model offers the best bang for your buck, while the Pro model takes things a step further with a noticeable boost in power. The Max model is designed with cutting-edge automotive emitters for both high power and extreme intensity, using the same Osram HX Boost LEDs found in our Max power level SS3 and C2 2.0 LED Pods.
Not Just Off-Road. When installed as a pair and aimed in accordance with your state's regulations, the SAE Driving pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light. Please check your local laws and regulations for aiming, installation, and applicability.
Swappable Optics and Colors. Just like the rest of our Stage Series lineup, the lenses on the SS10 LED Light Bar are swappable. All Stage Series LED light bars use 6000K Cool White LED emitters. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white!
Now you might be wondering - if you have a multicolor backlight, how does that work with a yellow lens? Don’t worry. Our engineers included a small toggle switch on each circuit board. When swapping out a lens, you can configure that section to be either white or yellow, which will ensure the backlight functions according to the selected lens color. Click here to view our full lineup of replacement lenses.
Snap-On Covers. Protect your investment or take the customization even further with our full lineup of Snap-On Lens Covers! Available in clear, smoked, yellow, black, or amber, these covers install in seconds with no tools required. Just snap on and go!
Crosslink. Looking to customize your setup even further? The SS10 is compatible with our mini CrossLink technology, allowing you to connect multiple LED light bars to create your own unique configuration, including curved setups. Click here to view our Stage Series LED Light Bar CrossLink mounting solution.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
What's Included
In the Box:- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set
Specifications
- Color Temp (CCT): 6000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 40, Pro: 51.5, Max: 61
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 3.13, Pro: 4.00, Max: 4.77
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure

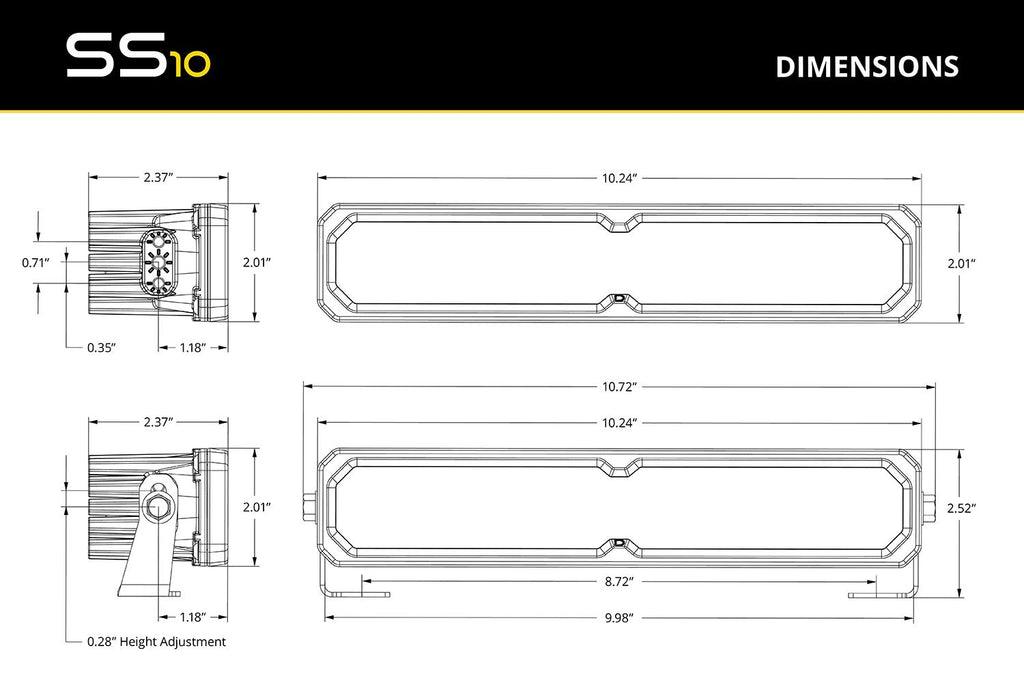

- Product Dimensions (in): 2.01x10.24x2.37
If this product offers customization, please include all requested details in the product options or cart notes where applicable.
Important: We do not produce, apply, or fulfill any customizations that include Toyota®, Lexus®, or any other OEM trademarks, logos, or brand identifiers. Any such requests will be declined or modified to comply with trademark guidelines.
All customized items are made-to-order and are non-refundable and non-returnable once production has begun.
For design-related questions, please contact us at sales@aspireautoaccessories.com.
Aspire Auto Accessories is an independent aftermarket company and is not affiliated with, associated with, authorized by, endorsed by, or in any way officially connected with Toyota Motor Corporation®, Lexus®, or any of their subsidiaries or affiliates.
All manufacturer names, vehicle names, trademarks, logos, and images are the property of their respective owners and are used for identification and compatibility purposes only.
Use of these names, trademarks, and brands does not imply any affiliation or endorsement. Any products sold by Aspire Auto Accessories are aftermarket products and are not manufactured or approved by Toyota Motor Corporation® or Lexus®.
Any Toyota products listed on Aspire Auto Accessories is an aftermarket product and not OEM. The user/installer assumes all liability in using this product.
INSTALLATIONS
All products built and designed by Aspire Auto Accessories are intended for off-road use and should be assembled, installed, and used according to Manufacturers recommendations. Aspire Auto Accessories products should be used safely with good judgment towards others and the environment. By installing Aspire Auto Accessories products on your vehicle you assume all liability. Aspire Auto Accessories will not be held liable for damages or loss associated with the installation or use of its products.Be smart, use good judgement, and be safe***
WARNING
Neither the seller nor the manufacturer will be liable forany loss, damage, or injury directly or indirectly arising fromthe use of or inability to determine the use of these products. Before using,the user shall determine thesuitability of the product(s) for its intended use(s), andthe user shall assume allresponsibility and risk inconnection therewith.
At Aspire Auto Accessories, we stand behind our customers and are committed to helping resolve any product-related issues quickly and efficiently. If something isn’t right, our team is here to help every step of the way.
All products sold on our website are backed by the original manufacturer’s warranty. Warranty coverage, terms, and duration may vary depending on the manufacturer. We work closely with our vendors to help streamline the process and get your issue resolved as smoothly as possible.
If you need to start a warranty claim, please contact us at sales@aspireautoaccessories.com with your order number and a description of the issue. Our team will guide you through the next steps and, when necessary, coordinate directly with the manufacturer on your behalf.
Please note:
- Warranty claims are subject to the manufacturer’s terms, conditions, and approval.
- Damage caused by improper installation, misuse, accidents, or normal wear and tear is not covered.
- Labor costs, installation fees, and third-party modifications are not covered under warranty.
- Proof of purchase is required for all warranty claims.
- In some cases, customers may be required to work directly with the manufacturer to complete the claim.
Our goal is simple: keep you on the road (or trail) with confidence.
Shipping
We want you to get your products as soon as possible. That's why we make every effort to process and ship your order as quickly as possible. All updates will be sent directly to your email automatically. If you have an order placed and would like to track your order at anytime, please go here. Feel free to contact us by phone or email at any time to get updates from our customer service team.
To read our frequently asked questions and for more inforrmation on our shipping policy, please go here.
Returns and Exchanges
We want you to be sure you're as happy with your Aspire Auto Accessories products and other brands we offer as we are. If you are not satisfied with your purchase, you have 30 days after your purchase to return or exchange your item(s). Please use our portal to start your return or exchange. Go here to visit our portal.
Important note all sale items are final sale. No returns or exchanges can be given. Any used or opened products are not eligible to be returned. Please confirm vehicle fitment before purchase. Additional restocking fees may apply depending on product vendor.
To read our frequently asked questions and for more information on our return & exchange policy, please go here.
IT'S ALL IN THE OPTICS
Diode Dynamics patented TIR (Total Internal Reflection) optics have been re-engineered on our all-new Stage Series LED Light Bars for more intensity and more usable light output. The TIR optics harness all of the light from the LED and direct it precisely where you need it, cutting glare and boosting efficiency.
MULTIPLE POWER LEVELS
The SS10 LED Light Bar is available in Sport, Pro, and MAX power levels. With 61 watts of total power, the MAX model provides more output than any other 10-inch light bar on the market.
FOCUSED PERFORMANCE
Each beam pattern has been fine-tuned for real-world conditions, and with multiple beam patterns available, there is a Stage Series LED Light Bar for any lighting application.
BACKLIGHT FUNCTIONALITY
Stage Series LED Light Bars now feature a fully illuminated backlight that fills the TIR optic for a bold, distinctive look. SmartSelect models feature a selectable 8-color backlight with a dynamic startup sequence, elevating the appearance far above other multicolor backlights on the market.
MADE IN USA
This product is proudly engineered and *made in the USA using globally sourced materials for unmatched performance and reliability. At Diode Dynamics, we design, test, and manufacture with complete control in-house to ensure the highest standards of quality.
