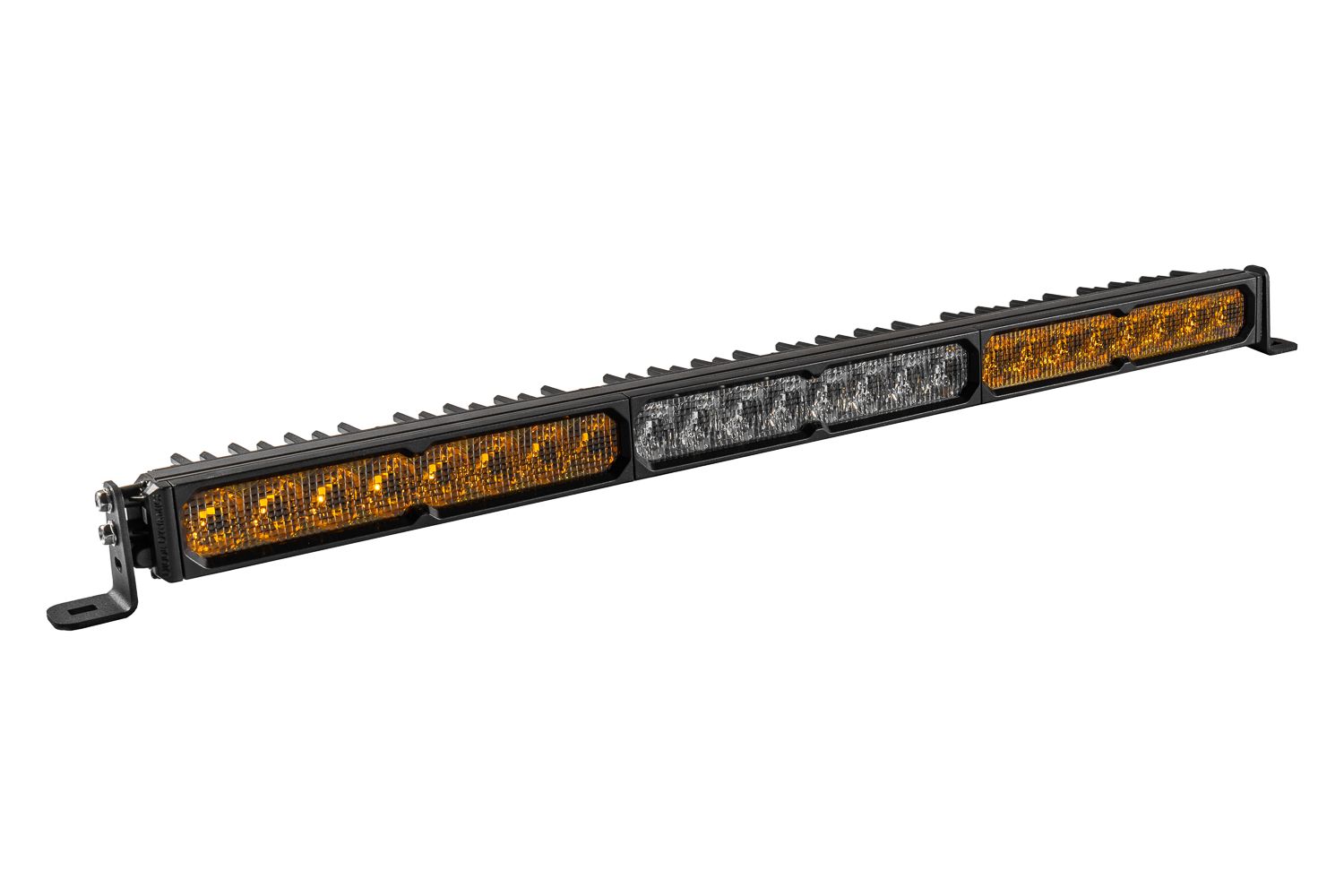

Diode Dynamics SS30 Dual-Color LED Light Bar (Single)


%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Need a different size or color? Go here

  • Patented TIR Optics for maximum efficiency and output.
  • Dual-function main beam, without the need for extra switches.
  • Modern welcome sequence and selectable backlight color with SmartSelect technology.
  • Available in Sport and Pro power levels.
  • Durable aluminum housing with ASTM-standard powdercoat finish.
  • Built for the extreme with IP69K waterproof rating.
  • Limited Lifetime Warranty.
  • Made in USA with Global Materials.
Choose Your Power Level: Sport (120 watts)
Price:
Sale price$674.95

Shipping calculated at checkout

Subtotal: $674.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

See Further and Go Faster with all-new SS30 Dual-Color LED Light Bar! With higher light output, modern optics, and greater intensity than anything else on the market — plus advanced control and unmatched configurability — the new Stage Series Lightbars are the most capable lightbars available today.

Features

  • Patented TIR Optics for maximum efficiency and output.
  • Dual-function main beam, without the need for extra switches.
  • Modern welcome sequence and selectable backlight color with SmartSelect technology.
  • Available in Sport and Pro power levels.
  • Durable aluminum housing with ASTM-standard powdercoat finish.
  • Built for the extreme with IP69K waterproof rating.
  • Limited Lifetime Warranty.
  • Made in USA with Global Materials.

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.

Built for Every Application. Stage Series Dual-Color LED Light Bars feature yellow Combo/Driving optics in the outer two segments, with white SAE Driving optics in the inner segment.

  • The all-new Combo/Driving pattern has been engineered to blend distance and width into one balanced beam pattern. Our Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees and gives you throw downrange while still providing ample foreground illumination.
  • SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra punch and distance ahead, without being a tight spot pattern. The SAE Driving pattern is a slightly broad-spot that balances reach and width with a spread of 20x12 degrees.

Dual-Function Main Beam. Thanks to SmartSelect technology, the SS30 Dual-Color Light Bar includes a dual-function main beam that allows you to run the inner segment only, outer segments only, or the full bar. Unlike other brands that require extra wiring or separate switches, this patented technology is programmed directly into the light bar. Simply cycle the main beam power a few times to toggle to the option you want.

This level of control is invaluable when dealing with varied terrain. When moving slowly, you can run just the outer yellow Combo/Driving segments for wide coverage without glare. Then, when moving fast, switch to the inner SAE Driving segment for greater visibility downrange. When conditions demand all-around visibility, light up the full bar!

Fully Illuminated Backlight. The SS30 Dual-Color LED Light Bar features an integrated backlight that fully illuminates the TIR optics, providing a custom look that sets your ride apart. The outer yellow segments feature a brilliant amber backlight, while the inner segment features a selectable multicolor backlight in your choice of eight colors. The amber backlight color has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs to produce true amber output. Selecting the backlight color of the inner segment is easy - simply alternate the power on and off. There’s no complicated programming with a controller!

Dynamic Startup Sequence. Anytime the backlight of the inner segment powers on, the selected backlight color, with the exception of amber, will sequence back and forth across the entire bar before fully illuminating, for a truly premium appearance.

Choose Your Power Level. The SS30 Dual-Color LED Light Bar is available in two different power levels. All options use high-intensity, automotive-grade LED emitters and TIR optics for unmatched focus and output. The Sport model offers the best bang for your buck, while the Pro model takes things a step further with a noticeable boost in power.

Swappable Optics and Colors. Just like the rest of our Stage Series lineup, the lenses on the SS30 Dual-Color LED Light Bar are swappable. All Stage Series LED light bars use 6000K Cool White LED emitters. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white!

Snap-On Covers. Protect your investment or take the customization even further with our full lineup of Snap-On Lens Covers! Available in clear, smoked, yellow, black, or amber, these covers install in seconds with no tools required. Just snap on and go!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
  • One (1) LED light bar
  • One (1) wire pigtail
  • Universal bracket set
Quantity: One (1) Warranty: Lifetime warranty Return Policy: 30-day Return with no restocking fee

Specifications

Specifications

  • Raw Lumens: Sport: 11,064 lm, Pro: 37,632 lm
  • Color Temp (CCT): 3000K, 6000K
  • Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°
  • Power (watts): Sport: 120, Pro: 165
  • Operating Voltage: 9-30V
  • Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
  • Connector(s): Deutsch DT-P Input
  • Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
  • Cooling: Passive, heatsink
  • Intrusion Ratings: IP69K Waterproof, High Pressure

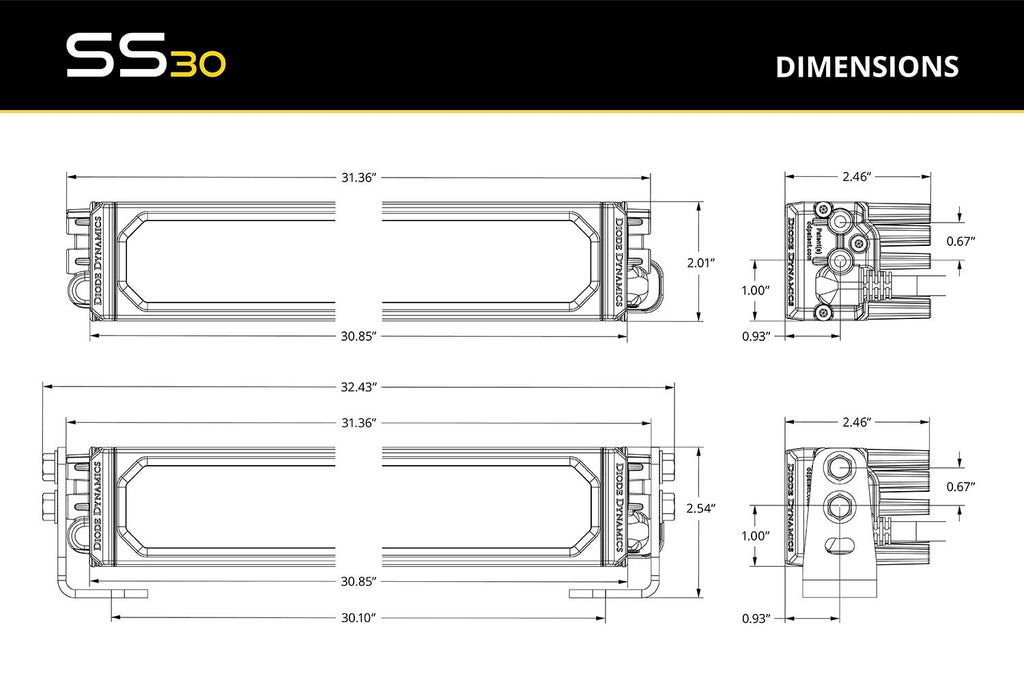

  • Product Dimensions (in): 2.01x31.63x2.46
