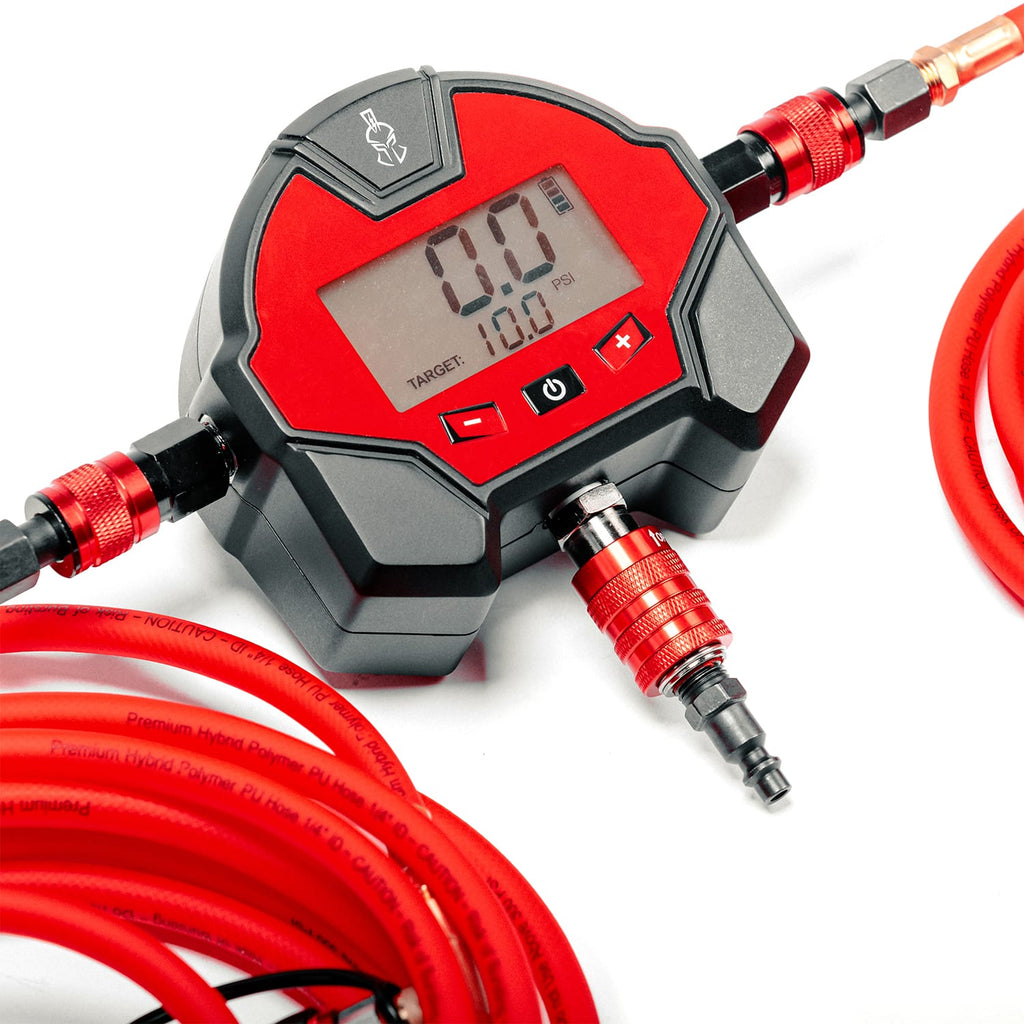

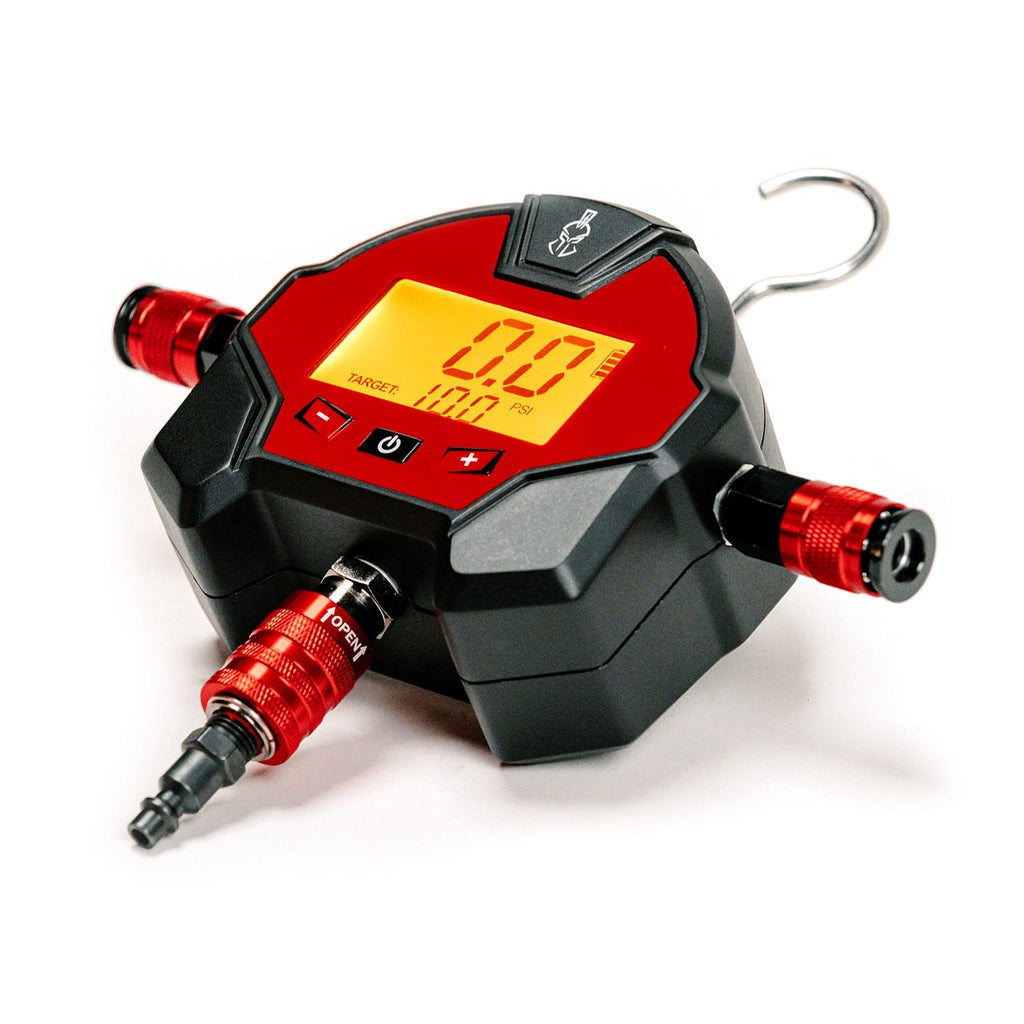

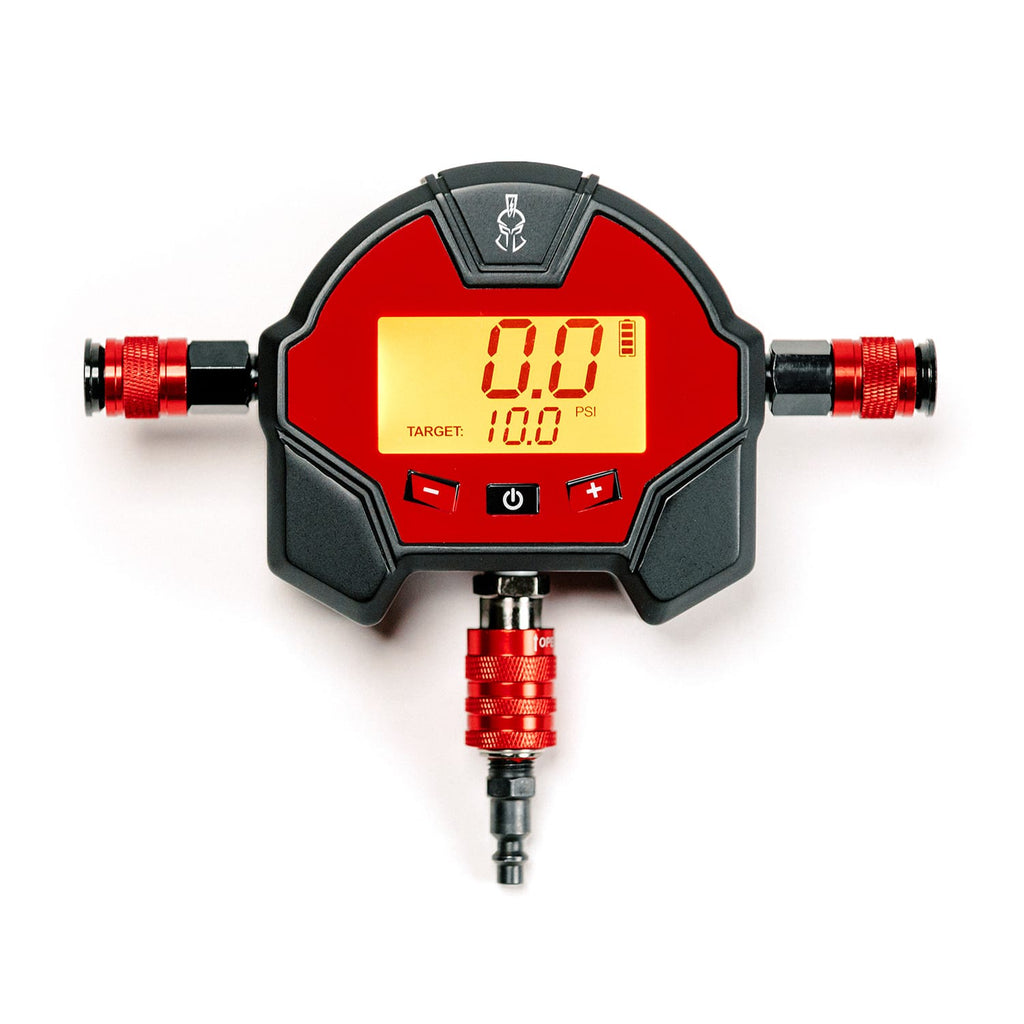

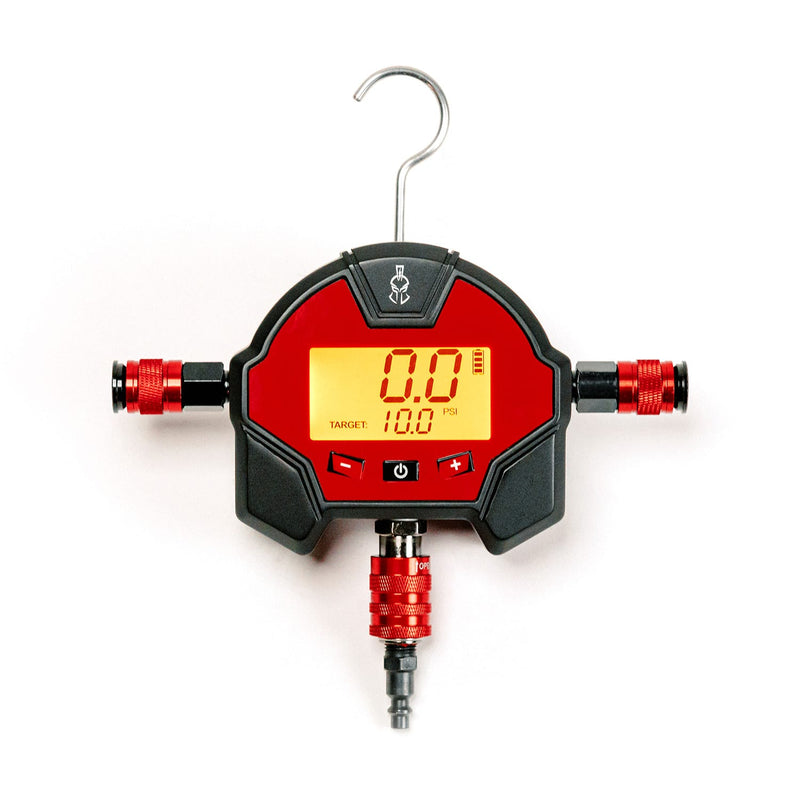

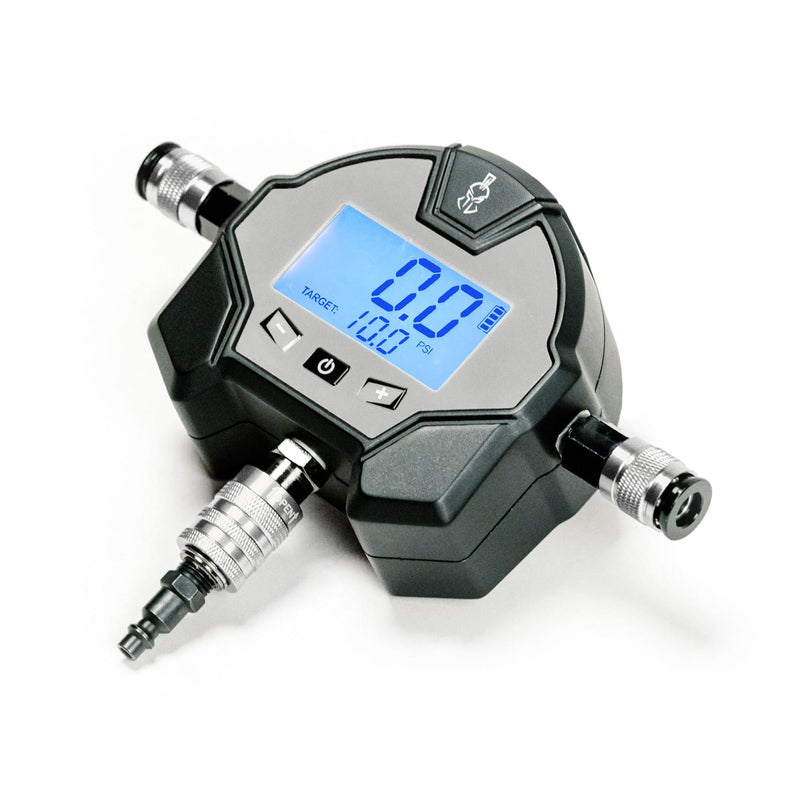

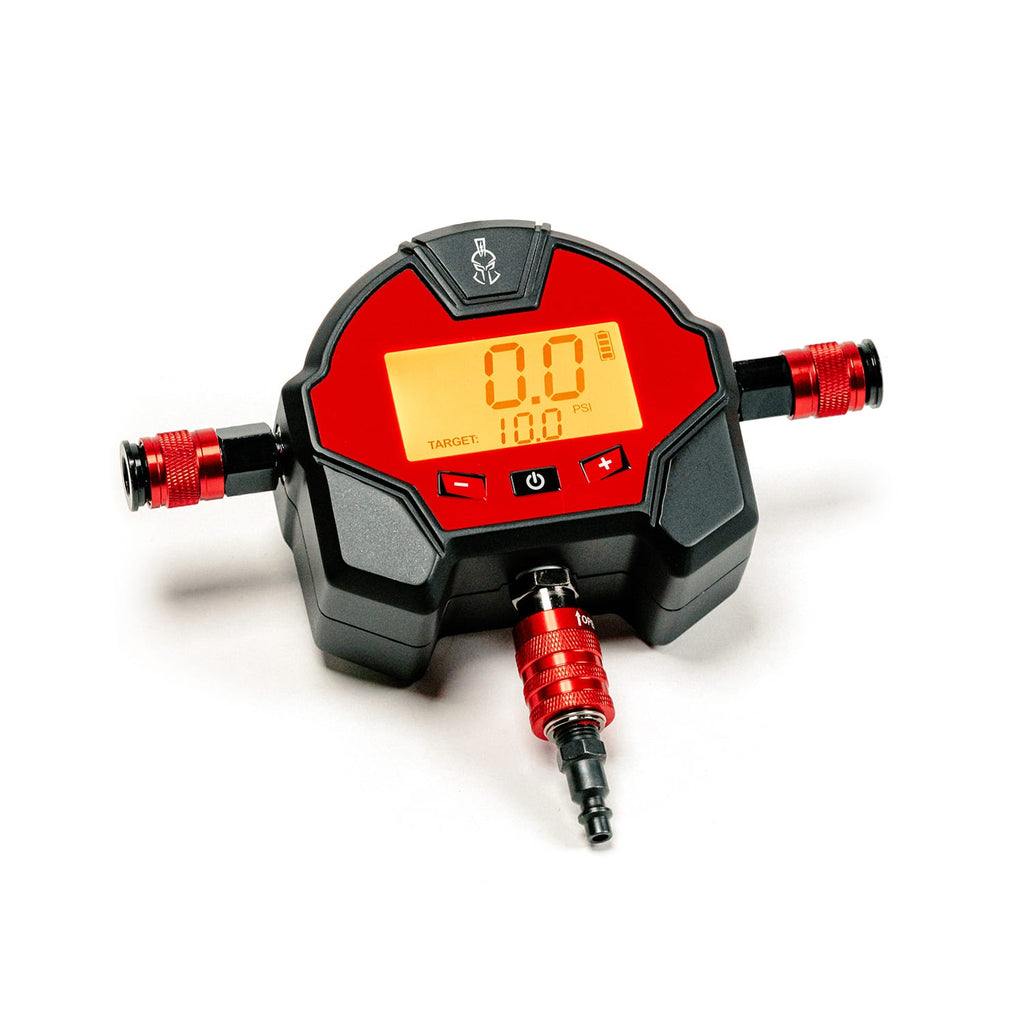

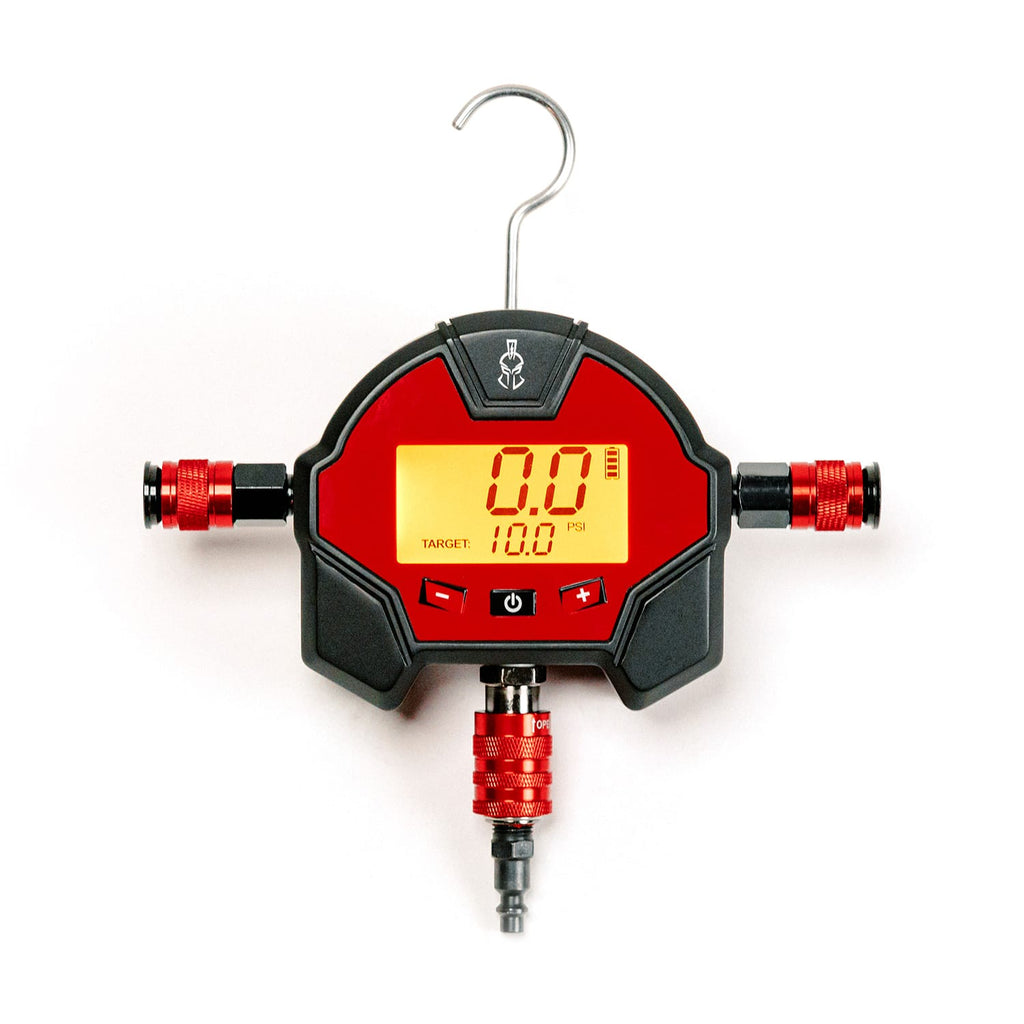

What is the Thor's Lightning TotalControl Digital Air Manifold?
The Thor's Lightning TotalControl Air Manifold allows for ANY air compressor equipped with a pressure switch to be outfitted with our TotalControl technology- which means you can set a target pressure for both inflation and deflation and the TotalControl technology will shut off the air.
No more babysitting your air source while your tires are deflated to trail pressure or inflated to trail pressure. What can you be doing instead? Getting your rig ready for the trail or the street, chatting with friends and family, or chowing down on food and drink- it's really up to you!
How does the TotalControl Digital Air Manifold work?
It's really simple- connect any number of tires you want via the two quick-disconnect fittings on either side of the TotalControl Air Manifold. Then, turn the unit on using the power switch and select the target pressure using the up and down arrows. From there, you can either open the air valve for deflation, or turn on your air compressor for inflation. The TotalControl Air Manifold will close the valve when the target pressure is reached!
The other thing that sets the TotalControl Air Manifold apart is it's power source- an onboard 15.4V lithium battery. No button batteries or disposable batteries to worry about, just power the unit on and you are ready to Be an Air Hero! The TotalControl Air Manifold is equipped with a USB-C charging port for easy charging and use of the unit during low battery operation.
What air compressors is the TotalControl Digital Air Manifold compatible with?
We couldn't possibly list them all because there are so many. ANY compressor equipped with a pressure switch can be paired with the TotalControl Air Manifold for inflation. The TotalControl Air Manifold will shut off the air flow when the target tire pressure is reached, which will trigger the pressure switch on the air compressor to shut the air compressor off.
Is my Thor's Lightning Hose Kit compatible with the TotalControl Digital Air Manifold?

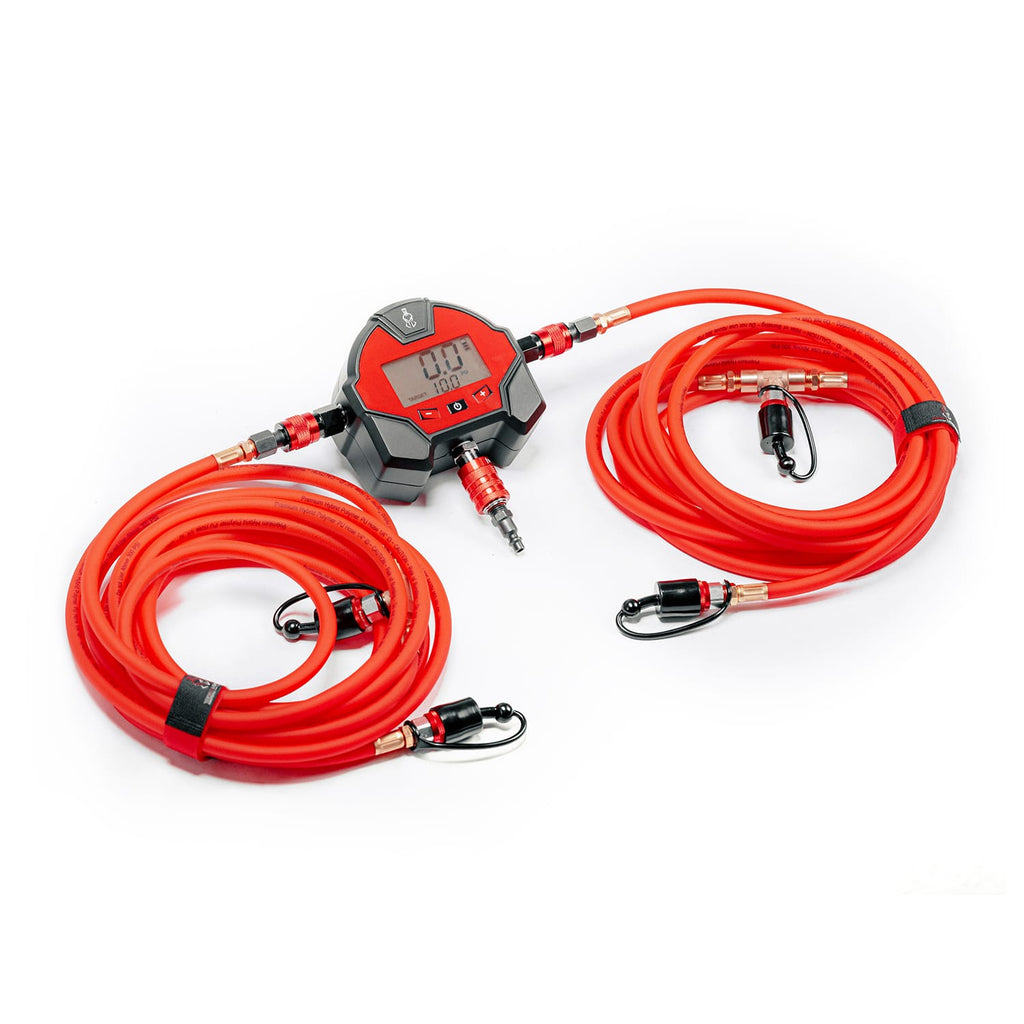

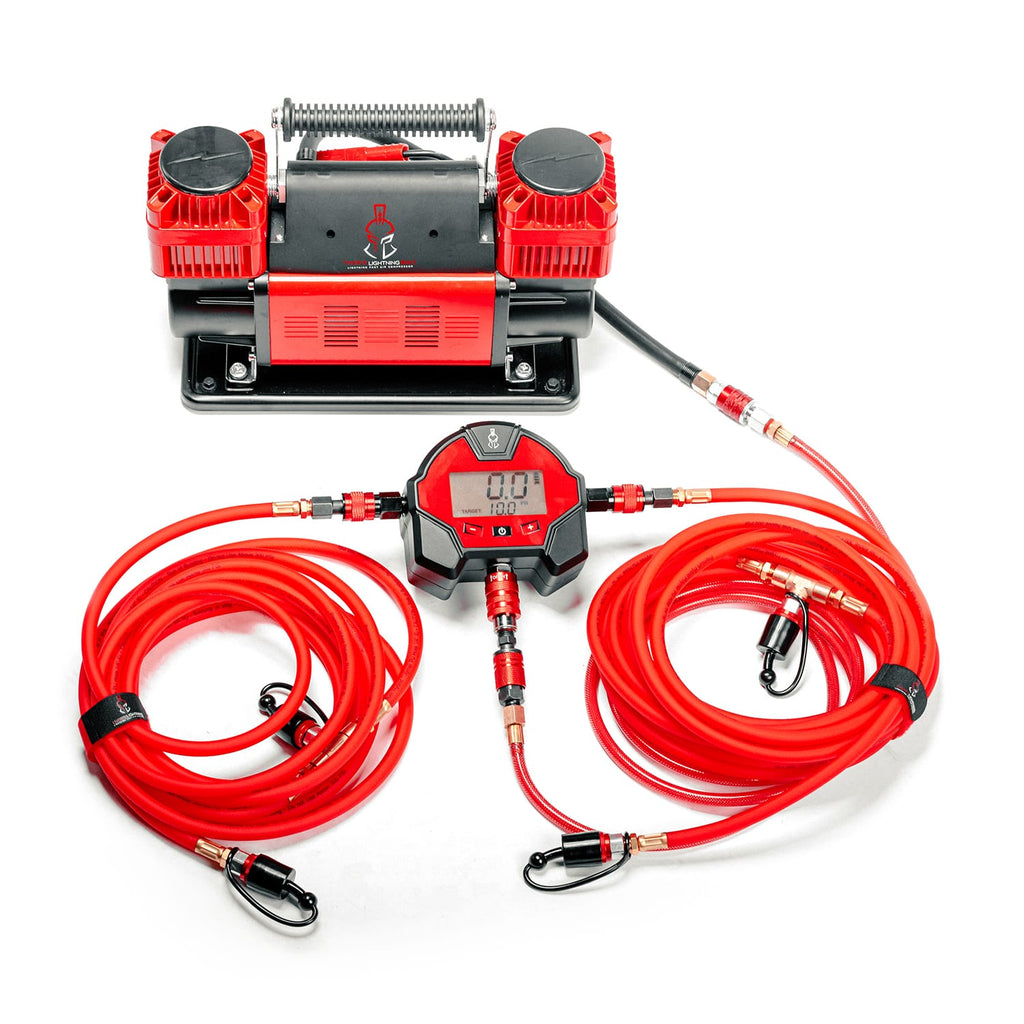

Of course! Just attach your Thor's Lightning AirFlex hoses to the TotalControl Air Manifold using the quick disconnect fittings, and you are all set for inflation and deflation of multiple tires at once.

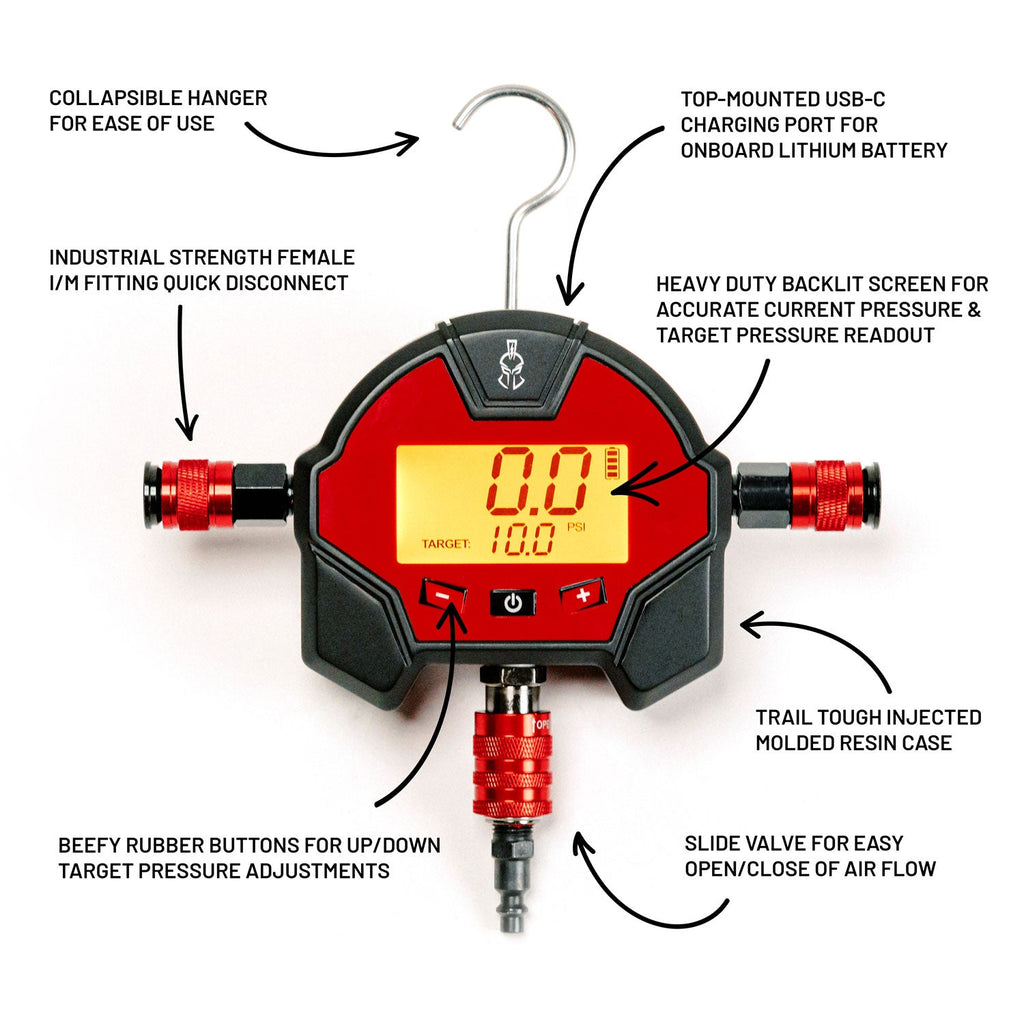

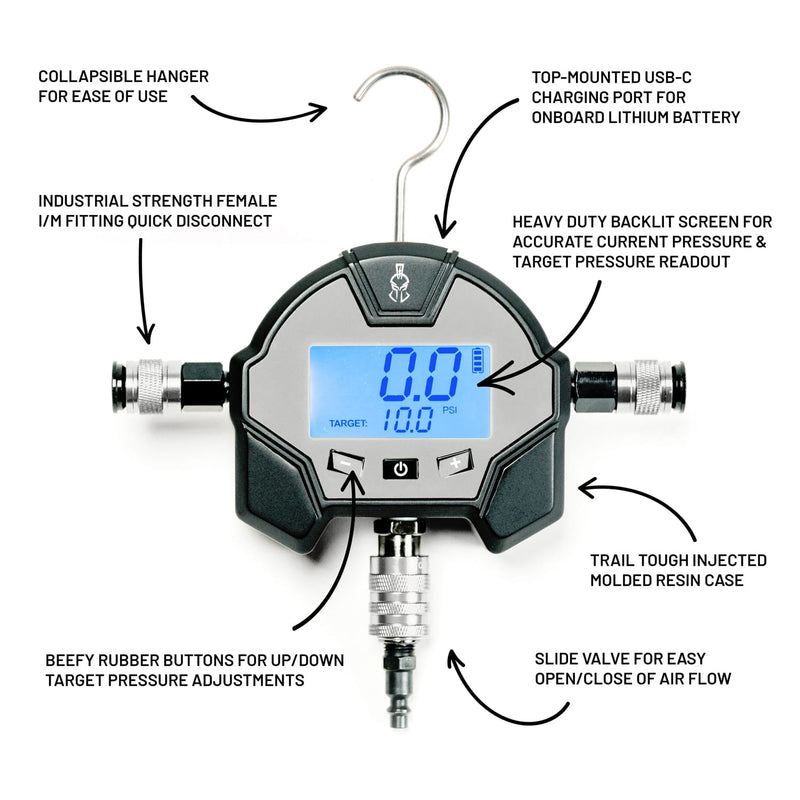

TotalControl Digital Air Manifold Specifications:
- Compatible with any air compressor equipped with a pressure switch (inflation)
- Deflate/Inflate multiple tires at one time
- Equalizes tire pressure of all tires connected to manifold
- Easy to use heavy duty rubber buttons for setting target pressure
- Onboard 15.4V lithium battery with USB-C charging port

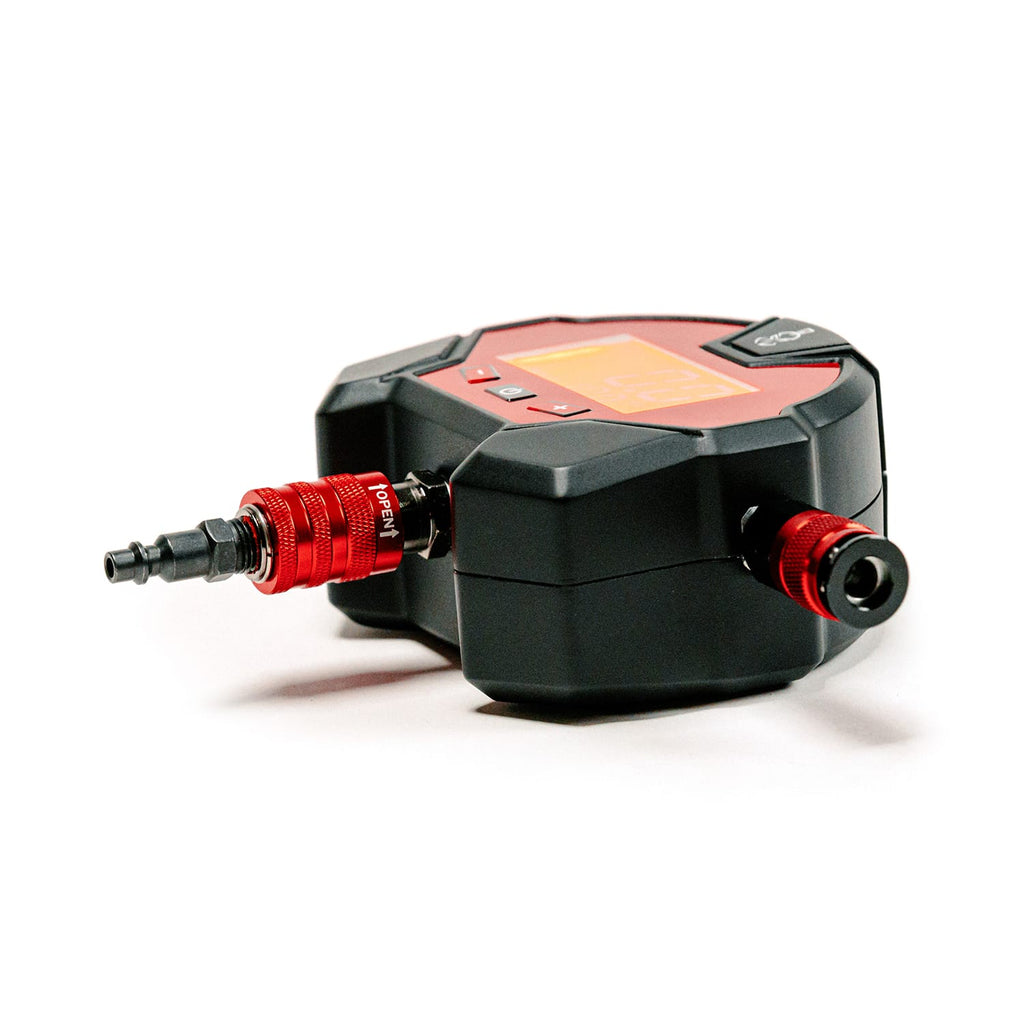

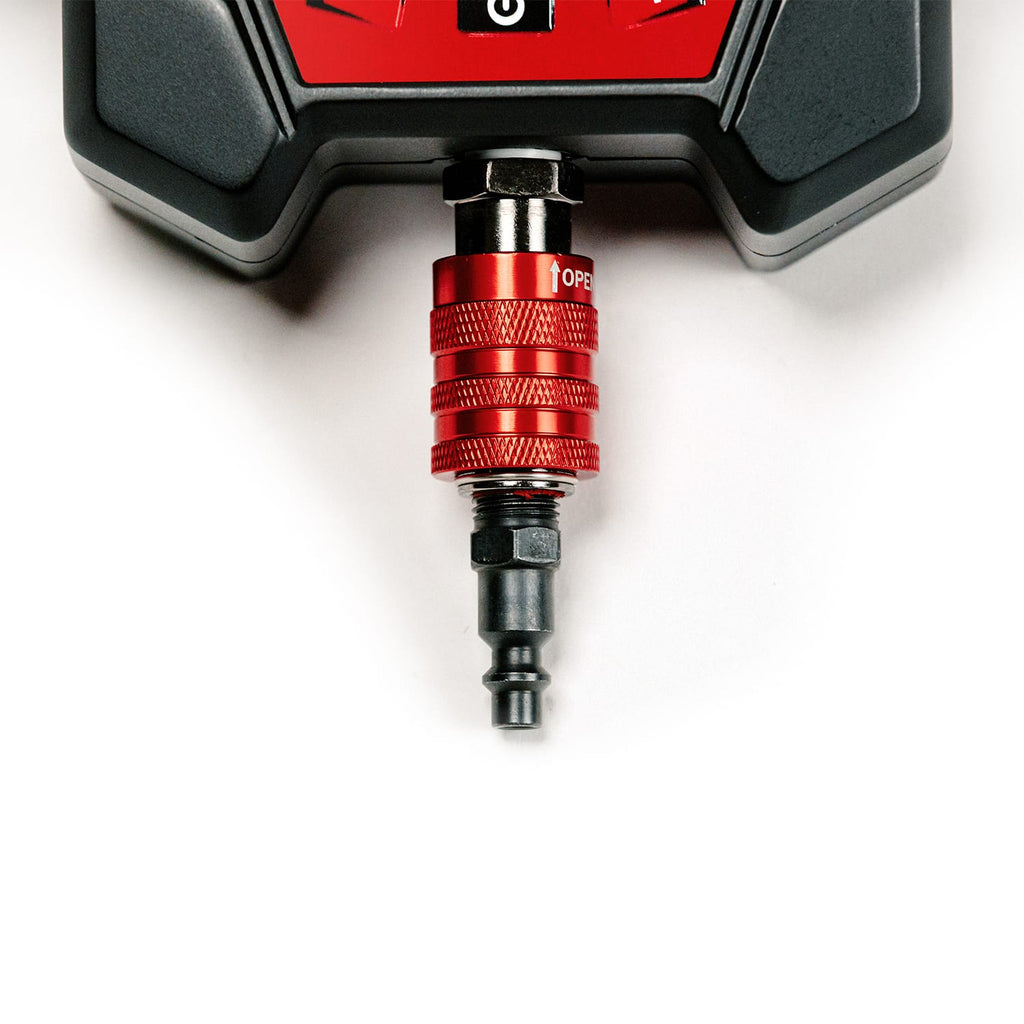

- Heavy duty female I/M (industrial milton) quick disconnect air fittings for protection against leaks and easy air hose connection
- 1 year warranty on lithium battery
- 3 year warranty against manufacturing defects
- Patent-pending design
- Dimensions: 9.5"x8"x2.5"
- Weight: 1.65 lbs.
